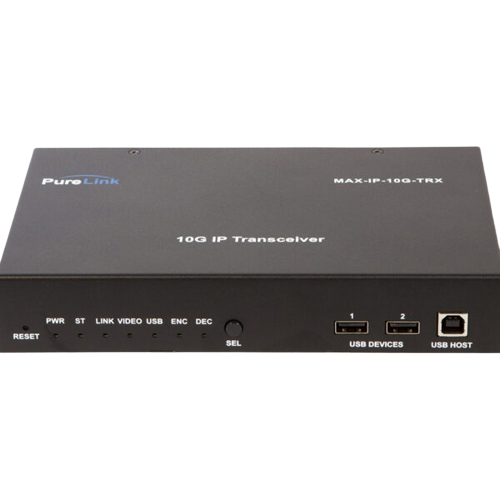

The MAX-IP-TRX  10G Transceiver for Media Axis™ provides integration of 10G Video Over IP and standard matrix switching transport, allowing all AV technologies to work together seamlessly

  • 10G IP Fiber or CAT transport
  • Up to [email protected] (4:4:4)
  • BlueRiver NT+ lossless codec with zero frame latency
  • Combine IP transport with standard matrix switching
  • Allows connectivity of Video, Audio, USB, IR, RS232, and Network distribution

Media Axis' unique design features and technologies come together to deliver the most adaptable, forward-thinking solution:

Purebred2 copy

PureBred™ Design

A wholly transformative platform that allows baseband signals to be distributed beyond its local wired connections, providing maximum scalability and flexibility

AirLift_logo_1

AirLift™ Cooling System

Lateral air flow/direct cooling of matrix powered by modular blade units each composed of eight fans

omni-flex_logo_1

Omni-Flex™

A fully modular and adaptive design with chassis configurations from 20x20 to 216x216 that combines hot-swappable, field upgradeable components with flexible platform-agnostic functionalities

Motore2.0_1

Motore™ 2.0

Full featured 4K/60 4:4:4 media processing and auto-scaling with frame-rate conversion available at every output

iAxis_logo_1

iAxis™

Detachable, front panel tablet control for wireless/mobile command of the Media Axis' matrix and IP switching capabilities from anywhere at anytime

MAX: , 4K60, 4:4:4, seamless, videowall, multiview, multiviewer, matrix, video switcher, HDBaseT, Fiber, 10G, Video over IP, hybrid switch, VIP, Video over IP , 1G, jpg2000, jpeg2000, mjpeg2000, h.264, h.265, network network switch, 4K, KVM , CAT, Fiber , AV over IP,  QSC module, Crestron module. Creston,Matrix switcher, HDMI,Fiber, HDBaseT, SVoE, Aptovision, Semtech, BlueRiver, AV over IP, Video over IP, Extenders, Encoders, Decoders, 3G-SDI, 12G-SDI, Multiview, Seamless, Video Wall, Media Axis, Cross Platform, 4K30, 4K60
Key Features
    • BlueRiver NT+ lossless, zero frame latency codec
    • Up to 8×8 Multiview – any signal type of sources to any signal type of display
    • Up to 8×8 Video Wall capability
    • 4K60 up/down scaling with our exclusive Motore tm scaler
    • 10G CAT or Fiber SFP+ transport
    • Audio embedding/extraction
    • USB/KVM switching/distribution
    • Bidirectional IR
    • RS-232 extensions/distribution
    • Network extension
    • Compatible with 1LC/2LC 10G SFP+ MM or SM module
Performance
Video Support Up to 4096x2160 @60P 4:4:4 HDR
Supported Audio Formats All HDMI 2.0 formats including multi-channel PCM, Dolby True-HD and DTS- HD master audio
HDCP Compliance HDCP 2.2
Power Supply 100-240VAC 50/60Hz
Operating Temperature 32° ~ 117° F (0° to 47° C)
Storage Temperature - 40° ~ 158° F (-40° to 70° C)
Relative Humidity 0 ~ 90% non-condensing
MTBF 50,000 hours
Rack Mounting Option -
Diagnostics Front Panel LEDs, Web UI, API
LATENCY Zero Frame Delay
Transmission Distance 100m(Cat6a)
Transmission Interface 10 Gigabit Ethernet
Compression BlueRiver NT+

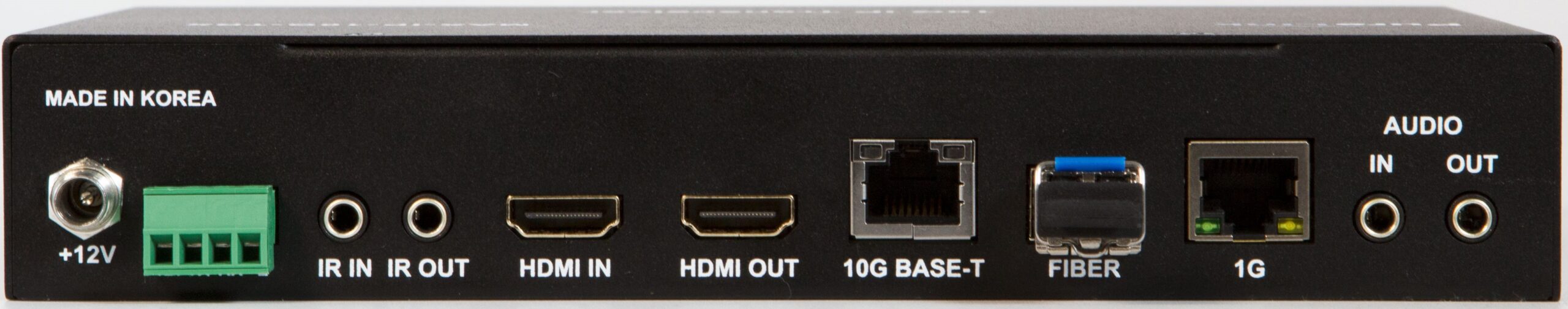

Connections
Connector Type(s)
  • Video Port - 1x HDMI in, 1x HDMI out
  • Network Port - 1x 10G CAT, 1x 10G Fiber SFP+ slot: Audio/Video/Control, 1x 1G Network extension
  • Audio Port - 1x 3.5mm analog stereo in, 1x 3.5mm analog stereo out
  • Control Ports 1x 3.5mm IR in, 1x 3.5mm IR out, 2x USB-A, 1x USB-B 1x RS232 Phoenix
    Enclosure
    Rack Mounting Option -
    PRODUCT DIMENSIONS 12.21 x 7.09 x 2.76 in. (310 x 180 x 70 mm)
    Product Weight 7.7 lbs (3.5 kg)
    Warranty
    Warranty Limited Warranty (3-Years)

    FAQ

    ise-product-highlights-media-axis-news-banner

    MEDIA AXIS™ – THE PUREBRED 21ST CENTURY MATRIX

    Media Axis is the world’s first large-scale matrix switching and extension system supporting Ultra HD/4K60 4:4:4 via Native and IP architectures. With its dynamic, proprietary design features and technologies, Media Axis provides a truly adaptive solution that works where and how you need it ... Learn more about Media Axis

    • How Does Media Axis work?

      Media Axis is the world’s first large-scale matrix switching and extension system supporting Ultra HD/4K60 4:4:4 via Native and IP architectures. With its dynamic, proprietary design features and technology

    • What features does Media Axis™ provide?

      1.PureBred Design
      A wholly transformative platform that distributes Ultra HD via both native and IP architectures interchangeably

      2.Motore 2.0
      Full featured 4K/60 4:4:4 media processing and auto-scaling with frame rate conversion available at every output.

      3. iAxis
      Detachable, front panel tablet control allowing mobile/wireless command of Media Axis’ switching capabilities.

      4.Omni-Flex
      A fully modular, adaptive, and scalable design that offers field upgradeable components including hot-swappable I/O cards, MCU, AirLift cooling units, and power supplies

    • What extension types are available with Media Axis™?

      Media Axis offers HDBaseT, Fiber, and AV over IP transport, all supporting 4K60 4:4:4

      To see all of these options, click below:

      HDBaseT Extender products:

      Receiver
      Transmitter

      Fiber Extender products:

      Receiver
      Transmitter

      AV over IP Extender products:

      Transceiver

    • What frame sizes are available for Media Axis™?

      20 x 20
      36 x 36
      72 x 72
      144 x 144
      216 x 216

      To see frames Click here

    • What applications is Media Axis™ appropriate for?

      Media Axis technology has become the preferred technology in any application or market, from home entertainment to large building distribution, to cross continent transport.

      Corporate Enterprise
      Education
      Healthcare
      Military
      Government & Emergency
      Entertainment & Broadcast
      Information Technology
      House of Worship
      Digital Signage
      Utilities & Transportation
      Hospitality & Luxury Transportation

      Contact us now to help you get started on your Media Axis project, or just ask us general questions.  Click on our Live Chat icon in the bottom right of this page, or call us at 201-488-3232, or email us at [email protected]

    • How to buy?

      Contact us now to help you get started on your Media Axis project, or just ask us general questions.  Click on our Live Chat icon in the bottom right of this page, or call us at 201-488-3232, or email us at [email protected]
