The VIP-NET 10G Series of A/V over IP network switches provides flexible CAT and Fiber connectivity based on a new generation of PureStream IP Video solutions. Along with IGMP snooping, Jumbo Frame, VLAN, and L2+ management, the 10G Series allows multiple units to be interconnected using the optional 10G slot card to create A/V matrix systems. The VIP-NET Series 10G switches are purpose-built to provide effective 10G connections to 10G-capable servers and NAS (Network Attached Storage) systems, working reliably with PureLink’s various VIP transmitter (encoders) and receivers (decoders).

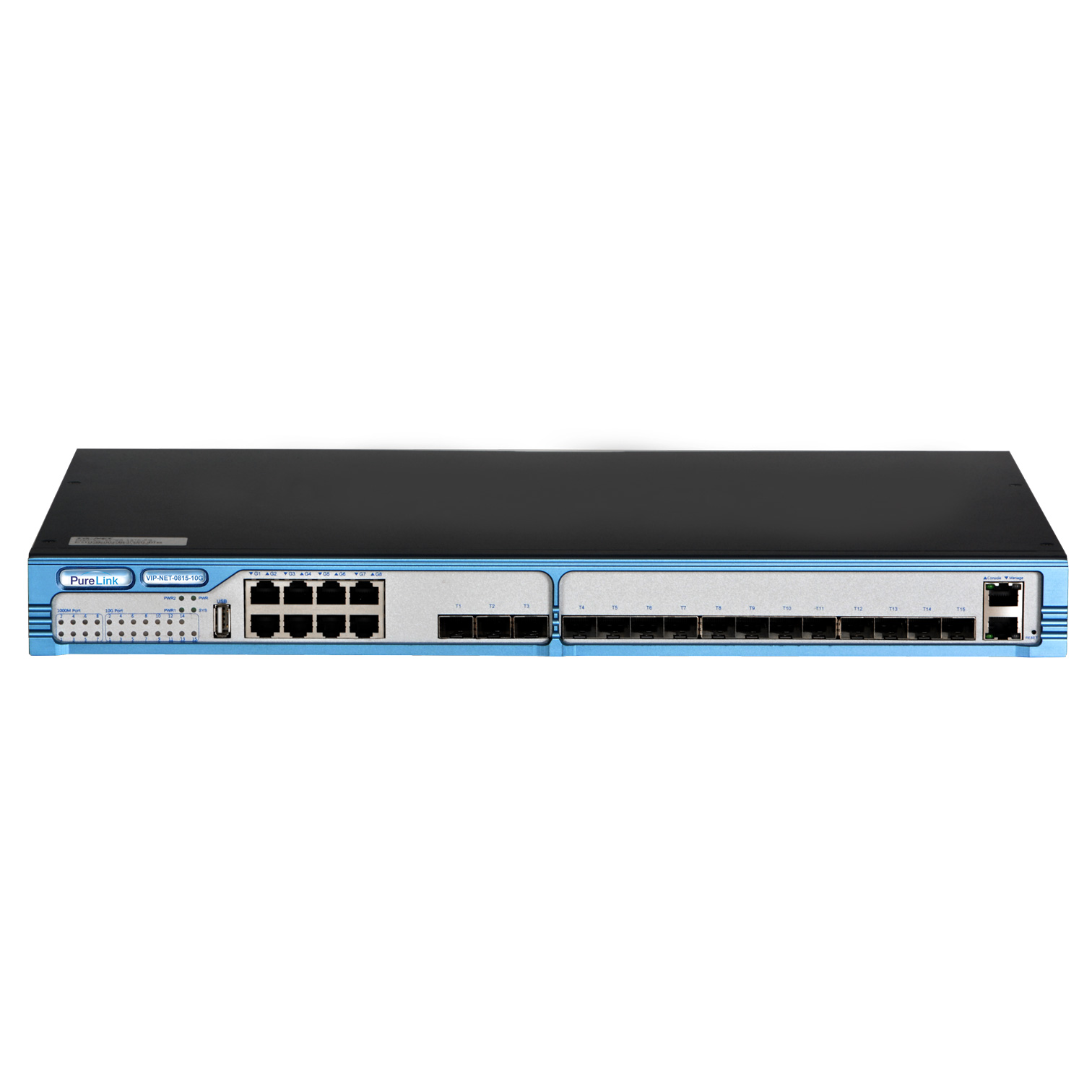

The VIP-NET-0815-10G is a 10-Gigabit network switch with (8) 1000Base-T and (15) dedicated 1000Base-X SFP+ fiber ports designed for use with PureStream IP Video solutions to provide simple and flexible network management. The VIP-NET-0815-10G combines many important features for reliable A/V over IP distribution including, IGMP, Jumbo Frame, VLAN, as well as the ability to link multiple switches.

Key Features
    • Purpose designed switches for high reliability and performance AV over IP systems
    • Various port types and flexible port expansion
    • 15 x 10G SFP+ ports, 8 x 1000Base-T CAT ports
    • L3 management, QoS with ARP learning, DHCP snooping, VLAN, IGMP, Jumbo Frame and more
    • Wirespeed replication of multicast packets
    • SNMP, RMON, Web NMS, and Telnet
    • Dual redundant, swappable power supplies
General Specifications
Switching Capacity 320Gbps
Packet Forwarding Capacity 238Mpps
Operating Temperature 0℃–50℃
Relative Humidity 5%–95% (non-condensing)
Product Dimensions 444(L)×425(W)×44.5(H)mm
Product Weight <8Kg
Warranty Limited Warranty (3-Years)
VIP-NET-0815-10G_Product Sheet
1.0 05-19-2020 Download 445 KB
