3G/HD-SDI to HDMI Format Converter
This product has been discontinued.

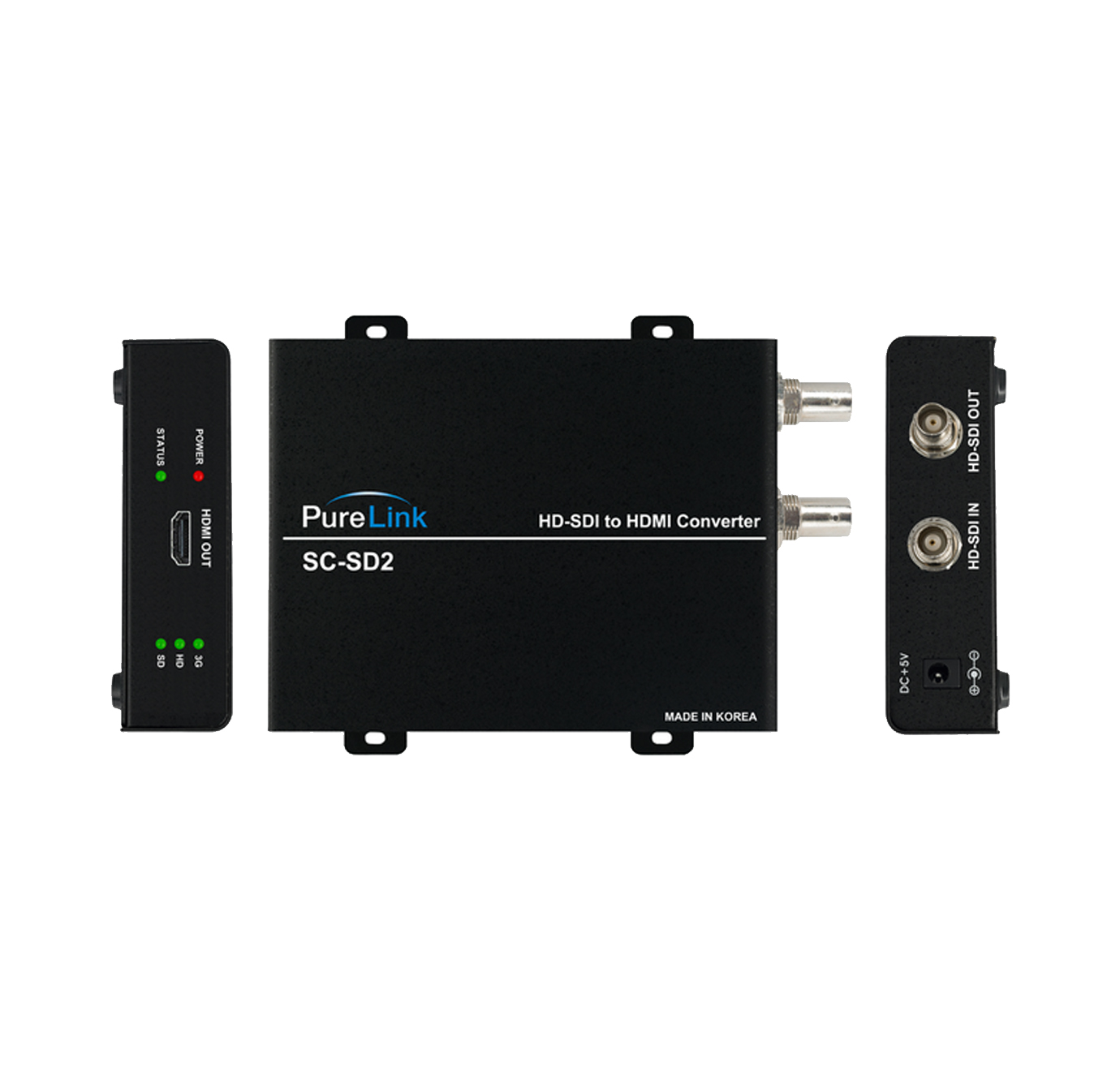

PureLink’s breakthrough 3G SC-SD 2 converts 3G-SDI to DVI/HDMI. The new interface consists of a single 3Gbit serial link, and is standardized in SMPTE 424M for up to Dual Link 3G-SDI. The new SC-SD 2 can now support up to 1080p native resolution. Field tests by several broad stations in Southeast Asia over the past year have confirmed the SC-SD 2’s reliability and compatibility with existing platforms. (Not HDCP Compliant)
PureLink’s breakthrough 3G SC-SD 2 converts 3G-SDI to DVI/HDMI. The new interface consists of a single 3Gbit serial link, and is standardized in SMPTE 424M for up to Dual Link 3G-SDI. The new SC-SD 2 can now support up to 1080p native resolution. Field tests by several broad stations in Southeast Asia over the past year have confirmed the SC-SD 2’s reliability and compatibility with existing platforms. (Not HDCP Compliant)
| Input Signal Type(s) | HD-SDI |
| Output Signal Type(s) | DVI/HDMI |
| Video input format | YCbCr(422) |
| Video output format | RGB (444), YCbCR (444), YCbCr (422) |
| Supported Audio Formats | Data format - 12S / Sampling rate - 48 kHz |
| main power | +5V DC toggle switch on/off |
| Output Type(s) | SMPTE format YCbCr (4:2:2) |
| Connector Type(s) | HDMI female type |
| DVI-D Connector | DVI-I 29 pin female type |
| Output Type(s) | SMPTE format YCbCr (4:2:2) |
| Product Dimensions | 4.6inch x 4.1inch x 1.3inch |
| Product weight | 1lbs |
| Warranty | Limited Warranty (3-Years) |
