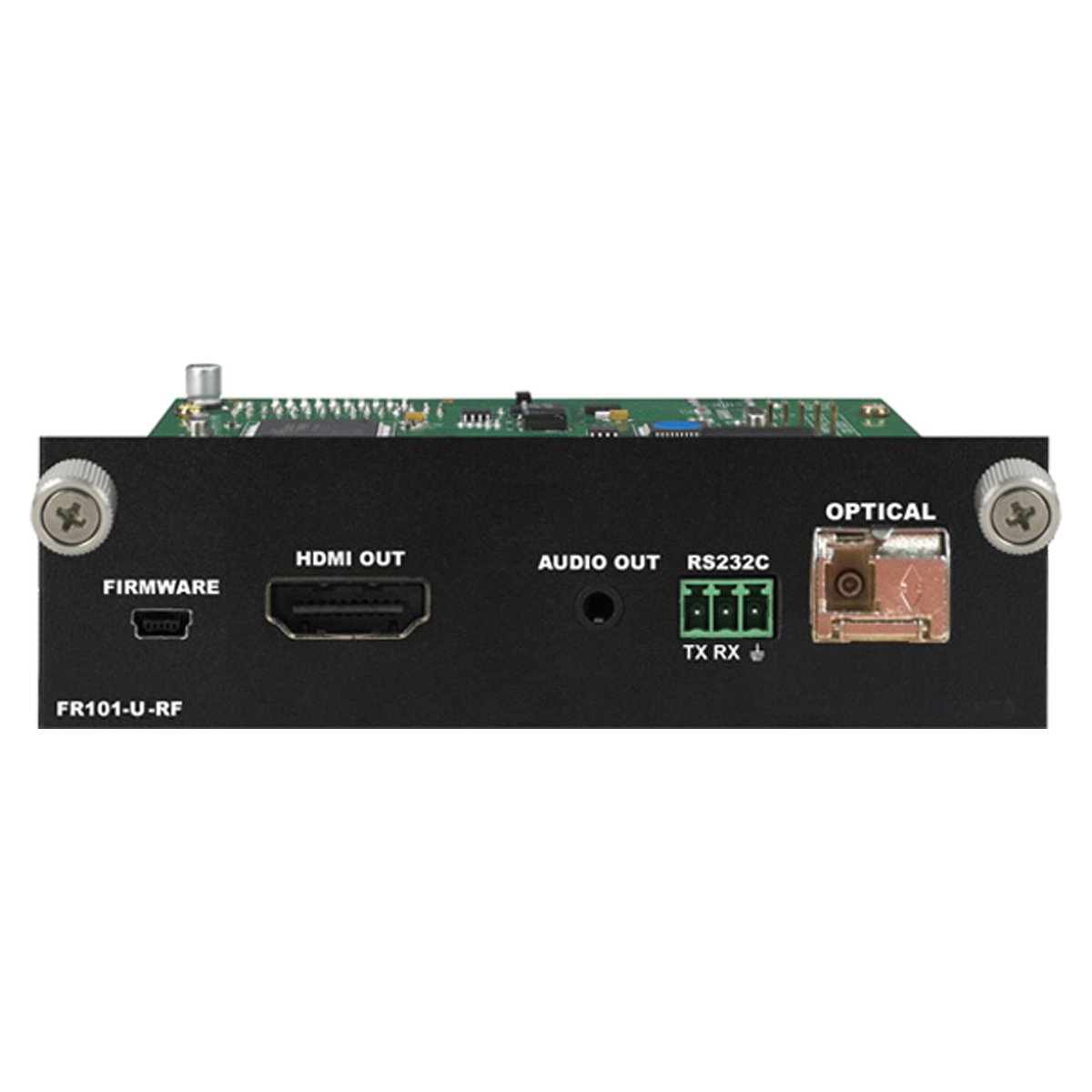

The PM-FR101-U-RF is a PureMediaTM Fiber Optic extender receiver designed for use with the RF4-U Rack-Mount Extension Center. The PM-FR101-U-RF o ers powerful and reliable long-distance extension of Ultra HD/4K video, embedded and analog stereo audio, as well as control signals up to 32,808 ft. (10 km) over a single-mode ber optic cable.

Key Features
    • Extends uncompressed digital video, audio, and control signals over ber
    • Supports resolutions up to Ultra HD/4K
      -10 km. (32,800 ft.) over single-mode ber -500 m. (1,650 ft.) over multi-mode ber
    • HDCP compliant
    • RS-232 control
    • Compatible with the PureMediaTM matrix switcher beroutputs (PM-FOS4-U)
    • Compatible with DVI display devices (adapter required)
Connections.
Connector Type(s) DVI 29P/HDMI 19P Female (x 1)
3.5mm Stereo Jack
1 LC Optical Connector
3P /3.5MM Terminal Block (for Power)
3P /3.5MM Terminal Block (for RS-232)
Mini USB (for firmware update)
Performance
Supported Distance
  • Single Mode Fiber: 1920 x 1200 @ 60Hz or at 1080p, Ultra HD 4K : 32,808 ft (10km)
  • Multi Mode Fiber: 1920 x 1200 @ 60Hz or at 1080p, Ultra HD 4K : 1,650 ft (500m)
  • Supported Resolutions Up to 3840 x 2160 @24/25/30Hz (RGB 4:4:4, YCbCr 4:4:4, 4:2:2, 4:2:0)
    Data Transfer Rate 3.4 Gbps/ch, Total 10.2 Gbps Max
    Power Consumption DC +12V, 4Watts Max
    Power Supply 100-240VAC 50/60Hz
    Operating Temperature 32° ~ 117° F (0° to 47° C)
    Storage Temperature - 40° ~ 158° F (-40° to 70° C)
    Relative Humidity 0 ~ 90% non-condensing
    MTBF 50,000 hours
    Supported Format DVI 1.0 , HDMI 1.4b, HDCP 2.0
    Enclosure
    Product Dimensions 5.31” x 1.31” x 4.5” (134.93 x 33.33 x 114.3 mm)
    Product Weight 0.5 lbs ( 226.79g)
    Product Dimensions 12.21 x 7.09 x 2.76 in. (310 x 180 x 70 mm)
    Product Weight 7.7 lbs (3.5 kg)
    Warranty
    Warranty Limited Warranty (3-Years)
