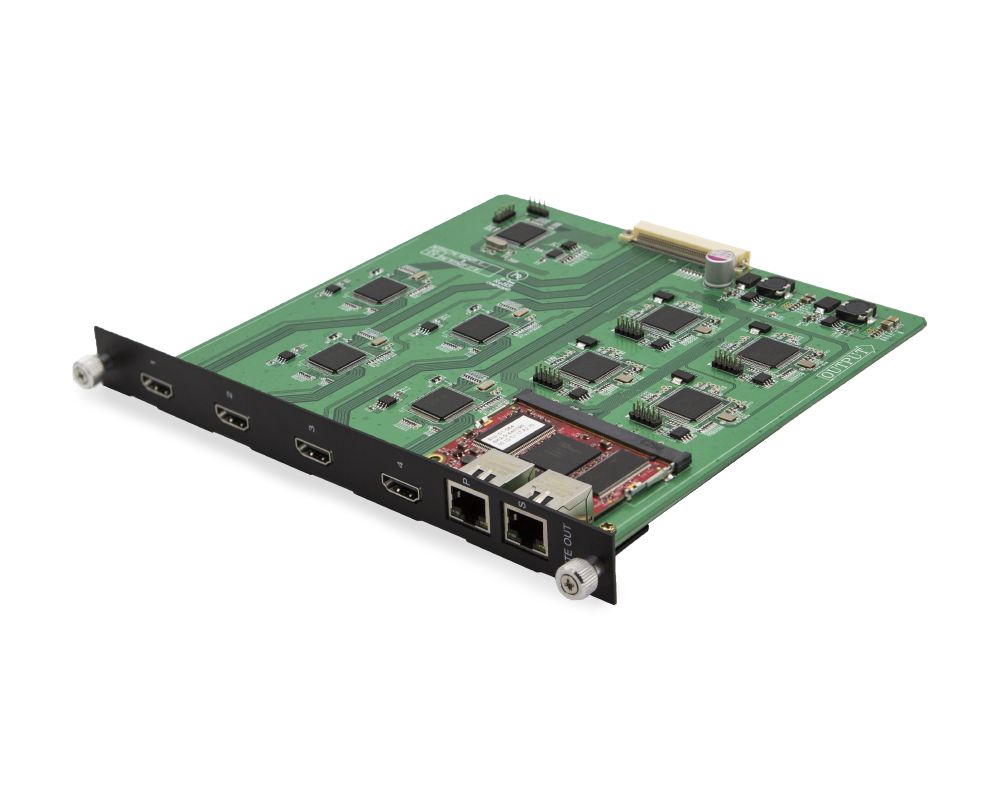

The MAX-AO-DA is a Dante™ Audio with HDMI 2.0 ports output card for Media Axis™ supporting 4K/60 4:4:4 resolutions and Dante™/AES67 IP audio. Each MAX-AO-DA has primary and secondary RJ-45 ports for IP audio and four HDMI ports.

Media Axis' unique design features and technologies come together to deliver the most adaptable, forward-thinking solution:

Purebred2 copy

PureBred™ Design

A wholly transformative platform that allows baseband signals to be distributed beyond its local wired connections, providing maximum scalability and flexibility

AirLift_logo_1

AirLift™ Cooling System

Lateral air flow/direct cooling of matrix powered by modular blade units each composed of eight fans

omni-flex_logo_1

Omni-Flex™

A fully modular and adaptive design with chassis configurations from 20x20 to 216x216 that combines hot-swappable, field upgradeable components with flexible platform-agnostic functionalities

Motore2.0_1

Motore™ 2.0

Full featured 4K/60 4:4:4 media processing and auto-scaling with frame-rate conversion available at every output

iAxis_logo_1

iAxis™

Detachable, front panel tablet control for wireless/mobile command of the Media Axis' matrix and IP switching capabilities from anywhere at anytime

MAX: , 4K60, 4:4:4, seamless, videowall, multiview, multiviewer, matrix, video switcher, HDBaseT, Fiber, 10G, Video over IP, hybrid switch, VIP, Video over IP , 1G, jpg2000, jpeg2000, mjpeg2000, h.264, h.265, network network switch, 4K, KVM , CAT, Fiber , AV over IP,  QSC module, Crestron module. Creston,Matrix switcher, HDMI,Fiber, HDBaseT, SVoE, Aptovision, Semtech, BlueRiver, AV over IP, Video over IP, Extenders, Encoders, Decoders, 3G-SDI, 12G-SDI, Multiview, Seamless, Video Wall, Media Axis, Cross Platform, 4K30, 4K60
Key Features
    • Dante or AES67 selectable via software
    • Primary and secondary IP Audio ports
    • Selectable IP audio latency
    • Four HDMI ports
    • Supports up to 4K 60Hz 4:4:4 resolutions
Technical Specifications
Connector Types (4) Female HDMI Type A outputs
(2) RJ-45 ports (primary and secondary IP audio connections)
Digital Audio Formats LPCM up to 7.1, Dolby Digital 5.1, Dolby Digital Plus,
Dolby TrueHD, DTS-HD, DTS-HD Master Audio
Operation Standard HDMI 2.0
Maximum Resolution Up to 4K @ 60Hz 4:4:4
HDCP Compatible HDCP 2.2
Single Board Weight 1 lbs. (0.45 kg)
Maximum Pixel Clock 300MHz
Equalization Auto
IP Audio Transmitter Type Dante™/AES67, Software Selectable
IP Output Channel HDMI Audio 32 channel
IP Audio Format Uncompressed, 24bit, 48KHz
IP Audio Latency Selectable, 0.25ms, 0.5ms, 1.0ms, 2.0ms, 5.0ms
