4K Dante Audio w/ HDMI Output Card for PM Switchers
SKU: PM-HOS4-DA-U- Dante or AES67 selectable via software
- Primary and secondary IP Audio ports
- Selectable IP audio latency
- Four HDMI ports
- Supports up to 3840 x 2160 @ 30Hz resolutions

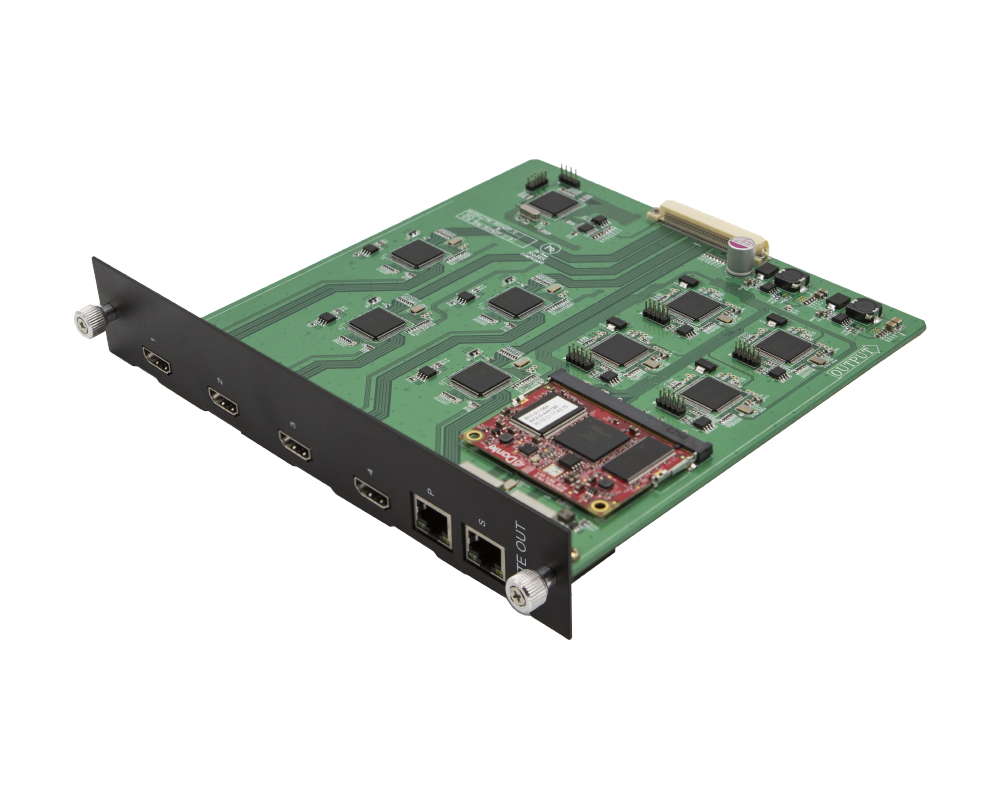

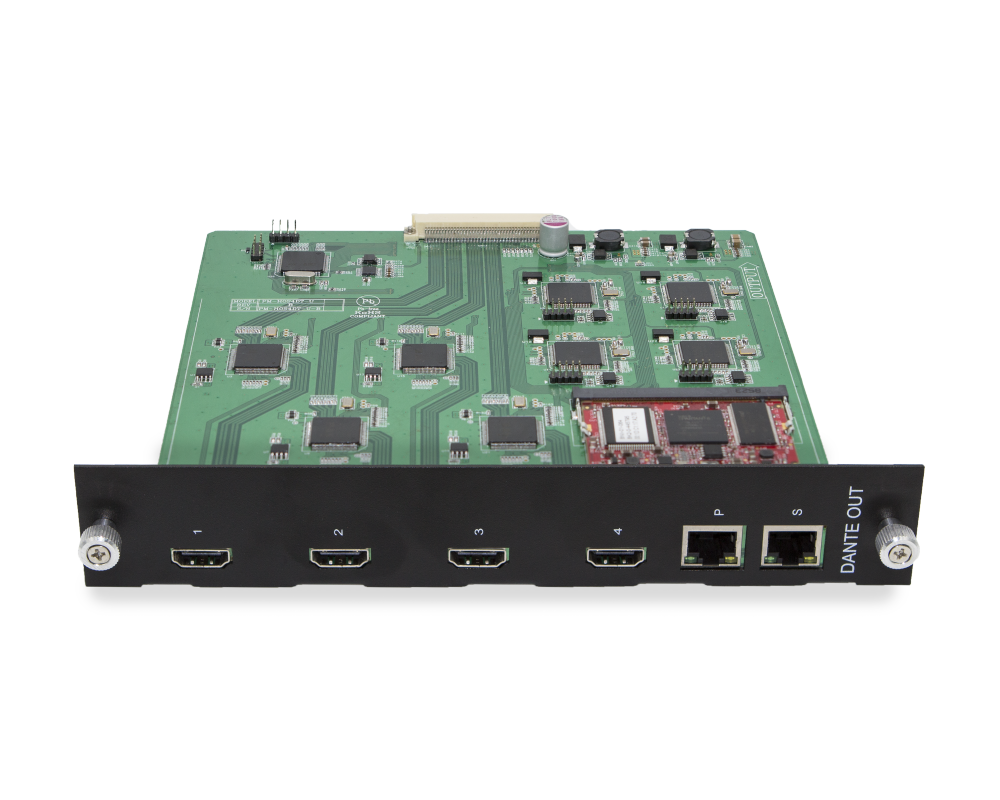

The PM-HOS4-DA-U is a Dante Audio with HDMI ports output board for PureMedia™ matrix switchers supporting UltraHD/4K resolutions and Dante/AES67 IP audio. Each PM-HOS4-DA-U has primary and secondary RJ-45 ports for IP audio and four HDMI ports.
- Dante or AES67 selectable via software
- Primary and secondary IP Audio ports
- Selectable IP audio latency
- Four HDMI ports
- Supports up to 3840 x 2160 @ 30Hz resolutions
Technical Specifications
| Connector Types | (4) Female HDMI Type A outputs |
| Digital Audio Formats | LPCM 8 Channel |
| Operation Standard | DVI 1.0, HDMI 1.4 |
| Maximum Resolution | Up to 3840 x 2160 @ 30Hz |
| HDCP Compatible | HDCP 2.0 |
| Single Board Weight | 1 lb. (0.45 kg) |
| Maximum Pixel Clock | 300MHz |
| Equalization | Auto |
| IP Audio Transmitter Type | Dante/AES67, Software Selectable |
| IP Output Channel | HDMI Audio 32 channel |
| IP Audio Format | Uncompressed, 24bit, 48KHz |
| IP Audio Latency | Selectable, 0.25ms, 0.5ms, 1.0ms, 2.0ms, 5.0ms |
