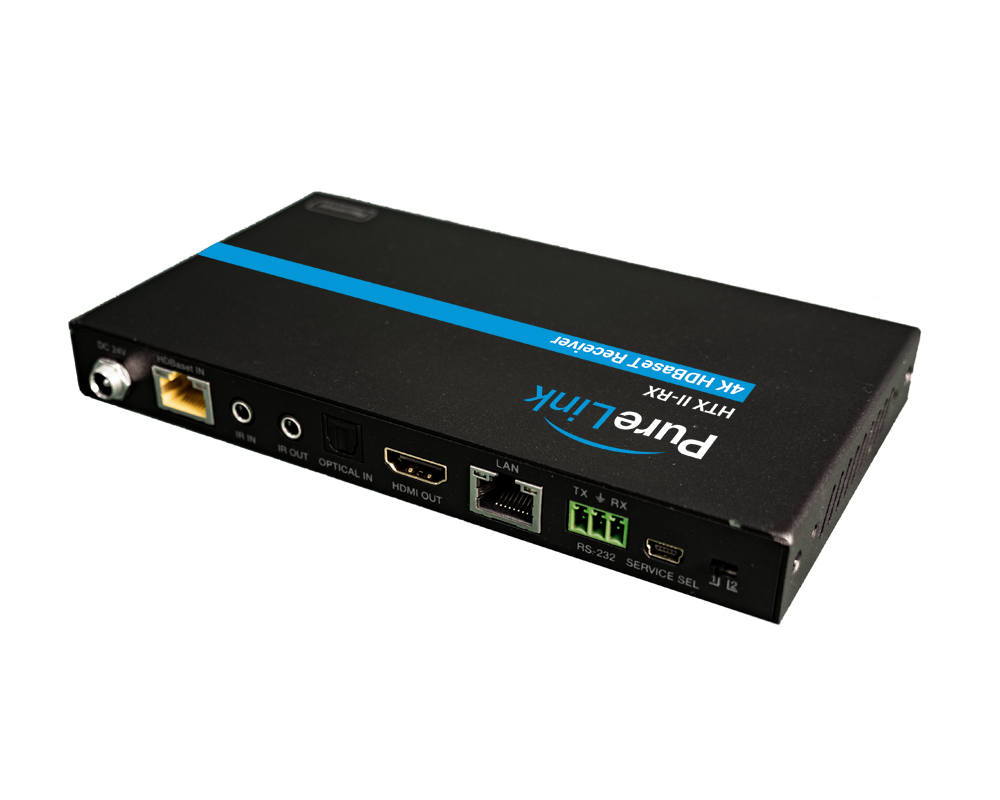

The HTX II-RX is designed for use with the HTX II-8800 Matrix Switcher to extend 4K/60 4:4:4 video, audio, ethernet, two-way IR, RS-232, and ARC (Audio Return Channel) signals up to 330 ft. (100m). The ARC function enables audio from a compatible display to be routed back from the HTX II-RX to the HTX II matrix. Using PoE technology, the HTX II-RX can draw power directly from the HTX II-8800, eliminating the need for additional power supplies.

Key Features
    • HDMI 2.0b, HDCP 2.2 and HDCP 1.4 compliant
    • Supports video resolutions up to 4K/60 4:4:4
    • Supports audio up to 7.1 channels of High Definition audio pass through
    • Up to 330ft (100m) HDBaseT™ transmission distance
    • Video, audio, IR, RS-232, ethernet, and PoE over a single cable
    • ARC and CEC supported
Performance
Supported Distance 330 ft. (100 m)
Supported Resolutions up to 4K@50/60Hz (4:4:4)
Data Transfer Rate 18 Gbps
Color Space RGB/YCbCr 4:4:4, YCbCr 4:2:2
Color Depth 8-bit 10-bit 12-bit
Compliance HDMI 2.0b, HDCP 2.2/1.4
Supported HDMI Audio Formats LPCM 2/5.1/7.1 CH, Dolby Digital, DTS 5.1, Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
Control Options RS-232, IR
Power Consumption 11 Watts (max)
Power Supply Input: AC100 – 240V 50/60Hz | Output: DC 24V/1A (US/EU standards, CE/FCC/UL certified)
Operating Temperature 32° ~ 104° F (0° to 40° C)
Storage Temperature - 4° ~ 148° F (-20° to 60°C)
Relative Humidity 20 ~ 90% non-condensing
MTBF 50,000 hours
Rack Mounting Option Standard 19 inch rack-mountable design
Video output format (1) HDMI Type A [19-pin female], (1) IR [3.5mm Stereo Mini-jack], (1) LAN [RJ45]
Enclosure
Enclosure Type All metal, black powder coat finish
Rack Mounting Option Standard 19 inch rack-mountable design
Product Dimensions 6.7 x 3.8 x 0.7 in.
Product Weight 0.94 lbs.
Warranty
Warranty Limited Warranty (3-Years)
