4K60/HDCP 2.2 Signal Generator & Analyzer
SKU: HDG Pro- 4K@60Hz 4:4:4 8 bit, 4K@60Hz 4:2:0 16 bit support
- HDR pattern generator & signal analyzer
- Support 18 Gbps bandwidth
- 4.3” touchscreen panel
- Digital audio test function

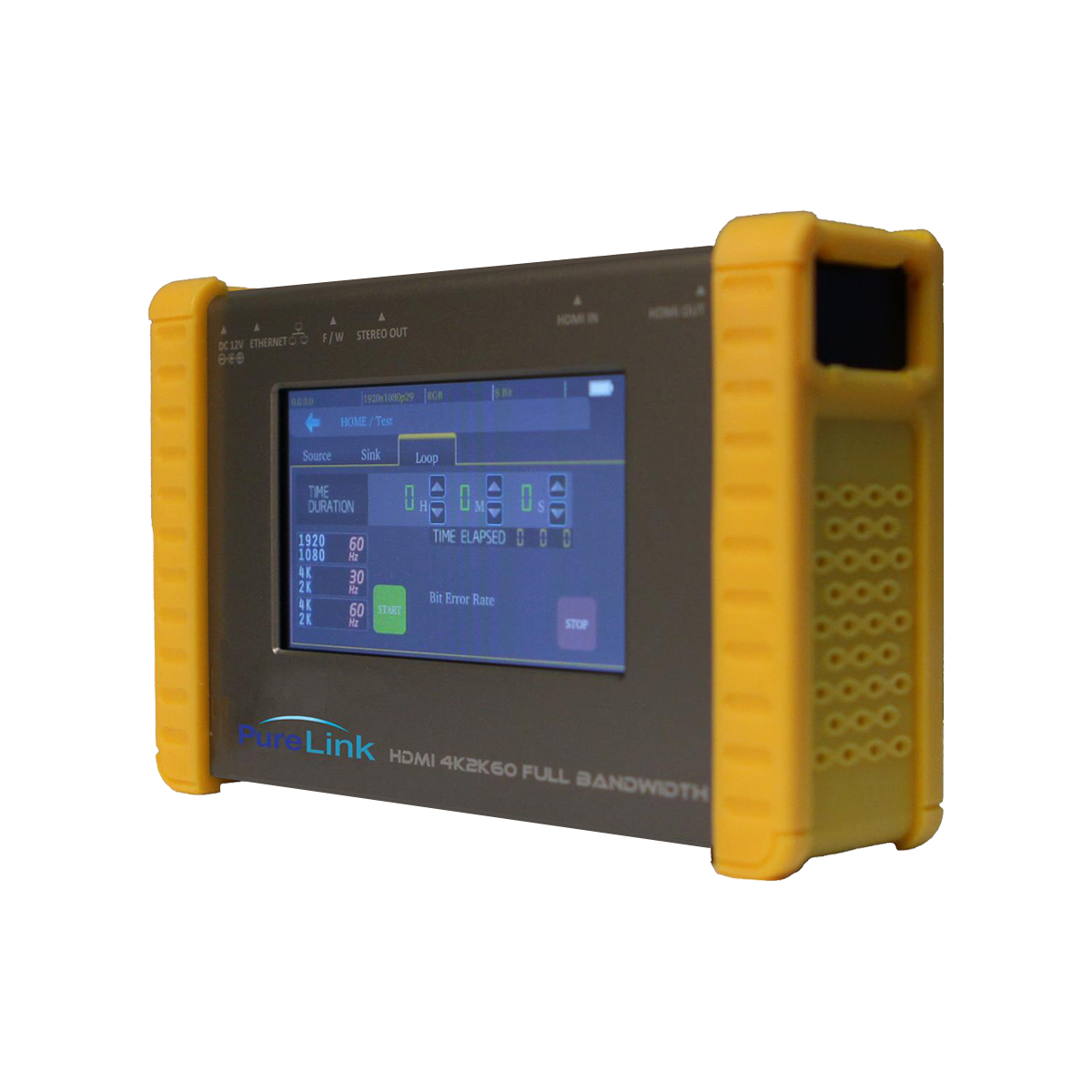

The HDTools™ HDG Pro is an HDMI 2.0 Signal Generator supporting video resolutions up to 4K@60Hz 4:4:4, 18 Gbps bandwidth, and HDCP 2.2. This versatile tool allows integrators and installers to test and verify A/V signal paths with Test Pattern Generator, Signal Analyzer, HDCP Test, EDID Test, and Loop Test functions. The HDG Pro also features a 4.3” touchscreen for controlling the device and viewing the signal from the HDMI input, as well as a 4-hour rechargeable battery providing greater portability and ease of use.
- 4K@60Hz 4:4:4 8 bit, 4K@60Hz 4:2:0 16 bit support
- HDR pattern generator & signal analyzer
- Support 18 Gbps bandwidth
- 4.3” touchscreen panel
- Digital audio test function
- Supports HDMI loop through function
- HDCP test function to verify HDCP source and transmit HDCP encrypted video
- Supports user-defined patterns (up to 2Gb)
- Scrambling function or videos over 340MHz
- Video pass-through mode (analyze the signal and monitor the video at the same time)
- Supports third-party device control via Ethernet/LAN
- Rechargeable battery design (up to 4 hours)
- Firmware update through USB flash drive
General Specifications
| Supported Resolutions | up to 4K@50/60Hz (4:4:4) |
| Compliance | HDMI 2.0, HDCP 2.2/1.4 |
| Color Space | RGB/YCbCr 4:4:4, YCbCr 4:2:2 |
| Color Depth | 8-bit 10-bit 12-bit |
| Power Consumption | Rechargeable battery |
| Power Supply | DC 12V 5A |
| Operating Temperature | 86°F (30°C) or below |
| Relative Humidity | 60% or below RH (non-condensing) |
Connections
| Connector Type(s) | (2) HDMI Type A, (1) RJ-45, (1) USB Type A [firmware], (1) 3.5mm stereo |
Enclosure
| Rack Mounting Option | Standard 19 inch rack-mountable design |
Warranty
| Warranty | Limited Warranty (3-Years) |
