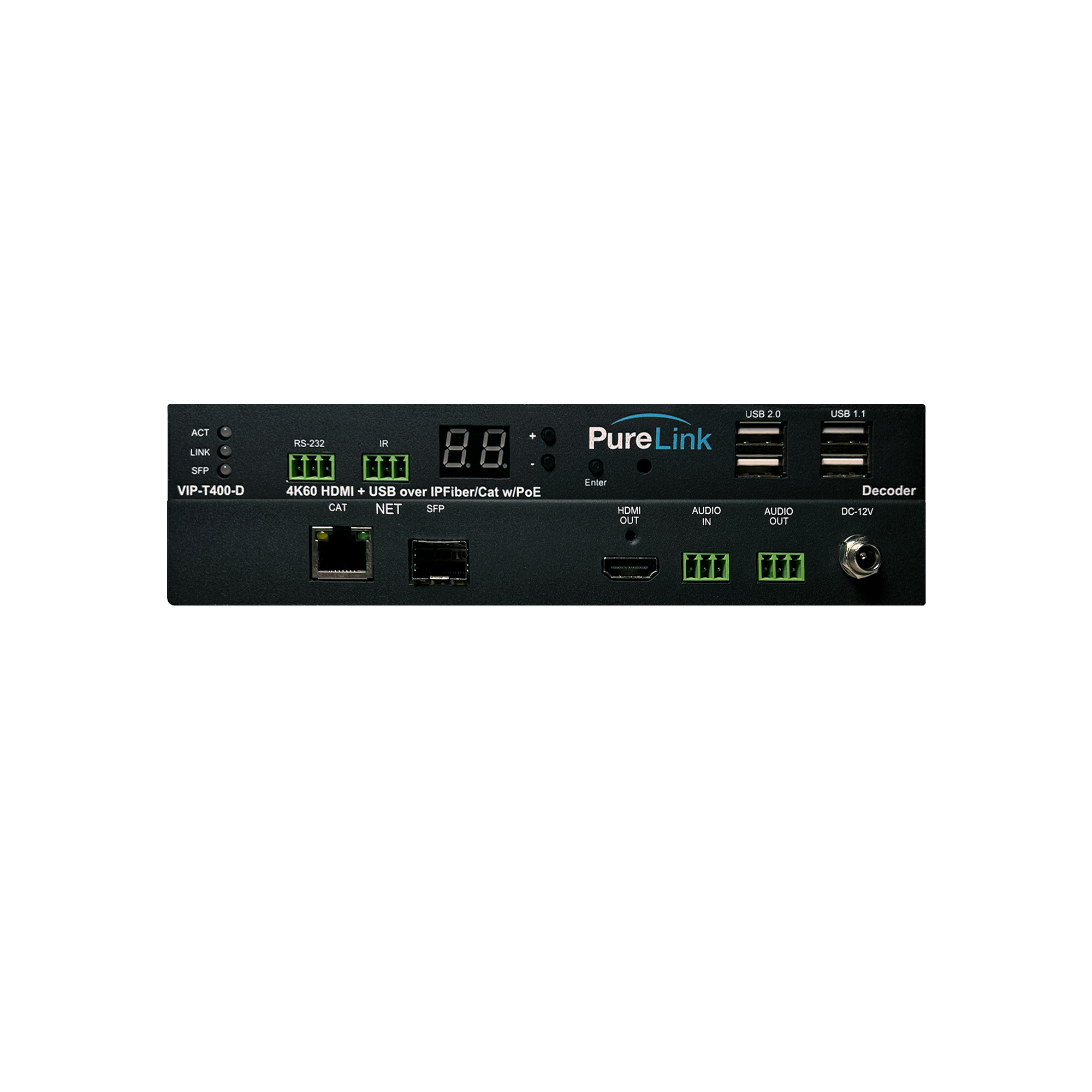

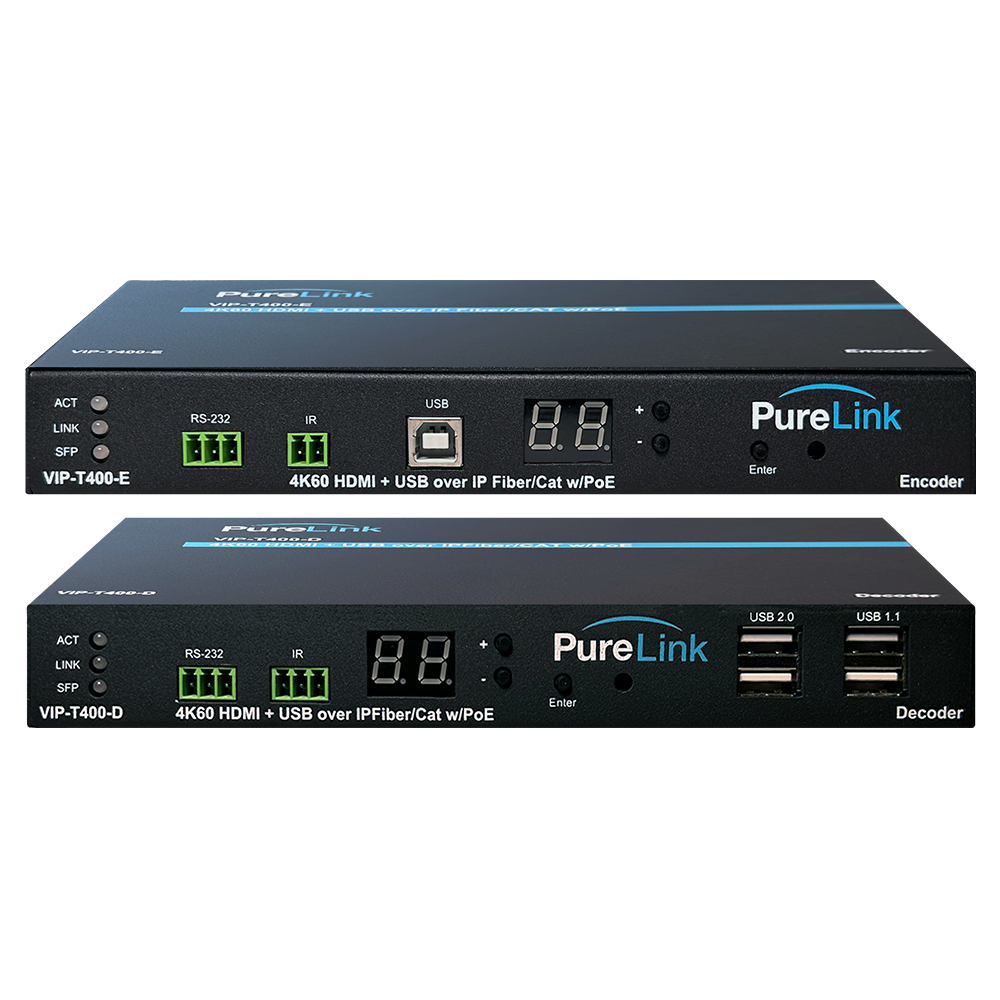

The VIP-EXT-T400-1 4K HDMI & USB/KM CAT and Fiber AV over IP Extender Solution provides UltraHD/4K60 4:4:4 HDR video, audio, RS-232, IR, and USB 1.1, 2.0, and USB camera signal transport over IP networks. The VIP-T400 AV over IP Extender Solution can be used as a point-to-point extension system supporting distances up to 120 meters over CAT6a, and up to 2 kilometers over SFP Single Mode Fiber, and is also compatible with MultiMode SFP for shorter distances. The VIP-T400 is designed to handle multiple signals types for applications that require reliable distribution, switching, matrixing, and layered matrix switching. The VIP-T400 supports audio insertion and extraction. Multiple control options are available including the VIP-T400’s own rich API, PureLink’s VPX IP Video Management Software, and QSC plugin.  Providing complete and reliable AV over IP extension, the VIP-T400 is the ideal solution for your application.   The VIP-T400 is TAA compliant, making it perfect for Government and Military applications and critical viewing 24/7/365 installations.



Supported Distance 120M CAT6a, up to 2Km using SFP Single Mode
Supported Resolutions Up to 4K UHD 4:4:4 @ 60HZ
Compliance HDCP 2.2
Video input format HDMI 2.0
Video output format HDMI 2.0
Supported Audio Formats 5.1 Ch, 7.1 Ch LPCM, 5.1 Ch Dolby, Dolby Pro Logic, DTS, 7.1 Ch Dolby TrueHD, DTS-HD, Dolby Atmos DTS:X
Ir Receiver(Internal) 3 pin mini phoenix
Power Consumption 8.5 Watts
Power Supply DC 12V 1500mA
RS-232 Extension, and access via TCP/IP
IR Extension Bidrectional
PoE (Power Over Ethernet) 802.3af
HDR Support Yes
Data Rate 50-850 Mbps, 300 Mbps typical
Outputs HDMI (1)
Control Ports RS232 - 3 pin mini phoenix, Relay (2) 2 pi mini phoenix, Digital OIO (2) - mini phoenix
Audio Input Type(s) Analog Stereo - 3 pin mini phoenix
Audio Output Type(s) Analog Stereo - 3 pin mini phoenix, SPDIF (ARC)
Ir Receiver(Internal) 3 pin mini phoenix
VPX Software Suite Compatible
OS Compatibility QSC Modules available
Warranty Limited Warranty (3-Years)
