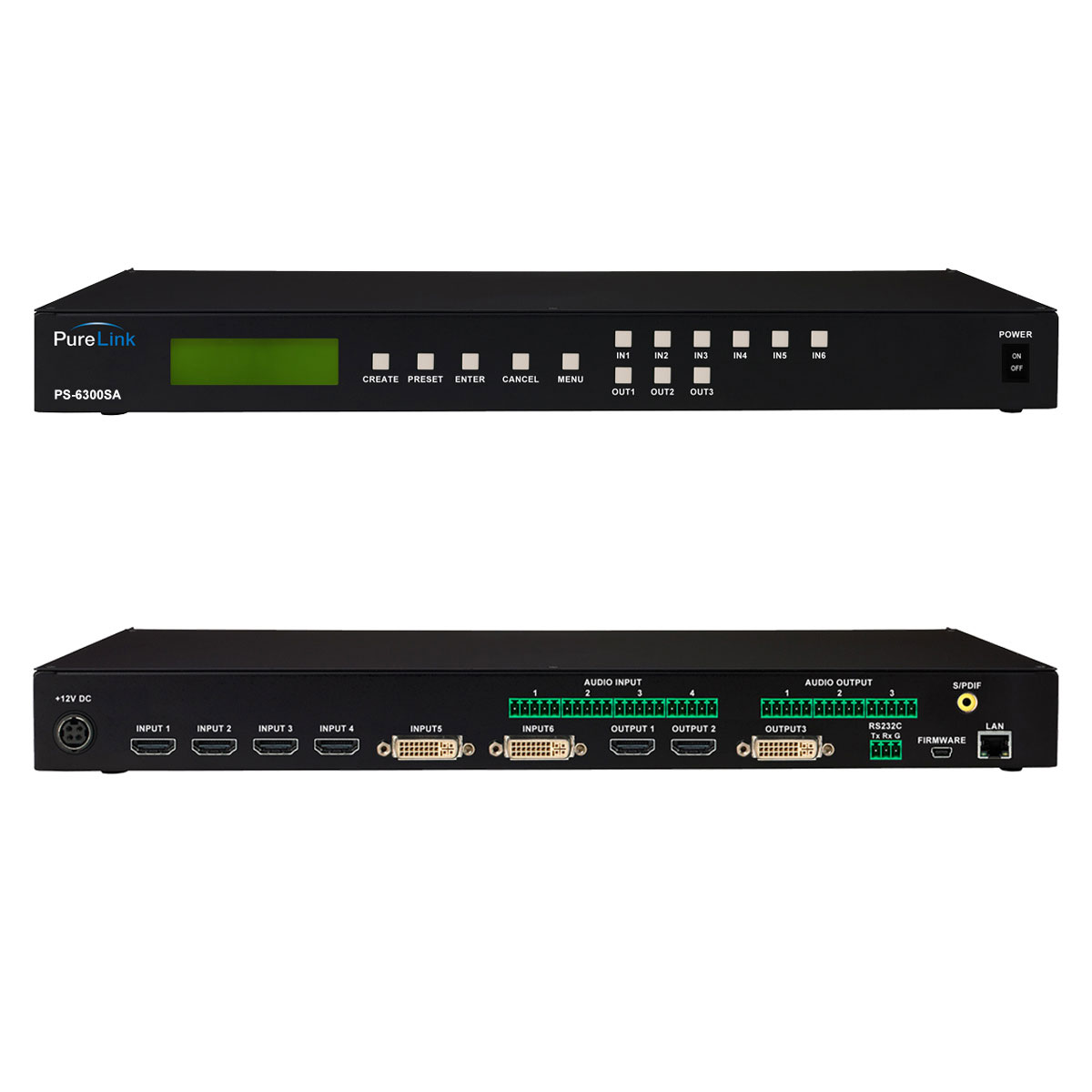

The HDTools™ PS-6300S is an all-in-one,  high-performance presentation switcher featuring a built-in scaling engine for up/downscaling of any video signal, as well as PIP (picture-in-picture) technology, allowing any two video sources to be shown on one display. Together with PureLink’s Don’t Blink™ Seamless Switching Technology at every output, as well as user-friendly configuration and operation, the PS-6300S provides full flexibility and convenience in any multimedia presentation environment.

Key Features
    • All-in-one device – matrix switcher, scaler, analog to digital converter, amplifier, and audio DSP
    • Auto-scaling with Don’t Blink™ Seamless Switching Technology
    • PIP Image Insertion Technology
    • Advanced EDID management
    • RS-232/LAN control
Hardware
Audio Balanced/Un-balanced analog audio; S/PDIF digital audio
Input Signal Type(s) HDMI, DVI
Output Signal Type(s) HDMI, DVI
Performance
Supported Resolutions up to 1080p@60Hz
Compliance HDMI 1.3, DVI 1.0
RS-232 Yes
IR Extension Yes
Power Consumption 60 Watts
Power Supply DC 12V 5A
Operating Temperature 32° ~ 117° F (0° to 47° C)
Storage Temperature - 40° ~ 158° F (-40° to 70° C)
Relative Humidity 0 ~ 90% non-condensing
MTBF 50,000 hours
Rack Mounting Option Standard 19 inch rack-mountable design
Enclosure
Enclosure Type All metal, black powder coat finish
Rack Mounting Option Standard 19 inch rack-mountable design
Product Dimensions 19”(W) x 8.0”(D) x 1.75”(H)
Product Weight 6.7 lbs.
Warranty
Warranty Limited Warranty (3-Years)
