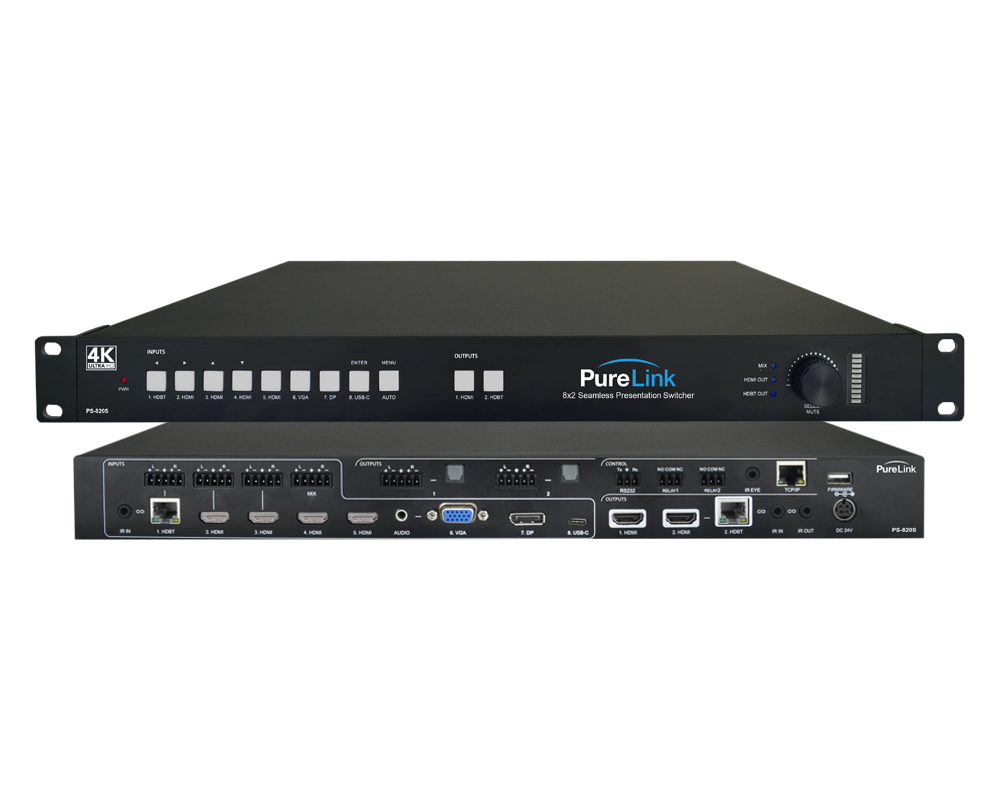

The HDTools™ PS-820S is an 8×2 seamless presentation switcher with 18 Gbps support and true 4K/60 @ 4:4:4 instant switching and individual video scaling for each output buss. The PS-820S features flexible input options including HDMI, HDBaseT, DisplayPort, and USB-C, as well as balanced audio embedding and audio mixing via S/PDIF. Together with convenient control options including relay control, the PS-820S provides a feature-rich solution for conference rooms, home theater, broadcast studios, hotel AV, auditoriums, and staging/rental environments that require seamless 4K/60 video and audio distribution.

Key Features
    • 4K@60Hz 4:4:4 support with Don’t Blink™ Switching Technology
    • (8) inputs including HDBaseT, HDMI, DisplayPort, and USB-C
    • Audio embedding and mixing with volume control via balanced audio inputs
    • HDCP 2.2 compliant
    • Complete EDID management for individual inputs
    • CEC control
    • Proprietary Precis codec for lossless video transmission
    • HDBaseT Distance: 40m@4K and 70m@1080p
    • Auto-switching on HDMI and HDBaseT outputs
    • Audio de-embedding with volume control via balanced analog and S/PDIF audio outputs
    • Local/pass-through IR and RS-232, TCP/IP, relay, CEC and OSD
Performance
Supported Distance [HDBaseT Input/Output] 1080p@60Hz up to 230ft. (70m) | 4K@60Hz up to 131ft. (40m)
Supported Resolutions HDBaseT/HDMI/DP - up to 4K@60Hz 4:4:4 | VGA - up to 1920x1200, 50/60Hz
Video Bandwidth 18 Gbps
Compliance HDMI 2.0, HDCP 2.2
Control Options RS-232, IR, LAN
Power Consumption 85W (max)
Power Supply Input: AC100~240V, 50/60Hz | Output: 24V DC6A
Operating Temperature 14°F ~ 131° F (-10°C to 55° C)
Storage Temperature -13°F ~ 158° F (-25°C to 70°C)
Relative Humidity 10~90% non-condensing
MTBF 50,000 hours
Rack Mounting Option Standard 19 inch rack-mountable design
Connections
Input Type(s)
  • (1) HDBaseT [RJ45]
  • (4) HDMI [Type-A female]
  • (1) Display Port [Type-A]
  • (1) VGA [15-pin female]
  • (1) USB-C [Type-C USB 3.0]
  • Output Type(s)
  • (2) HDMI [Type-A female]
  • (1) HDBaseT [RJ45]
  • Audio Input Type(s)
  • (1) External balanced audio (L+R) for 1-HDBT input port [5-pin terminal block]
  • (1) External balanced audio (L+R) for 2-HDBT input port [5-pin terminal block]
  • (1) External balanced audio (L+R) for 3-HDBT input port [5-pin terminal block]
  • (1) Stereo auxiliary audio for 6-VGA input port [3.5mm jack]
  • (1) Balanced MIX audio [5-pin terminal block]
  • Audio Output Type(s)
  • (1) Balanced audio (L+R) for 1-HDMI output audio de-embedding [5-pin terminal block]
  • (1) Digital SPDIF audio (L+R) for 1-HDMI output audio de-embedding [Toslink connector]
  • (1) Balanced audio (L+R) for 2-HDBT output audio de-embedding [5-pin terminal block]
  • (1) Digital SPDIF audio (L+R) for 2-HDBT output audio de-embedding [Toslink connector]
  • Control Ports
  • (1) RS232 [3-pin terminal block], (2) Relay [3-pin terminal blocks]
  • (1) IR Eye [3.5mm jack], (2) IR in [3.5mm jacks]
  • (1) IR out [3.5mm jack], (1) TCP/IP [RJ45]
  • (1) Firmware [Type-A USB]
  • Enclosure
    Enclosure Type All metal, black powder coat finish
    Rack Mounting Option Standard 19 inch rack-mountable design
    Product Dimensions 17.2 x 1.7 x 14.0 in. (WxHxD)
    Product Weight 6.33 lbs.
    Warranty
    Warranty Limited Warranty (3-Years)
