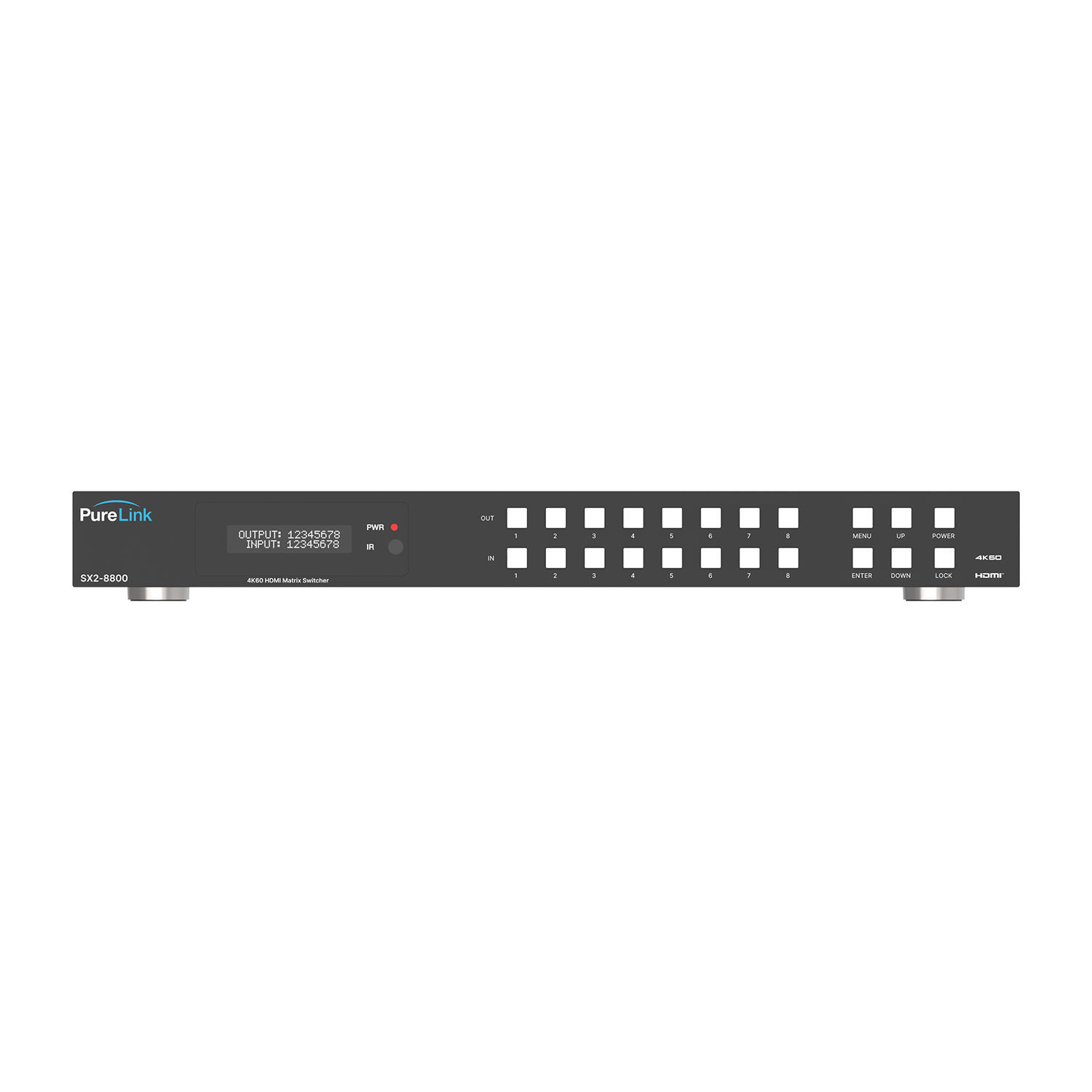

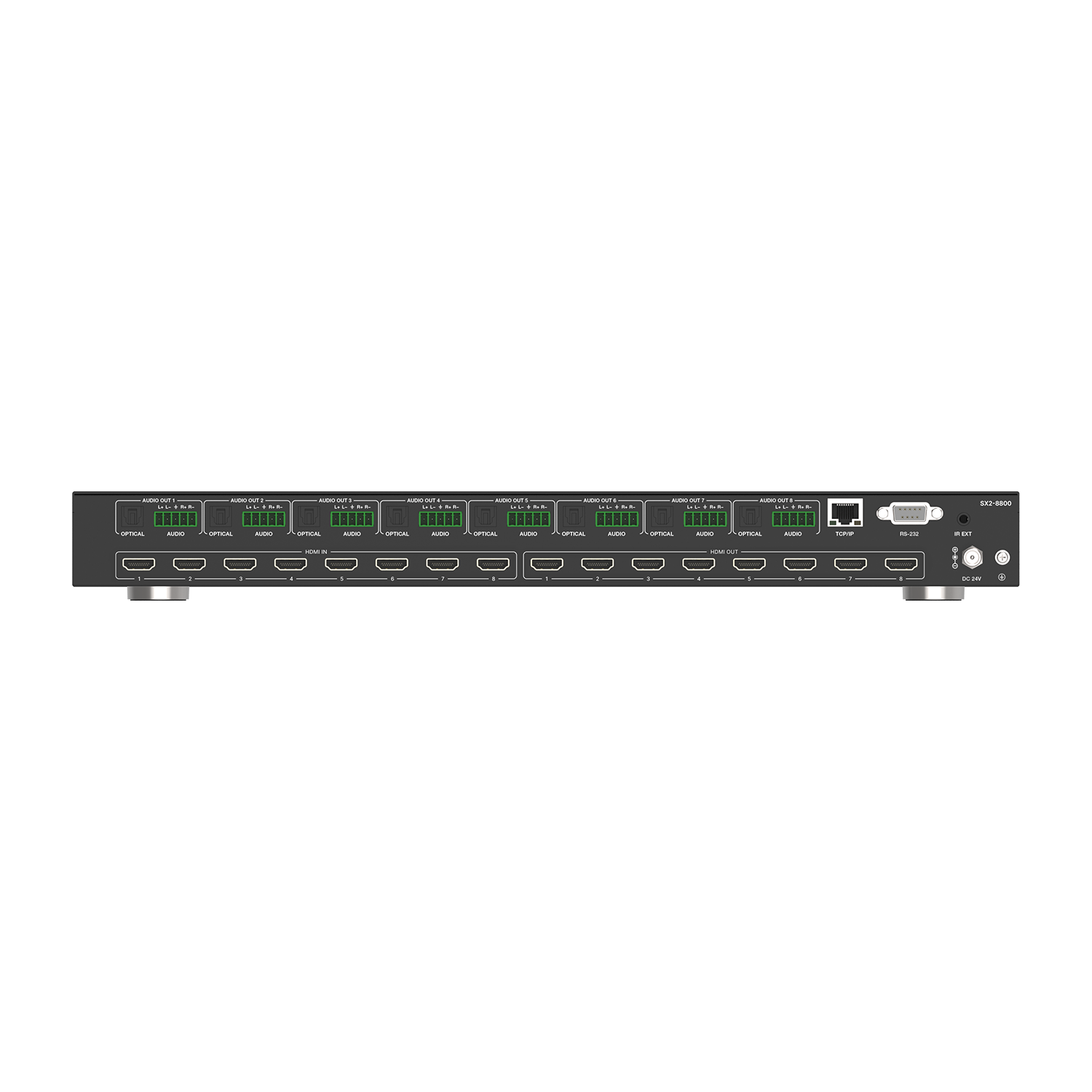

SX-8800 provides Don’t Blink™ seamless switching of up to (8) HDMI 2.0b inputs and outputs and incorporates the latest technologies available on the market including HDR and HDCP 2.2 compliance. The SX-8800 matrix switchers also feature a built-in web page interface/software allowing convenient set-up, user access, control, and operation. It also features audio extraction as well as audio insertion. Together with video wall function/advanced EDID management and added security features, the SX series delivers a true, first-in-class Ultra HD multi-zone signal distribution solution ideal for corporate conferencing, education, and hospitality environments, to name a few.

Key Features
    • HDMI 2.0b / HDCP 2.2 / 18Gbps
    • (8) HDMI inputs, (8) HDMI outputs
    • Don’t Blink™ Seamless Switching
    • Scaling up to 4K/60 4:4:4
    • Videowall Processing
    • 3.5mm Stereo Audio Embedding / De-Embedding
    • Auto EDID management
    • Front panel, IR, RS-232, TCP/IP (LAN 10M/100M) control
    • 17”W x 12”D x 2”H / 430 x 300 x 44mm
    • 11 lbs. / 5 kg
    • 3-year Parts and Labor Limited Warranty
Hardware
Input Signal Type(s) 800x600@60Hz, 1024x768@60Hz, 1280x768@60Hz, 1280x800@60Hz, 1280x1024@60Hz, 1360x768@60Hz, 1366x768@60Hz, 1400x1050@60Hz, 1440x900@60Hz, 1600x1200@60Hz, 1680x1050@60Hz, 1920x1200@60Hz, 480p, 576p, 720p, 1920x1080i, 1920x1080p, 3840x2160@24Hz/25Hz/30Hz/50Hz/60Hz, 4096x2160@24Hz/25Hz/30Hz/50Hz/60Hz
Output Signal Type(s) 3840x2160@60Hz, 3840x2160@50Hz, 3840x2160@30Hz, 3840x2160@25Hz, 1920x1200@60Hz, 1920x1080@60Hz, 1920x1080@50Hz, 1600x1200@60Hz, 1400x1050@60Hz, 1366x768@60Hz, 1360x768@60Hz, 1280x1024@60Hz, 1280x768@60Hz, 1280x720@60Hz, 1280x720@50Hz, 1024x768@60Hz
Performance
Power Consumption 100W, 110-240VAC
Power Supply 100-240VAC 50/60Hz
Operating Temperature 0° to 50° C
Storage Temperature -20° to 70° C
Relative Humidity 0 ~ 90% non-condensing
MTBF 50,000 hours
Interface HDMI-A
HDMI/DP/VGA VERSION HDMI2.0, HDCP2.2
HDMI AMPLITUDE T.M.D.S +/- 0.4Vpp
DIFFERENTIAL IMPEDANCE 100+15ohm
BAUDRATE AND PROTOCOL Baudrate: 9600, data bit: 8 stop bit: 1, no parity checking
ETHERNET IE10.0+, HTML5
PERMISSIBLE HUMIDITY 10%-50%
Enclosure
Product Dimensions 430 x 300 x 44 mm
Product Weight 5Kg
Warranty
Warranty Limited Warranty (3-Years)
