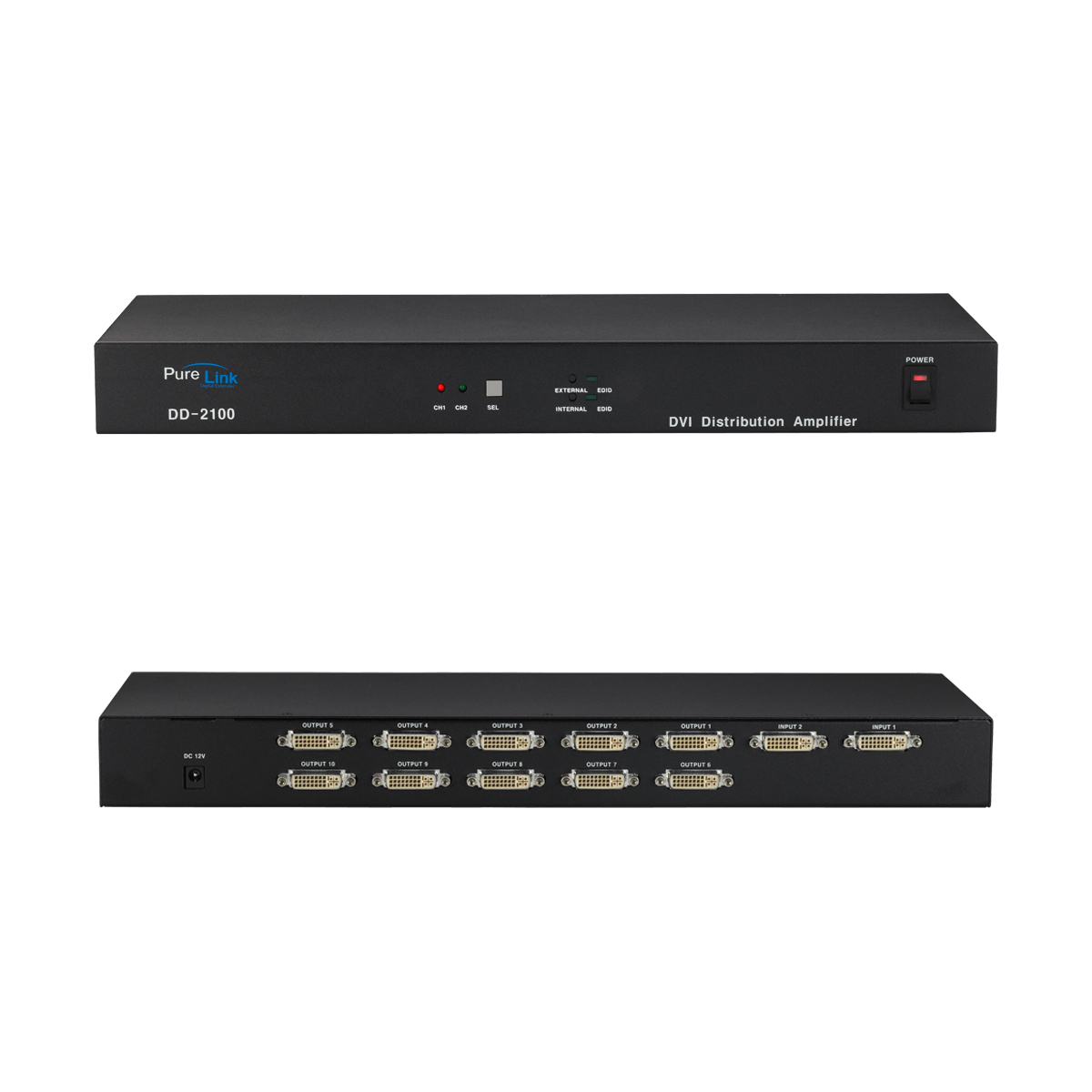

2×10 DVI Distribution Amplifier
SKU: DD-2100This product has been discontinued.
- Supports resolutions up to 1080p@60Hz
- Regenerate and distribute HD signals to multiple displays
- Pixel re-clocking & error correction technology
- Flexible EDID Management
- 19” Rack Mountable design
The DD-2100 2×10 DVI Distribution Amplifier can distribute (2) DVI inputs to as many as (10) displays, supporting resolutions up to 1080p@60Hz and WUXGA 1920×1200@60Hz. With built-in signal regeneration technology, the DD-2100 offers reliable and convenient integration in commercial or residential applications.
Hardware
| Input Signal Type(s) | DVI Single Link |
| Output Signal Type(s) | DVI Single Link |
Performance
| Supported Resolutions | 1080p@60Hz, WUXGA 1920x1200@60Hz |
| Video Bandwidth | 1.65 Gbps (single link) |
| Power Supply | DC 12V 5A |
| Operating Temperature | 32° ~ 117° F (0° to 47° C) |
| Storage Temperature | - 40° ~ 158° F (-40° to 70° C) |
| Relative Humidity | 0 ~ 90% non-condensing |
| MTBF | 50,000 hours |
| Rack Mounting Option | Standard 19 inch rack-mountable design |
Connections
| DVI-D Connector | DVI-D/LC |
Enclosure
| Enclosure Type | All metal, black powder coat finish |
| Rack Mounting Option | Standard 19 inch rack-mountable design |
| Product Dimensions | 16.7 x 6.4 x 1.7 in. |
| Product Weight | 4.6 lbs. |
Warranty
| Warranty | Limited Warranty (3-Years) |
