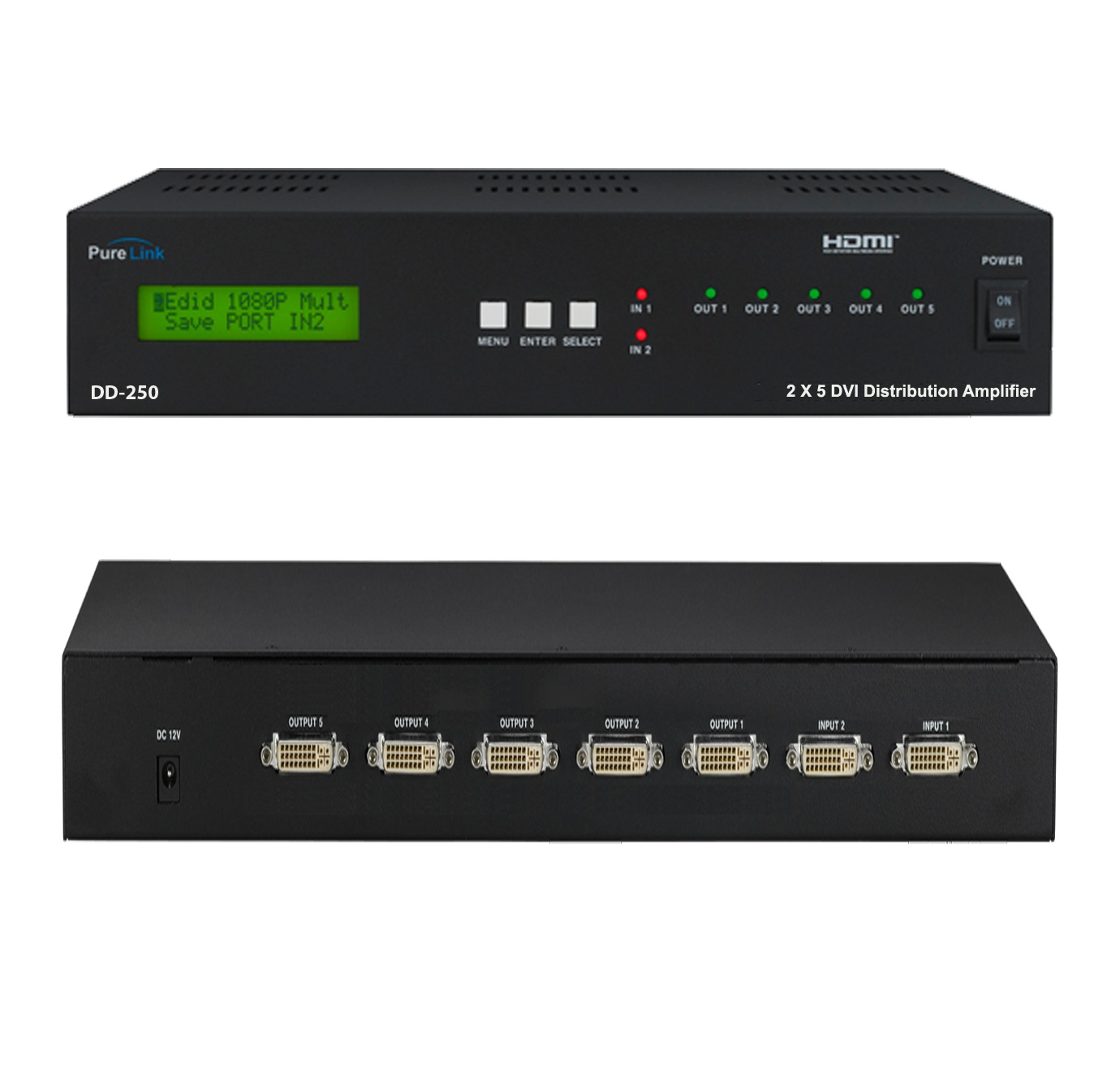

2×5 DVI Distribution Amplifier
This product has been discontinued.
- (2) DVI inputs to (5) DVI outputs signal distribution
- Full HD/1080p resolutions
- HDMI 1.3 and HDCP compliant
- High quality, lossless signal transmission
- Built-in EDID library
The DD-250 is a 2×5 Distribution Amplifier can distribute (2) DVI-I switchable inputs (PC, AVR) to as many as (5) displays, supporting resolutions up to Full HD/1080p. Featuring Auto-EDID management at each input the DD-250 offers quick and easy plug-and-play integration in commercial or residential applications.
- (2) DVI inputs to (5) DVI outputs signal distribution
- Full HD/1080p resolutions
- HDMI 1.3 and HDCP compliant
- High quality, lossless signal transmission
- Built-in EDID library
- Compact enclosure for discreet installation
Hardware
| Input Signal Type(s) | DVI Single Link |
| Output Signal Type(s) | DVI Single Link |
Performance
| Supported Resolutions | 480i ~ 1080p |
| Compliance | HDMI 1.3, HDCP |
| Power Consumption | 13W (max) |
| Power Supply | DC 12V 4A |
| Operating Temperature | 32° ~ 117° F (0° to 47° C) |
| Storage Temperature | -40° ~ 158° F (-40° to 70° C) |
| Relative Humidity | 0 ~ 90% non-condensing |
| MTBF | 50,000 hours |
| Rack Mounting Option | Standard 19 inch rack-mountable design |
Enclosure
| Enclosure Type | All metal, black powder coat finish |
| Rack Mounting Option | Standard 19 inch rack-mountable design |
| Product Dimensions | 13.7 x 6.4 x 1.7 in. |
| Product Weight | 3.7 lbs. |
Warranty
| Warranty | Limited Warranty (3-Years) |
