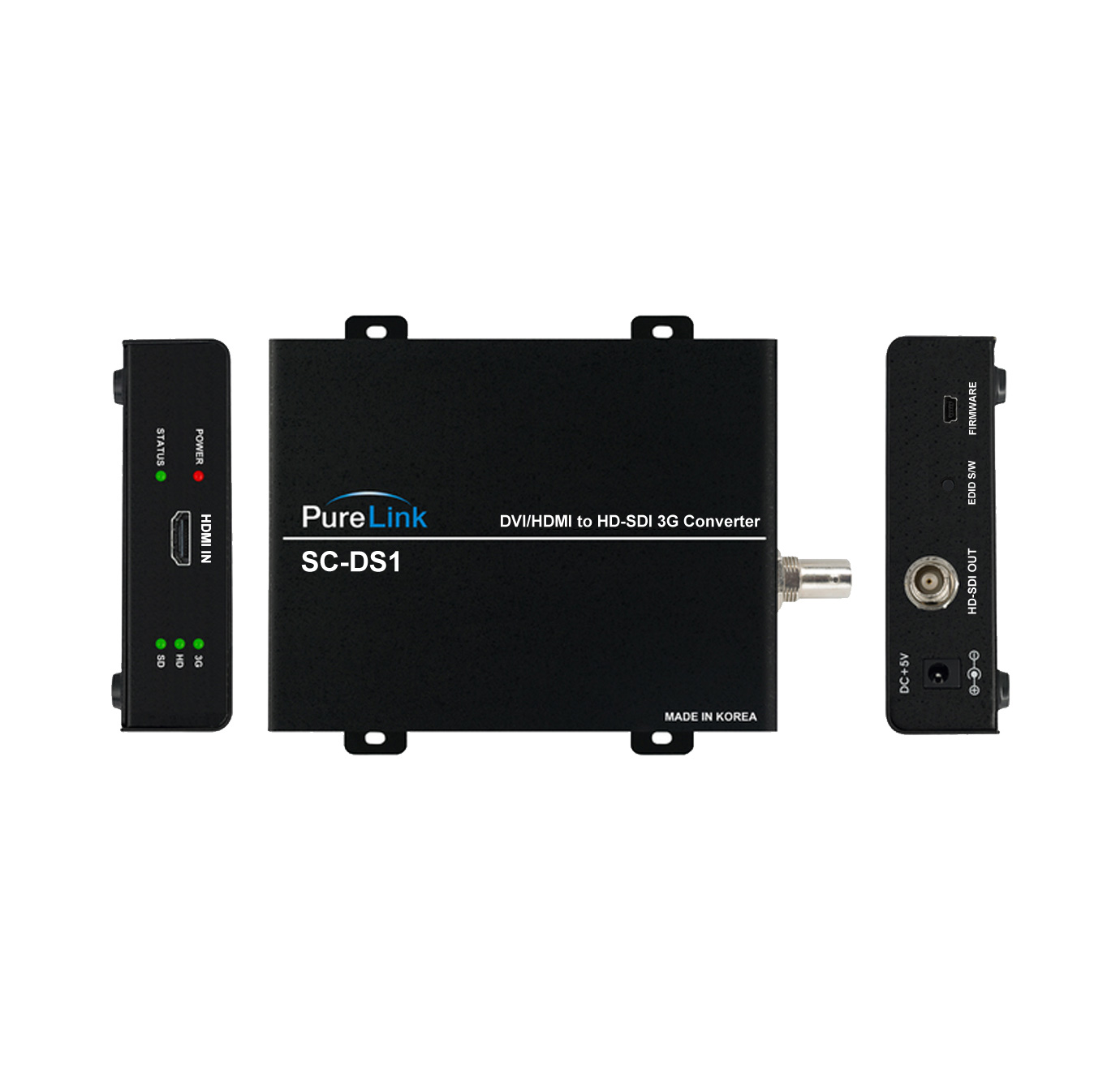

The HDTools SC-DS1 provides HDMI to HD-SDI conversion while boosting the signal quality, offering reliable transmission over longer distances. The SC-DS1 features a 3 Gb/s serial link interface is standardized for SMPTE 424M for Dual Link HD-SDI support. The SC-DS 1 can support native resolutions up to 1080p@60Hz and provides lossless video and audio transmission.

The SC-DS1 is also DVI 1.0 compatible.

Key Features
    • HDMI to HD-SDI signal conversion
    • 3 Gb/s serial link interface for 1080p transport
    • Dual Link HD-SDI support
    • HDCP and HDMI 1.4 compliant
    • DVI 1.0 compatible
    • High quality, lossless signal transport





Hardware
Output Signal Type(s) Configurable via PureMedia™ universal output cards supporting HDMI, HDBaseT, Fiber, and 3G-SDI
Performance
Video Bandwidth 1.65 Gbps
Power Consumption 60 watts (max)
Power Supply 12V DC / 2a
Operating Temperature 32° ~ 117° F (0° to 47° C)
Storage Temperature - 40° ~ 158° F (-40° to 70° C)
Relative Humidity 0 ~ 90% non-condensing
MTBF 50,000 hours
Rack Mounting Option 1U rack space
Input Video Signal 1.2 volts p-p
Input DDC Signal 5 volts p-p (TTL)
Single Link Rang 1080p/1920x1200@60Hz
Connections
DVI-D Connector Type A 29 pin
Enclosure
Rack Mounting Option 1U rack space
Product Dimensions 17 x 1.75 x 5.5
Shipping Weight 8 lbs.
Warranty
Warranty Limited Warranty (3-Years)
