The HDTools™ OLC II DVI over Fiber Extension System extends Full HD (1080p) signals up to 6,600 feet over a single-mode and up to 1,650 ft over a multi-mode cable. With PureLink’s unique Auto-EDID feature, a separate DDC connection is no longer necessary, simplifying cable management and ensuring rapid communication between devices.

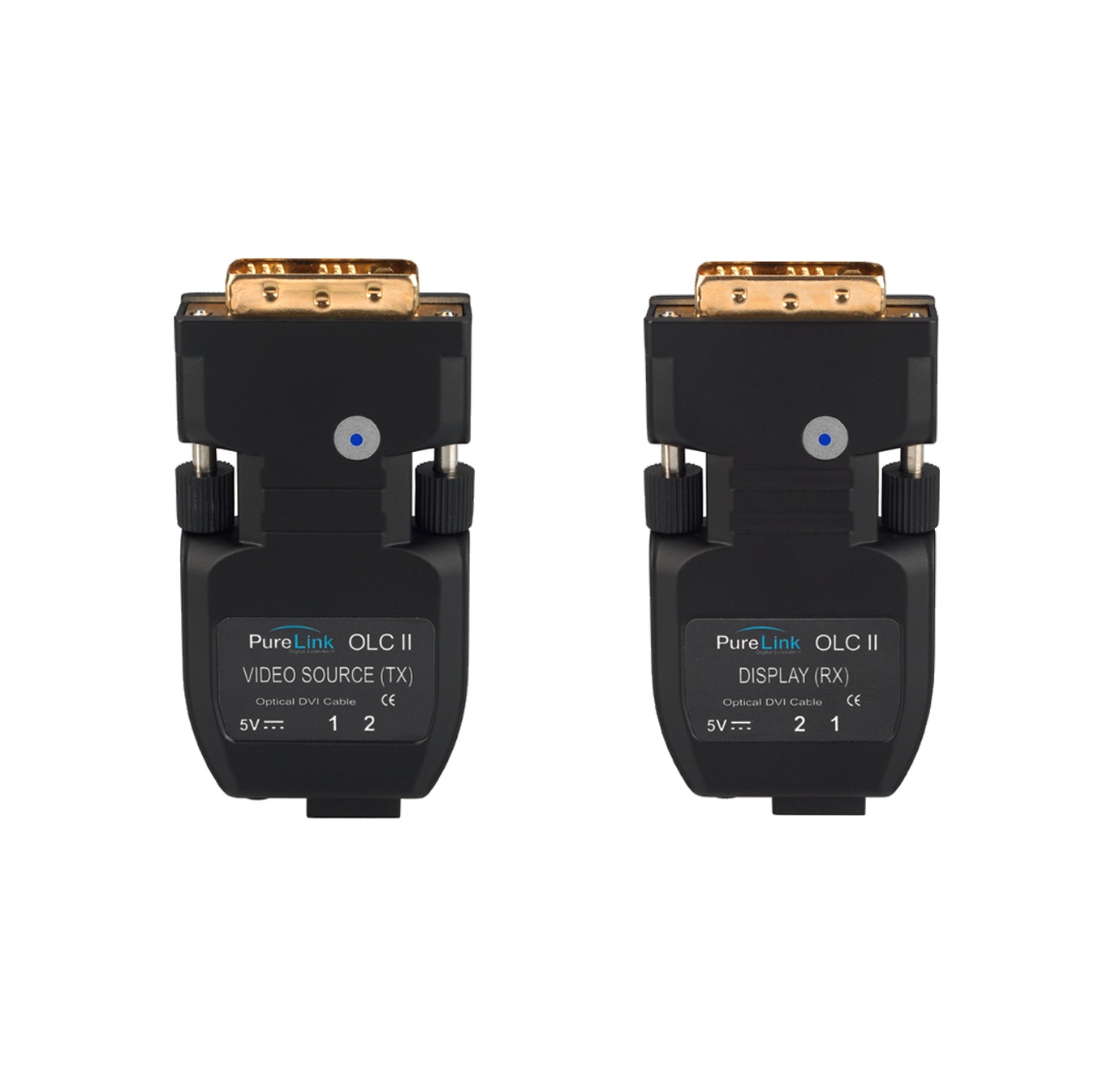

The transmitter and receiver modules are detachable and housed in compact DVI enclosures, allowing the fiber cable to be run through small conduits and other tight spaces. Additionally, fiber transmission offers secure transmission and is immune to outside interference, providing an ideal solution for government, military, and medical applications.

Individual units also available: OLC II Transmitter and OLC II Receiver

Key Features
    • Supports resolutions up to [email protected]
    • Supports distances up to 6,500 ft. (via Singlemode Fiber)
    • DVI 1.0 compliant
    • Virtual DDC and Auto-EDID programming
    • Detachable Tx/Rx modules
Hardware
Input Signal Type(s) TX: Single Link Male DVI-D
RX: (2) Female LC connectors
Output Signal Type(s) TX: (2) Female LC connectors
RX: Single Link Male DVI-D
Performance
Supported Distance Up to 6,600 ft ( 2000m ) singlemode / up to 1,650 ft ( 500m ) multimode
Supported Resolutions Up to 1920 x 1200 / 1080p @ 60Hz single link (up to 6,600ft) Singlemode, Up to 1920 x 1200 / 1080p @ 60Hz single link (up to 1,650ft) Multimode
Compliance DVI 1.0
Power Consumption 1 watt
Power Supply 12VDC, 1A, 5 watts(max)
Operating Temperature 32° ~ 117° F (0° to 47° C)
Storage Temperature - 40° ~ 158° F (-40° to 70° C)
Relative Humidity 0 ~ 90% non-condensing
MTBF 50,000 hours
Rack Mounting Option -
Enclosure
Rack Mounting Option -
Product Dimensions 1.5” (W) x 0.6” (H) x 2.7” (D)
Product Weight 0.33 lbs
Warranty
Warranty Limited Warranty (3-Years)
