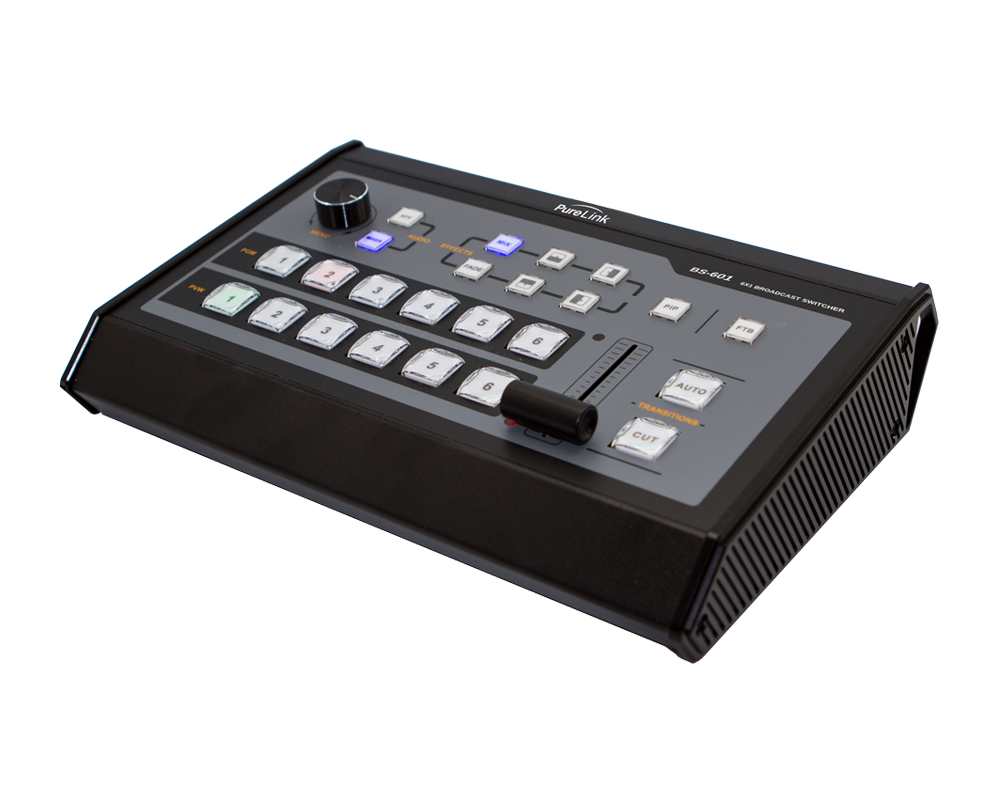

The BS-601 high-performance broadcast switcher features (2) HDMI inputs, (4) 3G-SDI inputs, audio inputs and outputs, special effect transitions, Multiview preview output, and HDMI program output. With its compact design and robust feature set, the simple to use BS-601 is ideal for production and broadcast applications such as house of worship, conferences, rental, trade shows, concerts, training seminars, medical training, and many more.



Key Features
    • Supports up 1080p60 resolutions
    • Supports up to (4) 3G-SDI and (2) HDMI inputs
    • 3.5mm analog audio input and output
    • 2-CH RCA audio input and output
    • Program output: (1) 3G- SDI and (1) HDMI
    • Multiview preview output: (1) HDMI and (1) 3G-SDI
    • Supports special effects switching such as MIX / FADE / CUT / WIPE
    • Supports hard CUT mode for AUTO and FTB
    • Supports RS232/Tally/network remote control
    • Built-in temperature detection and an intelligent fan control system

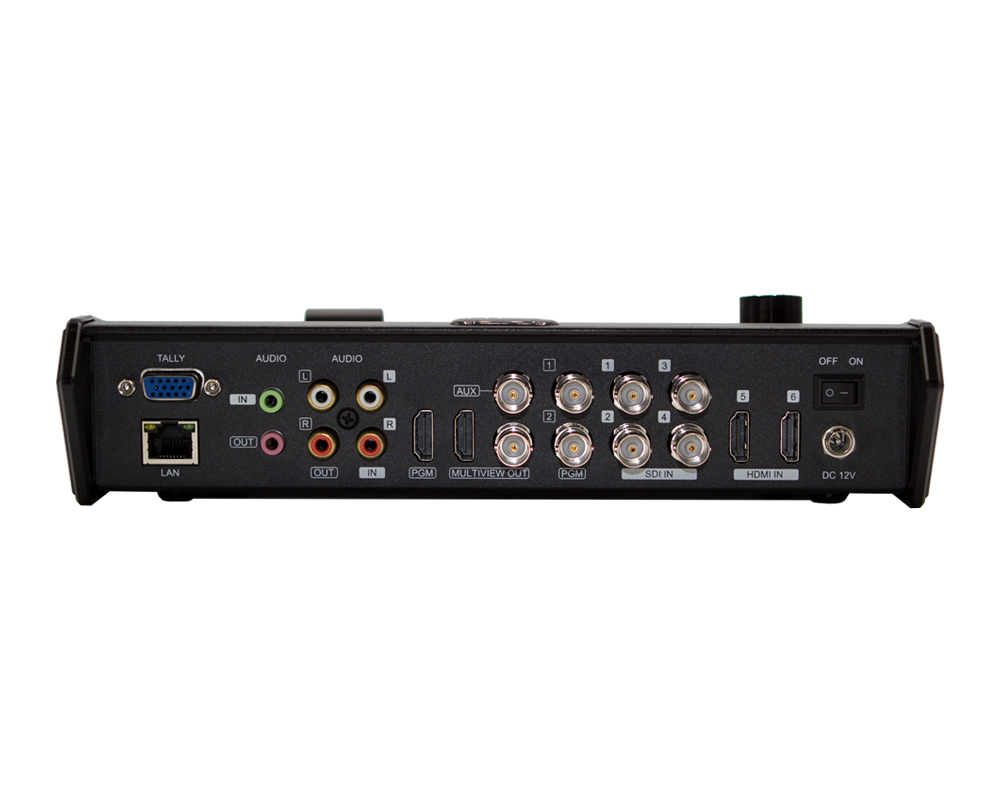

Hardware
Input Signal Type(s) (1) 3G-SDI
(1) HDMI (Female Type A)
(1) AUX output (Female BNC)
(1) 3.5mm audio out
(1) L/R RCA audio in
Output Signal Type(s) (1) 3G-SDI
(1) HDMI (Female Type A)
(1) AUX output (Female BNC)
(1) 3.5mm audio out
(1) L/R RCA audio in
Performance
Supported Distance 1920 x 1200 @ 60Hz or at 1080p, Ultra HD 4K : 330 ft (100m)
Supported Resolutions 480i/576i,480p/576p,720p,1080i,1080p60, 1920x1080, 1680x1050, 1600x900, 1440x1050, 1366x768, 1360x768, 1360x768, 1280x1024, 1280x960, 1280x800, 1280x768, 1280x720, 1280x600, 1152x864, 1024x768, 800x600
Data Transfer Rate 3.4 Gbps/ch, Total 10.2 Gbps Max
Compliance DVI 1.0 , HDMI 1.4b, HDBaseT
HDCP Compliance HDCP 2.0
Power Consumption 10Watts Max
Power Supply DC +12v
Connections
Connector Type(s) DVI 29P/HDMI 19P Female (x 1)
3.5mm Stereo Jack (x 1)
RJ-45 Jack
3P /3.5MM Terminal Block (for Power)
3P /3.5MM Terminal Block (for RS-232)
Enclosure
Product Dimensions 5.75
Warranty
Warranty Limited Warranty (3-Years)
