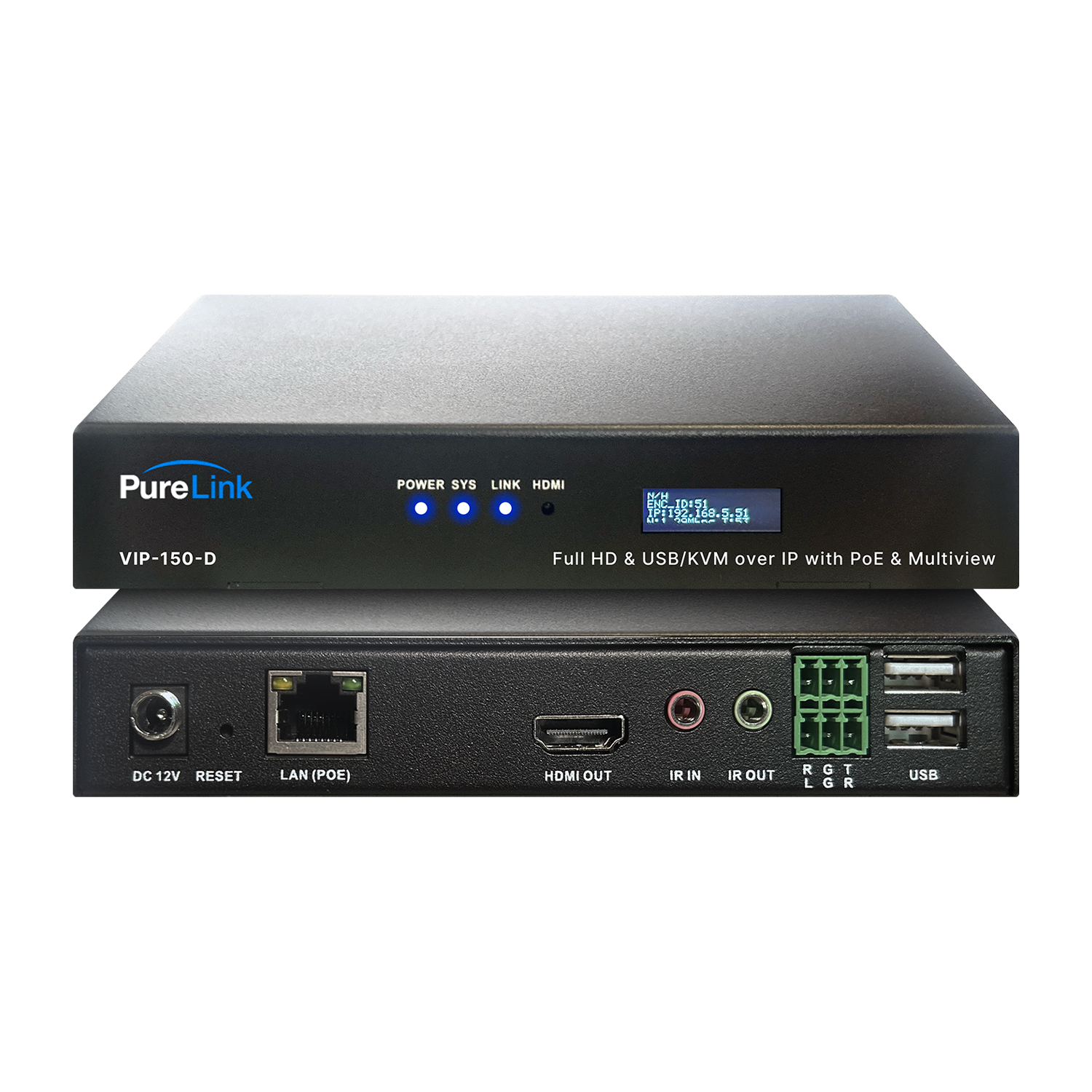

The VIP-150-D is a Full HD HDMI & USB/KM AV over IP Decoder , part of the VIP-150 Multiview AV over IP system, delivering high-quality 1080P60 4:4:4 video, USB, and high-res audio over IP networks. It supports point-to-point extension up to 394ft (120m) via Cat6a and accommodates various signal types for dependable distribution, switching and matrixing needs. The VIP-150 AV over IP system provides instant image switching, and easy connections of inputs and output using the visual VIP-150 iCON Lite control interface. VIP-150 iCON Lite also makes creating a multiview arrangement on your display simple with drag and drop. Also create up to 10×10 video walls easily, and embedding and de-embedding audio is automatic by simply connecting your auxiliary audio input, or connecting the audio output of the decoder to your audio system or processor. Gran the RTSP stream to display thumbnails on your control interface for easy identification of source program, for assignment to your displays.
The VIP-150 is designed and a perfect solution for:
- Restaurants and Bars
- Fitness Centers
- House of Worship
- Museums
- Hospitality
- Retail Stores and Malls
- Bowling Centers
- Easy and Simple operation using PureLink’s iCON™ and iCON Lite control
- Designed for quick deployment and fast implementation time
- VIP-150-D: HDMI Output, analog two channel audio extraction
- Extend encoders and decoders up to 328 ft. (100m) over CAT5e
- Up to Full HD 1080P60
- HDMI 1.3, HDCP 1.3
- Multiview: up to four encoder streams displayed on decoder(s)
- H.264/H.265 codec for high quality, ultra-low bandwidth efficiency streams
- Audio de-embedding on decoder
- USB 1.1 keyboard mouse extension
- Comprehensive diagnostics via API – device discovery, signal data, etc.
- Instant switching (same resolutions)
- Multiple control interfaces – iCON™ Control, and 3rd party control development via API
- Keyboard hot key switching for decoder inputs
- Video wall processing (up to 10 x 10)
- Scaler on the decoder (receiver)
- Bi-directional IR and RS-232 extension
- RTSP stream, useful for preview of inputs and outputs
- Powered via PoE 802.3af from PoE network switch
- Matrix switching up to 999 sources and 65K displays
- Rack-mount op0ons
