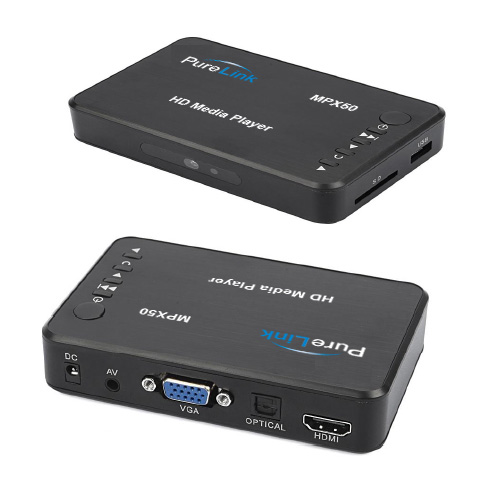

The PureStream MPX-50 offers a simple and effective solution for media playback without the need for programming or software management. This plug-and-play device plays media files from USB or SD card storage, allowing users to load images, videos, and audio content onto a USB or SD memory device drive and connect it directly to the box. With its compact, rugged design and reliable performance, the MPX50 provides a trouble-free and cost-effective system.



  • Digital Signage
  • Retail stores
  • Restaurants
  • Broadcast studios
  • Live events/staging
  • Houses of worship
  • Building lobbies
General Specifications
Platform Non-PC based , RISC Embedded based platform
Video Output HDMI (1080P), VGA (1080P)
Audio Output RCA L / R jack with composite video
Supported Resolutions up to 1080p
Storage SD card, USB drive
Power Supply 5VDC 1.5A power adapter, 100-240 VAC autosensing
Power Consumption Approx. 12W
Operating Temperature 0~70°C Humidity: 10%~85%
Storage Temperature -20°C~80°C Humidity: 5%~90%
Audio Formats .MP3, .WMA, .AFE, .FLAC, .OGG, .APE, .AAC, .AC3, .DTS
Image Formats .JPEG, .BMP, .GIF, .PNG
Supported Media
Video Formats .MOV, .AVI, .,P4, .M4V, .WMV7, .MKV, .RM, .RMVB, .MP1, .MP2, .VOB, .AVI, .TS/TP, .PMP, .FLV (1920X1080)
Audio Formats .MP3, .WMA, .AFE, .FLAC, .OGG, .APE, .AAC, .AC3, .DTS
Image Formats .JPEG, .BMP, .GIF, .PNG
Rack Mounting Option Standard 19 inch rack-mountable design
Warranty Limited Warranty (3-Years)
MPX-50_User Manual
1.1 01-31-2019 Download 415.9 KB
