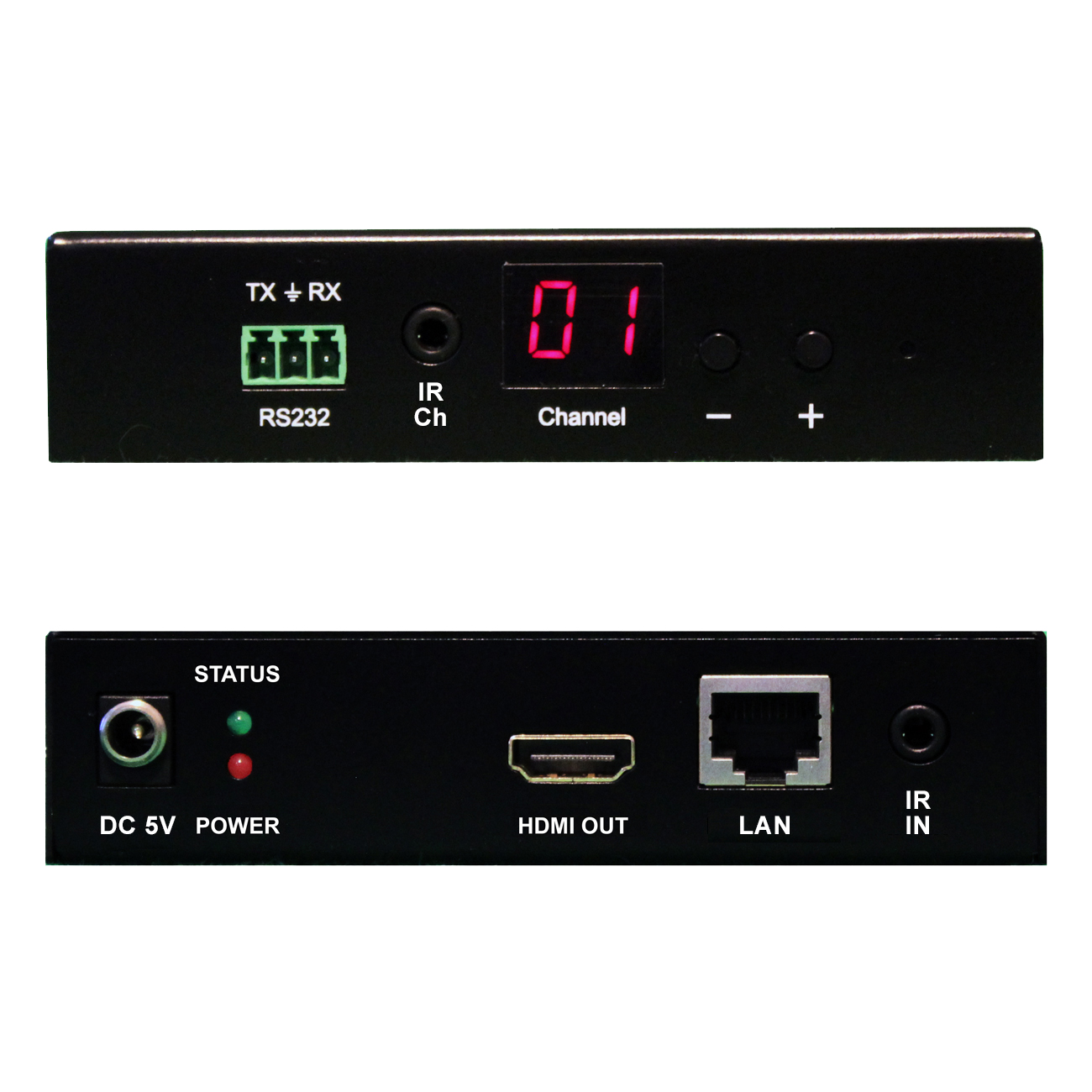

The VIP-100H II HDMI over IP distribution system provides video, audio, RS-232, and IR extension, distribution and matrix switching capabilities. Transmitter (encoder) and receiver (decoder) modules can be connected together for point-to-point extension over distances up to 394 ft. (120 m), as well as a point-to-many, many to point, and matrix connections providing up to a 64×190 matrix switching system, or even a 64 x 65K system based on Class B networks.
Key Features
    • Support resolutions up to Full HD/1080p
    • LED channel display
    • Front panel channel plus/minus buttons
    • IR remote control for familiar channel selection
    • PoE (Power over Ethernet) – power encoders/decoders from 802.3af PoE network switches
    • RS232 & IR extension/distribution
    • HDMI Loop out on Transmitter
    • HDCP compliant
    • Point-to-point or matrix system:
      – up to 64 x 190 matrix (hardware) on Class C networks
      – up to 64x 65K on Class B networks
Hardware
Audio HDMI w/embedded audio
Cabling Cat 5 UTP or better
Input Signal Type(s) (1) RJ-45 Female H.264 UDP Multicast [LAN]
Output Signal Type(s) (1) HDMI v1.3 [19 pin Female]
Performance
Supported Distance 120 m / 390 ft.
Supported Resolutions Up to1080p / 1920x1080
Compliance HDCP 1.3
RS-232 (1) Phoenix 3pin [RS232]; 2400-115K baud, user-settable
IR Extension (1) 1/8” Female [IR]
Power Supply 120-240 VAC to 5 VDC, 1A
PoE (Power Over Ethernet) 802.3af
Operating Temperature 32° ~ 117° F (0° to 47° C)
Storage Temperature - 40° ~ 158° F (-40° to 70° C)
Relative Humidity 0 ~ 90% non-condensing
MTBF 50,000 hours
Rack Mounting Option Standard 19 inch rack-mountable design
Enclosure
Enclosure Type All metal, black powder coat finish
Rack Mounting Option Standard 19 inch rack-mountable design
Product Dimensions 1.1” x 4.7” x 3.1 (29 mm x 120 mm x 79 mm)
Product Weight 0.61 lbs [280 g]
Warranty
Warranty Limited Warranty (3-Years)
