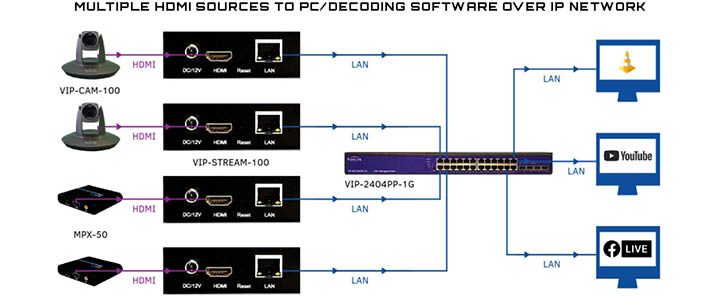

The VIP STREAM Full HD HDMI Encoder System provides Full HD ([email protected]) video and audio distribution over IP networks using the H.264 video compression standard. The VIP STREAM 100  can be used to extend signals up to 330 ft. (100 m) from a network switch and distribute A/V sources to any software based decoder on the network.  Featuring convenient setup options for configuring H.264 stream settings, the VIP STREAM 100  brings to market the only H.264 system that offers reliable signal transmission across CAT networks.

The H.264 codec can be decoded with any H.264 compliant software program such as VLC.

Key Features
    • Extend/distribute up to Full HD [email protected] video
    • Industry standard H.264 codec for low-bandwidth AV over IP
    • Decode using H.264 compliant software such as VLC
    • Built-in webpage for easy configuration and setup
    • View complete diagnostics on front panel LED display
    • Supports UDP, HTTP, RTSP, RTMP, ONVIF protocol
    • Supports MPEG1 Audio Layer 2
    • CBR/VBR network bit-rate control (16Kbps~16Mbps)
    • HDCP v1.3 compliant
Hardware
Input Signal Type(s) (1) HDMI Female
Output Signal Type(s) (1) CATx [H.264]
Performance
Supported Distance 330 ft. (100m)
Supported Resolutions 480i to [email protected], WUXGA 1920x1200
Compliance HDCP 1.3
Operating Temperature 32 to 131 F
Storage Temperature -4 to -185 F
Relative Humidity 95% NCH
Enclosure
Product Dimensions 4.0 (L) x 3.0 (W) x 1.1 (H) in.
Product weight 0.34 lbs.
Warranty
Warranty Limited Warranty (3-Years)
VIP-STREAM-100_Product Sheet
1.0 09-12-2018 Download 566.7 KB
VIP-STREAM-100_User Manual
1.2 01-31-2019 Download 2.8 MB
