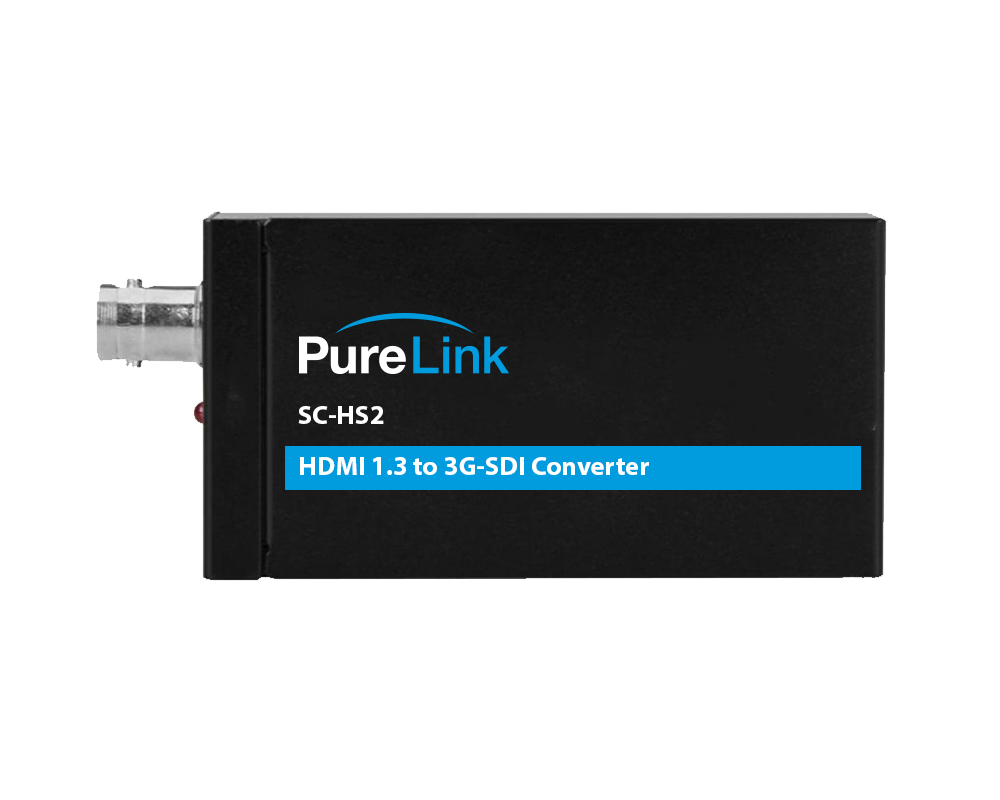

The SC-HS2 provides HDMI to 3G-SDI conversion while boosting the signal quality and offering reliable transmission and features a 3 Gb/s serial link interface. The SC-HS2 can support native resolutions up to 1080p@60Hz and provides lossless video and audio transmission.

Key Features
    • Full HD 1080P input
    • Supports SDI, HD-SDI, and 3G-SDI
    • HDMI 1.3
    • Small footprint, low power consumption
    • High quality, lossless signal transport
Hardware

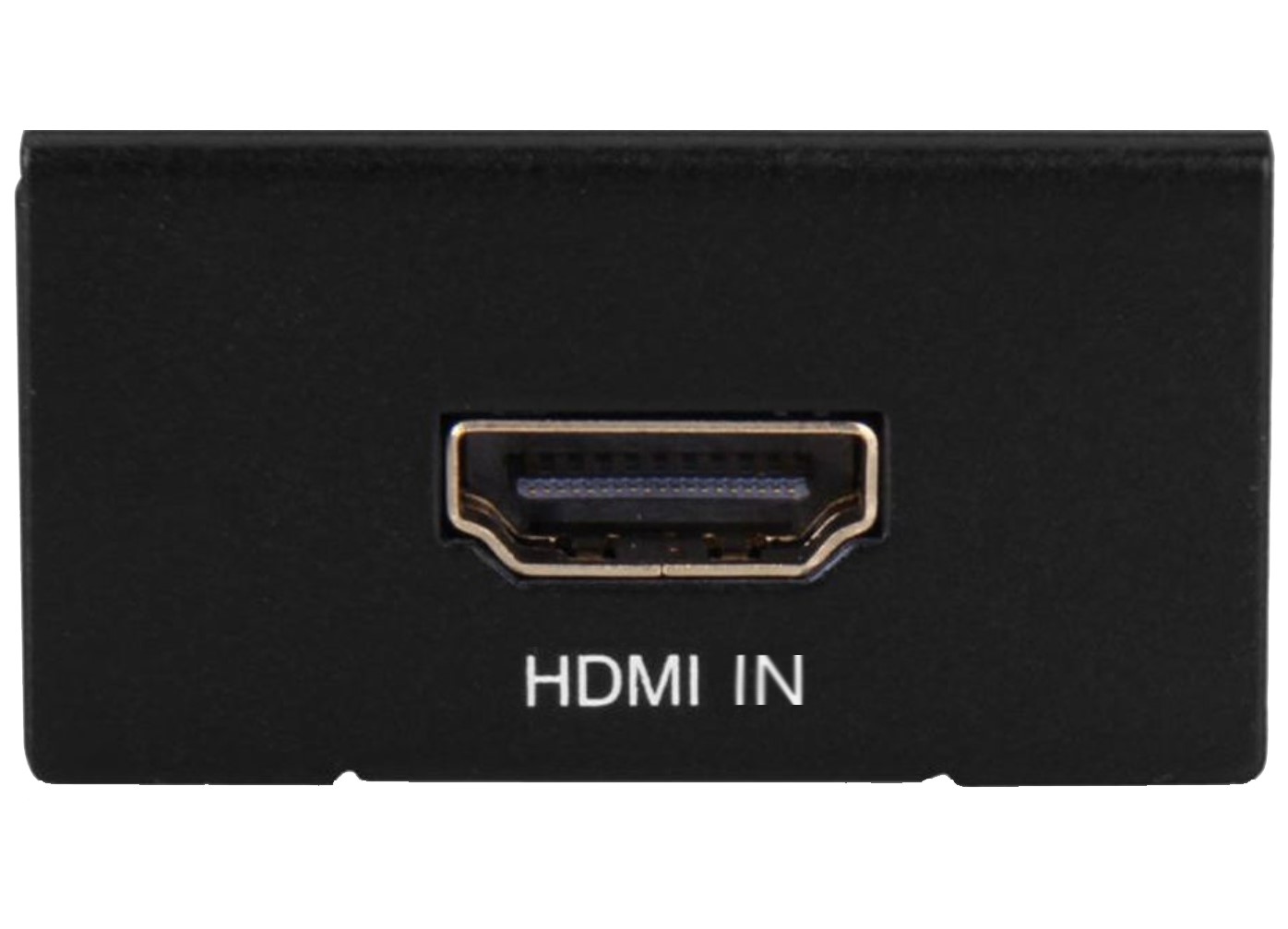

Input Signal Type(s) (1) HDMI (Type A Female)

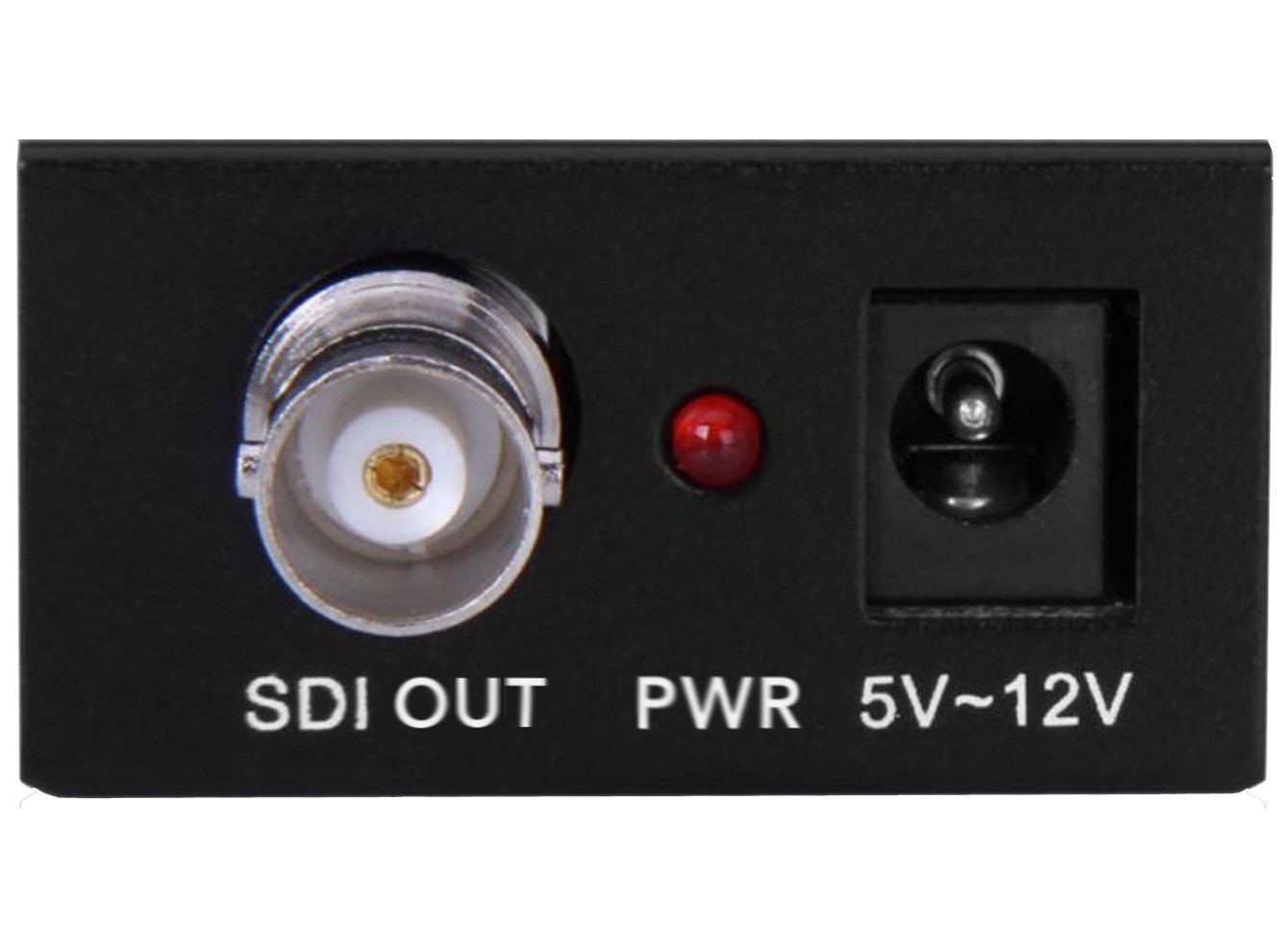

Output Signal Type(s) (1) 3G-SDI (BNC)
Performance
Supported Resolutions 480i, 576i
720P @ 50,59.94,60
1080i @ 50,59.94,60
1080P @ 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
ESD Protection +/-8kV air-gap, and +/-4kV contact discharge
Power Adapter 100-240VAC 50/60Hz, output 5vDC/1A CE/FCC/UL
Power Consumption 2.5W
Power Supply 100-240VAC 50/60Hz
Operating Temperature 32°F – 104°F (0°C – 40°C)
Storage Temperature -4°F – 140°F (-20°C – 60°C)
Relative Humidity 20 – 90% non condensing
MTBF 50,000 hours
Rack Mounting Option -
Enclosure
Rack Mounting Option -
Product Dimensions 95mm x 60mm x 25mm
Shipping Weight 260g
Warranty
Warranty Limited Warranty (3-Years)
SC-HS2_Product Sheet
1.0 05-11-2020 Download 3 MB
