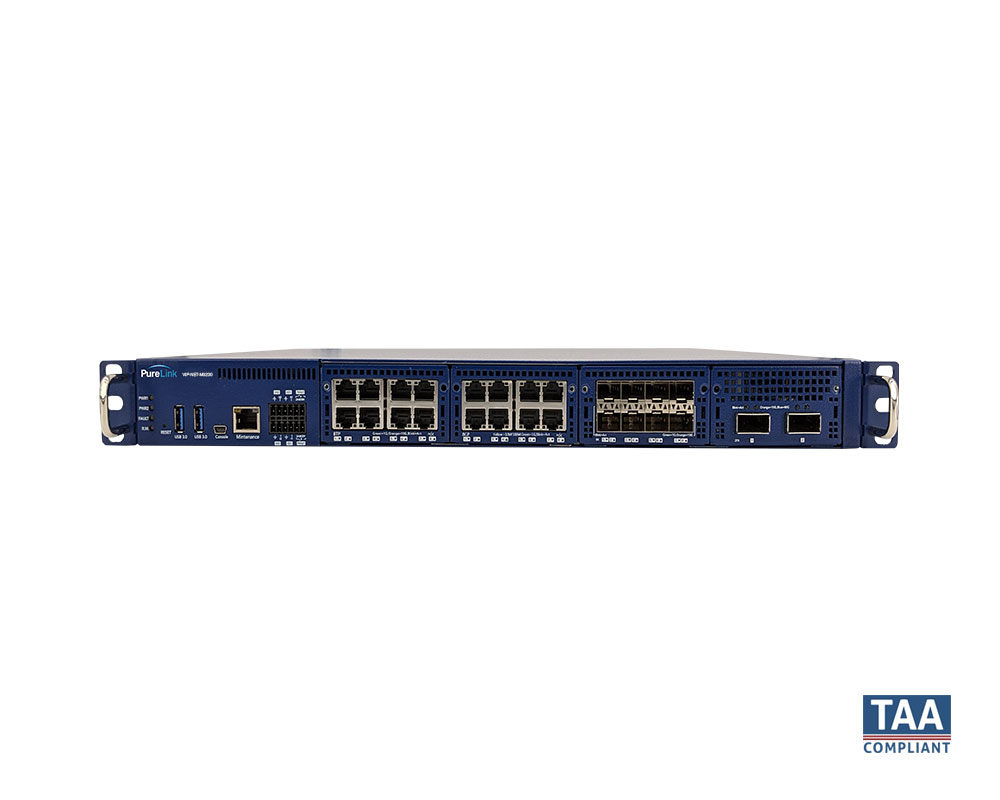

The VIP-NET-M3200 is a video over IP purpose-built high-performance L2+Ethernet switch w/ PoE+ 802.3af/at per port 30W and provides L2+ wire speed and management functions. With the flexibility of modular slots supporting up to 32 ports, the VIP-NET-M3200 can be populated with 10G RJ45 modules with PoE, SFP+ modules, and 40G QSFP+ modules. The VIIP-NET-M3200 delivers ITU G.8032 ring recovery in less than 20ms. With QoS, IGMP v1/v2/v3, and Jumbo Frame, the VIP-NET-M3200 provides smooth and reliable video over IP transport. Security functions including L2/L3 ingress and egress ACL, port-based DHCP server, and MAC-based DHCP server. Also supported is 802.3ad LACP, LLDP and CDP (Cisco Discovery Protocol) for network scanning.

Modular Slots

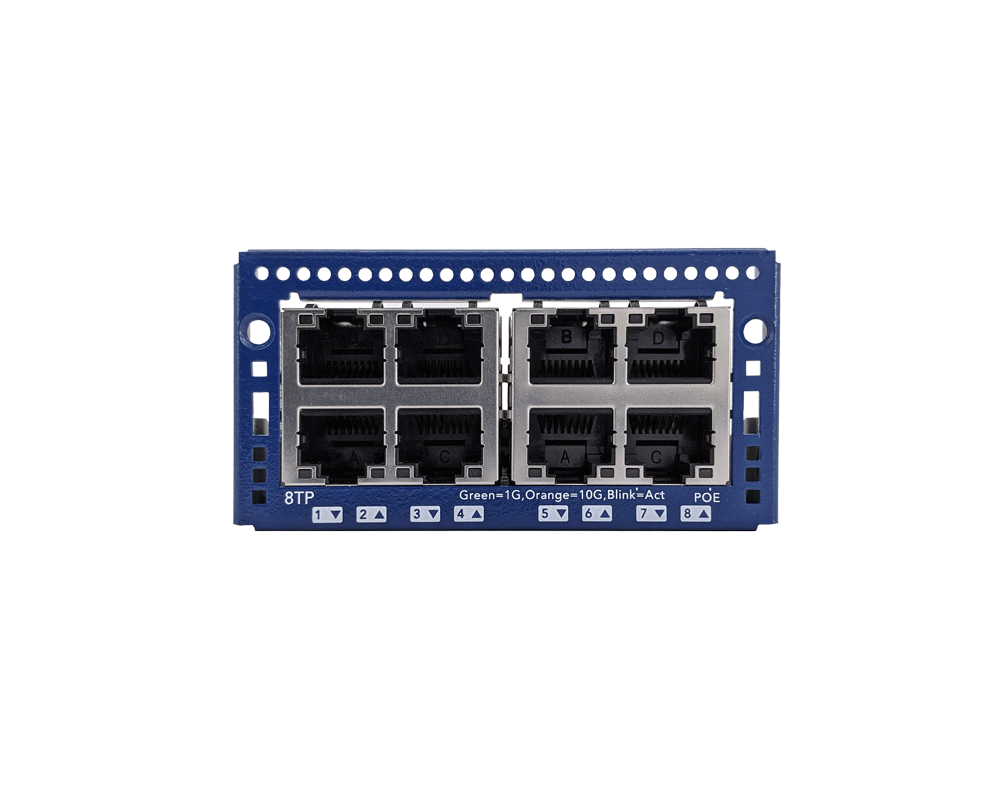

8x 10G RJ45 module w PoE


(8) 10G RJ45 ports each with 802.3at/af support, PD detection, scheduling, health tracking, front panel LED, web UI, and API diagnostics

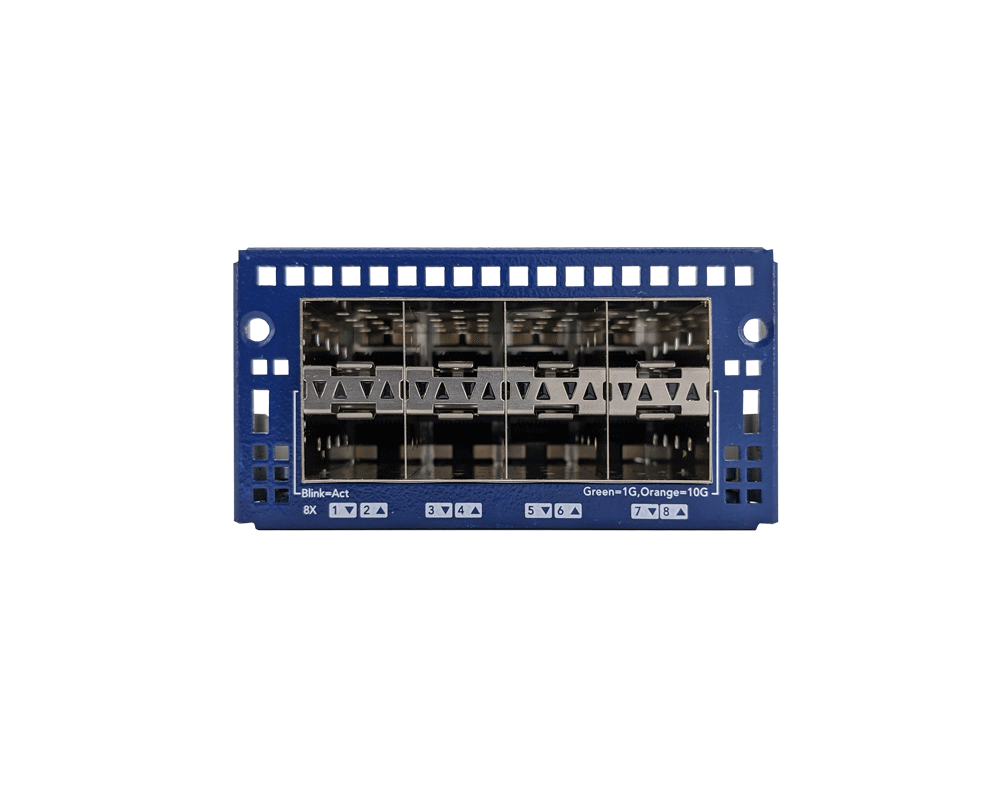

8x 10G SFP+ fiber module


(8) 10G SFP+ slot ports with auto insertion detection

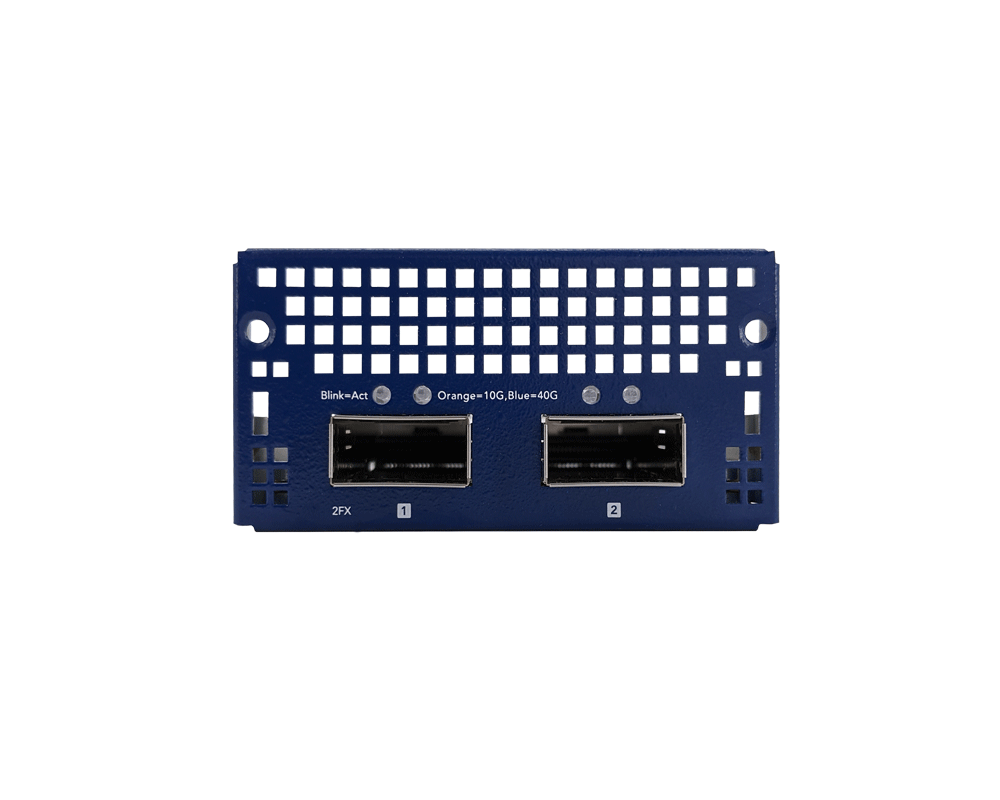

2x 40G QSFP+ fiber module


(2) 40G QSFP+ slot ports with auto insertion detection

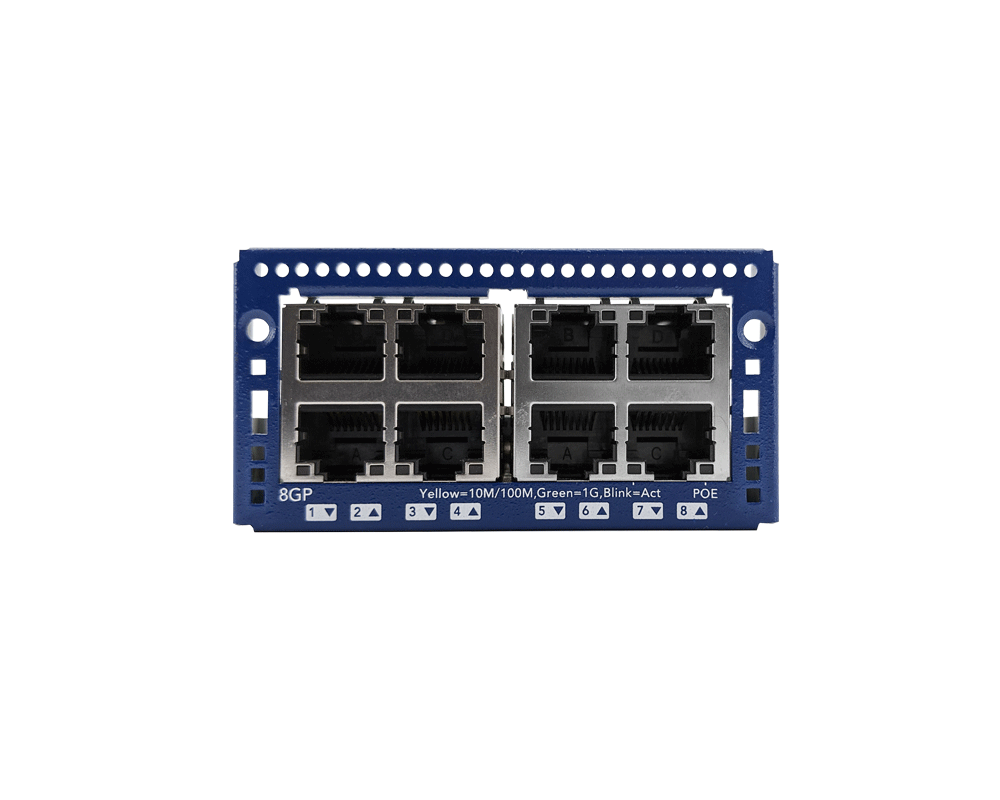

8x 1G RJ45 module w PoE


(8) 1G RJ45 ports each with 802.3at/af support, PD detection, scheduling, health tracking, front panel LED, web UI, and API diagnostics

Key Features
    • Maximum 32x10G or 24x10G+2x40G
    • Port-based IEEE802.1X authentication
    • SNMPv1/v2c/v3 for different levels of network management
    • Support LLDP and CDP for network discovery protocols
    • Redundant dual AC input power 100V to 240V
    • Supports IEEE-1588 PTP V2 for precise time synchronization to o perate in Ordinary-Boundary**, Peer to
    • Peer Transparent Clock**, End to End Transparent Clock**, Master/Slave mode by each port**
    • RMON and MIB II for efficient network monitoring
    • Intelligent Auto AV QoS
    • IGMP snooping v1/v2/v3, IGMP query and IPv6 MLD snooping v1/v2 for AV network
    • Support IEEE802.1Q VLAN, port based VLAN and GVRP
    • MSTP up to 16 instances and backward compatible RSTP and STP
    • Advanced PoE management functions, such as PD detection, schedu ling, and health tracking
    • Enhanced ITU G.8032 ring protection. Recovery time less than 20 ms at max 250 switches for single ring
    • WEB based management UI via HTTP/HTTPs. Also provide CLI, SSH, and telnet.
    • QoS bandwidth control by 802.1p CoS (Class of service) and Di-S erv for ingress and egress, support addition track storm control
    • Dynamic IEEE 802.3ad LACP link aggregation and static link aggregation


Output Signal Type(s) Configurable via PureMedia™ universal output cards supporting HDMI, HDBaseT, Fiber, and 3G-SDI
STANDARDS EEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX Ethernet
IEEE 802.3z Gigabit Fiber
IEEE 802.3z Gigabit Fiber
IEEE 802.3ae 10G Ethernet over Fiber
IEEE 802.3an 10G Copper
IEEE 802.3x Flow Control Capability
ANSI/IEEE 802.3 Auto-negotiation
IEEE 802.1Q VLAN IEEE 802.1p Class of Service
IEEE 802.1X Access Control
IEEE 802.1D Spanning Tree
IEEE 802.1w Rapid Spanning Tree
IEEE 802.1s Multiple Spanning Tree
IEEE 802.3ad Link Aggregation Control Protocol (LACP)
IEEE 802.1AB Link Layer Discovery Protocol (LLDP)
IEEE 802.1x User Authentication (Radius)
IEEE 802.3 at/af PoE
Power Supply 100-240VAC 50/60Hz
Operating Temperature 32° ~ 117° F (0° to 47° C)
Storage Temperature - 40° ~ 158° F (-40° to 70° C)
Relative Humidity 0 ~ 90% non-condensing
MTBF 50,000 hours
Product Dimensions 12.21 x 7.09 x 2.76 in. (310 x 180 x 70 mm)
Product Weight 7.7 lbs (3.5 kg)
Warranty Limited Warranty (3-Years)
