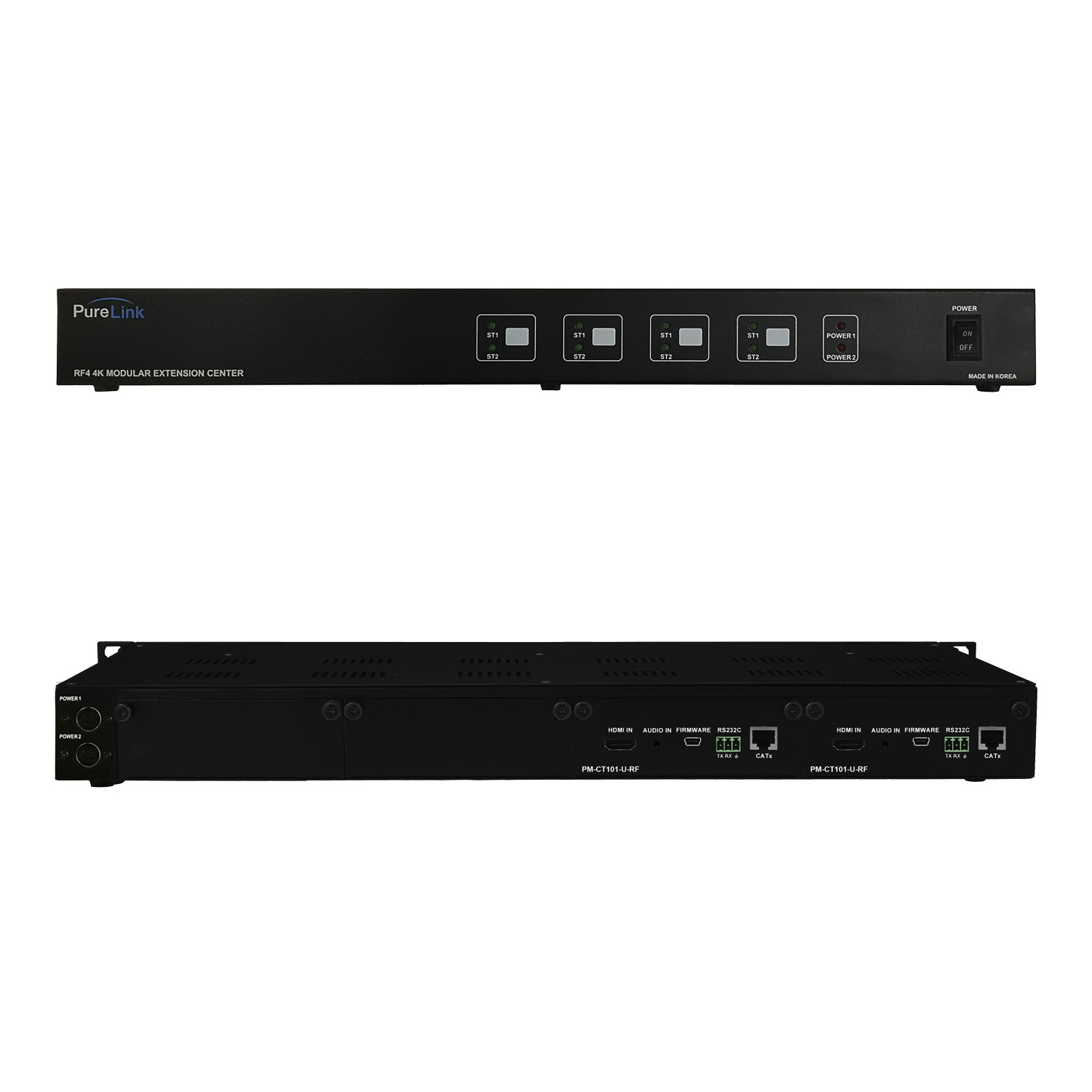

The RF4-U Rack Mountable Extension Center is a complete extension solution equipped with a series of smaller transmitters and receivers for PureMedia™ designed for slot-loading into a main chassis. The RF4-U houses up to four (4) Ultra HD/4K extender modules, available in HDMI, HDBaseT, and Fiber inputs and outputs, all in a 1-RU space with a single power source.

Available RF Extender Modules & Accessories

  • RFCC – Rack Frame Cable Cover for PureMedia RF4-U, RF6
  • PM-CT101-U-RF – HDMI to CATx (HDBaseT) Transmitter for RF4-U Extension Center
  • PM-CT102-U-RF – HDMI/VGA to CATx (HDBaseT) Transmitter for RF4-U Extension Center
  • PM-CT104-U-RF – HDMI to CATx (HDBaseT) Transmitter for RF4-U Extension Center
  • PM-FT101-U-RF – HDMI to 1 LC Fiber Transmitter for RF4-U Extension Center
  • PM-FT102-U-RF – HDMI/VGA to 1 LC Fiber Transmitter for RF4-U Extension Center
  • PM-CR101-U-RF – CATx (HDBaseT) to HDMI Receiver for RF4-U Extension Center
  • PM-CR104-U-RF – CATx (HDBaseT) to HDMI Receiver for RF4-U Extension Center
  • PM-FR101-U-RF – 1 LC Fiber to HDMI Receiver for RF4-U Extension Center
Key Features
    • Houses up to (4) Ultra HD/4K Tx/Rx modules for PureMedia
    • Supports resolutions up to 3840 x 2160 @30Hz via CAT/Fiber RF modules
    • HDCP compliant
    • Auto-EDID management
    • 19″ rack-mountable frame with single power supply



Performance
Compliance HDMI 1.4, HDCP 2.0
Main Power DC12V, 6.6A
Power Supply DC 12V 10A (redundant power standard)
Operating Temperature 32° ~ 117° F (0° to 47° C)
Storage Temperature - 40° ~ 158° F (-40° to 70° C)
Relative Humidity 0 ~ 90% non-condensing
MTBF 50,000 hours
Enclosure
Enclosure Type All metal, black powder coat finish
Product Dimensions 17.3 x 6.7 x 1.7 in.
Product Weight 6.2 lbs.
Product Dimensions 12.21 x 7.09 x 2.76 in. (310 x 180 x 70 mm)
Product Weight 7.7 lbs (3.5 kg)
Warranty
Warranty Limited Warranty (5-Years)
