The VIP-CAM-100-USB3 is a 1080p camera featuring 12x optical zoom for capturing HD images from long distances. With support for USB 3.0 and DVI-D, this camera is ideal for broadcasting high definition video signals in conferencing, live broadcast, and security/surveillance applications.

Key Features
    • Up to 72.5° FOV (Field of View)
    • USB 2.0 or USB 3.0 interface, raw data output
    • Supports standard UVC protocol
    • Up to 1080p/60 HD video format
    • Up to 12x optical zoom, 12x digital zoom
    • IR remote controller included
    • OSD (On Screen Display) menu; supports image flip
    • DVI-D video interface (only for AMC-E200U3)
    • Support standard VISCA & PELCO-D/PELCO-P communication protocols
    • RS-232 IN/IR & RS-232 OUT/RS-485 control interface
    • Supports daisy chain
    • PTZ driving system ensures precise positioning
Technical Specifications - Camera
IMAGE SENSOR 1/2.8” CMOS, 2.14MP
SUPPORTED RESOLUTIONS 1920x1080P/60/50/30/25/20/15/10/5
1280x720P/60/50/30/25/20/15/10/5
1024x768P/60/50/30/25/20/15/10/5
800x600P/60/50/30/25/20/15/10/5
640x480P/60/50/30/25/20/15/10/5
FOCUS Auto, Manual, PTZ Trigger AF, One Push
FOCAL 9.9mm ~ 46.8mm
IRIS F1.6 ~ F2.8
OPTICAL ZOOM 12x
DIGITAL ZOOM 12x
FIELD OF VIEW 72.5° ~ 6.3°
MINIMUM ILLUMINATION 0.5 Lux
SHUTTER SPEED 1/1 ~1/10,000s
AE CONTROL Auto, Manual, Shutter Priority, Iris Priority, Intelligence
TILT RANGE -30° ~ +90°
TILT SPEED 0.1° ~ 80°/s
WEIGHT 2.65 lb. (1.2kg)
MIN. ILLUMINATION 0.5 Lux
GAIN Auto/Manual
WHITE BALANCE Auto, Indoor, Outdoor, One push, Manual, Automatic tracking, Sodium, Fluorescent
BLC Yes
WDR Yes
NOISE REDUCTION 2D/3D
Pan & Tilt
PAN RANGE -170° ~ +170°
TILT RANGE -30° ~ +90°
PAN SPEED 0.1° ~ 120°/s
TILT SPEED 0.1° ~ 80°/s
PRESET NUMBER 252
OSD Yes
IMAGE FLIP Yes

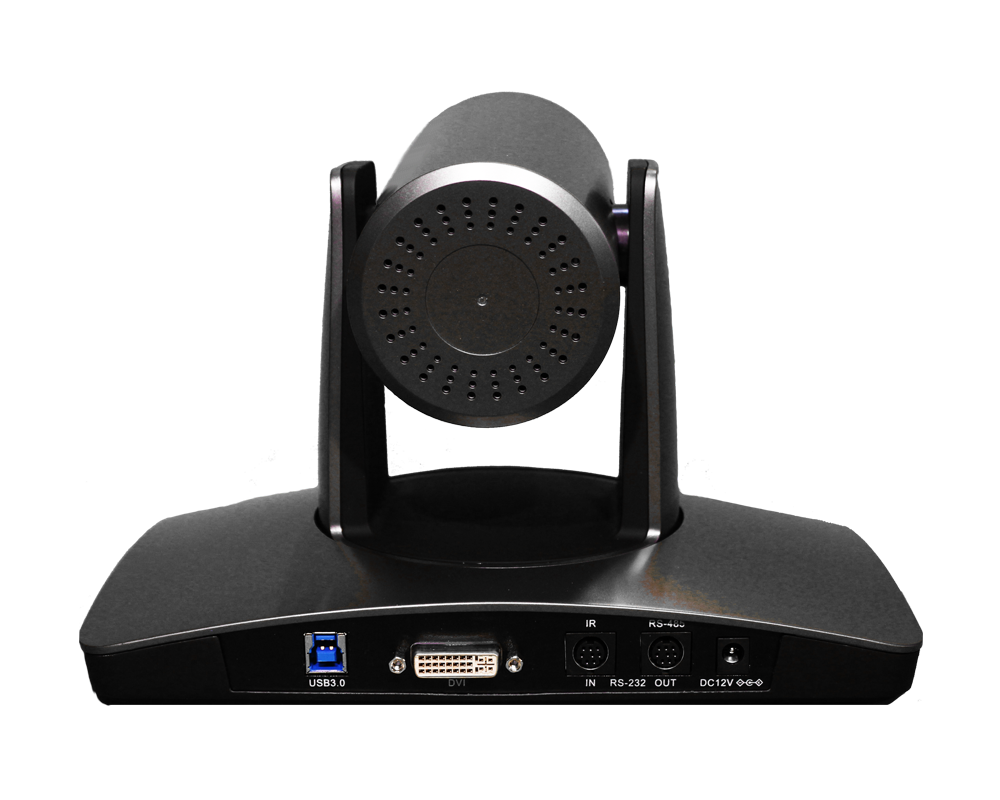

Interface
VIDEO OUTPUT USB 3.0, DVI-D
CONTROL INTERFACE USB 3.0/2.0, RS-232 IN/IR, RS-232 OUT/RS-485
General
CONTROL PROTOCOL VISCA and Support Daisy Chain, Pelco-D, Pelco-P
ADDRESS 0 ~ 63
POWER SUPPLY DC12V
DIMENSIONS 9.57” x 5.71” x 6.42” (243mm x 145mm x163mm)
WEIGHT 2.65 lb. (1.2kg)
Warranty
Warranty Limited Warranty (3-Years)

FAQ

AV OVER IP – MADE SIMPLE

PureLink’s AV over IP Solutions have always been about simplicity of installation/operation, alongside rich features that allow you to achieve your goals.

  • How Does AV over IP work?

    In simple terms, AV over IP is a technology to transport audio and video over a network.  The encoder, also known as a transmitterIt can be one source to one display, or many sources to many displays.  Along with audio and video, an AV over IP system commonly provides extension/distribution of IR, RS-232, USB, and LAN, allowing KVM applications, control of sources/displays, and extension of the network.



    AV over IP offers many advantages over other technologies:

    • Distribute AV signals over common network systems
    • Transport over category or fiber cable, allowing significant extension distances
    • Easily acquire diagnostic information over the network of the AV over IP system
    • Solve different transport needs with the same equipment:
      • Extension
      • Distribution
      • Switching
      • Matrixing
    • Stream to large audiences such as Facebook, YouTube, etc.
  • What connectivity solutions does AV over IP provide?

    AV over IP encoders and decoders can be configured in many different ways to solve almost any challenge.

    • Extension one to one
    • Distribution one to many
    • Switching many to one
    • Matrixing many to many
    • Streaming  many to huge audiences around the world such as Facebook, YouTube, etc.

    Due to this unique ability of AV over IP technology to create multiple ‘devices’ with encoders and decoders, you have flexibility not found in other technologies.  For example, it would not be possible with HDBaseT to purchase an extender system, then add to it to create a matrix system, like you can with many AV over IP products.

    Contact us now to help you get started on your AV over IP project, or just ask us general questions.  Click on our Live Chat icon in the bottom right of this page, or call us at 201-488-3232, or email us at [email protected]



  • What applications is AV over IP appropriate for?

    AV over IP technology has become the preferred technology in any application or market, because networks are prevalent in all of them, from home entertainment to large building distribution, to cross continent transport.

    • Home entertainment
    • Restaurants, sports bars
    • Bowling alleys
    • Fitness centers
    • Digital Signage distribution
    • Outdoor displays
    • Classroom KVM systems
    • Kiosks
    • Retail
    • Medical
    • Data Visualization
    • Presentation spaces
    • Conferencing / Huddle spaces
    • Corporate
    • Government / Military (see our TAA compliant AV over IP products)
    • And more….

    Contact us now to help you get started on your AV over IP project, or just ask us general questions.  Click on our Live Chat icon in the bottom right of this page, or call us at 201-488-3232, or email us at [email protected]

  • What kind of network switch is required?

    AV over IP requirements for network switches are few and simple, and most network switches come equipped with the functionality needed.  Please see the list below:

    • 1G systems (VIP-100, VIP-200, VIP-300, VIP-T300)
    • Jumbo Frame =>8K
    • IGMP Snooping V2
    • IGMP Querier, preferred in larger systems
    • PoE 802.3af preferred but not required (VIP-100, VIP-300, VIP-T300)
