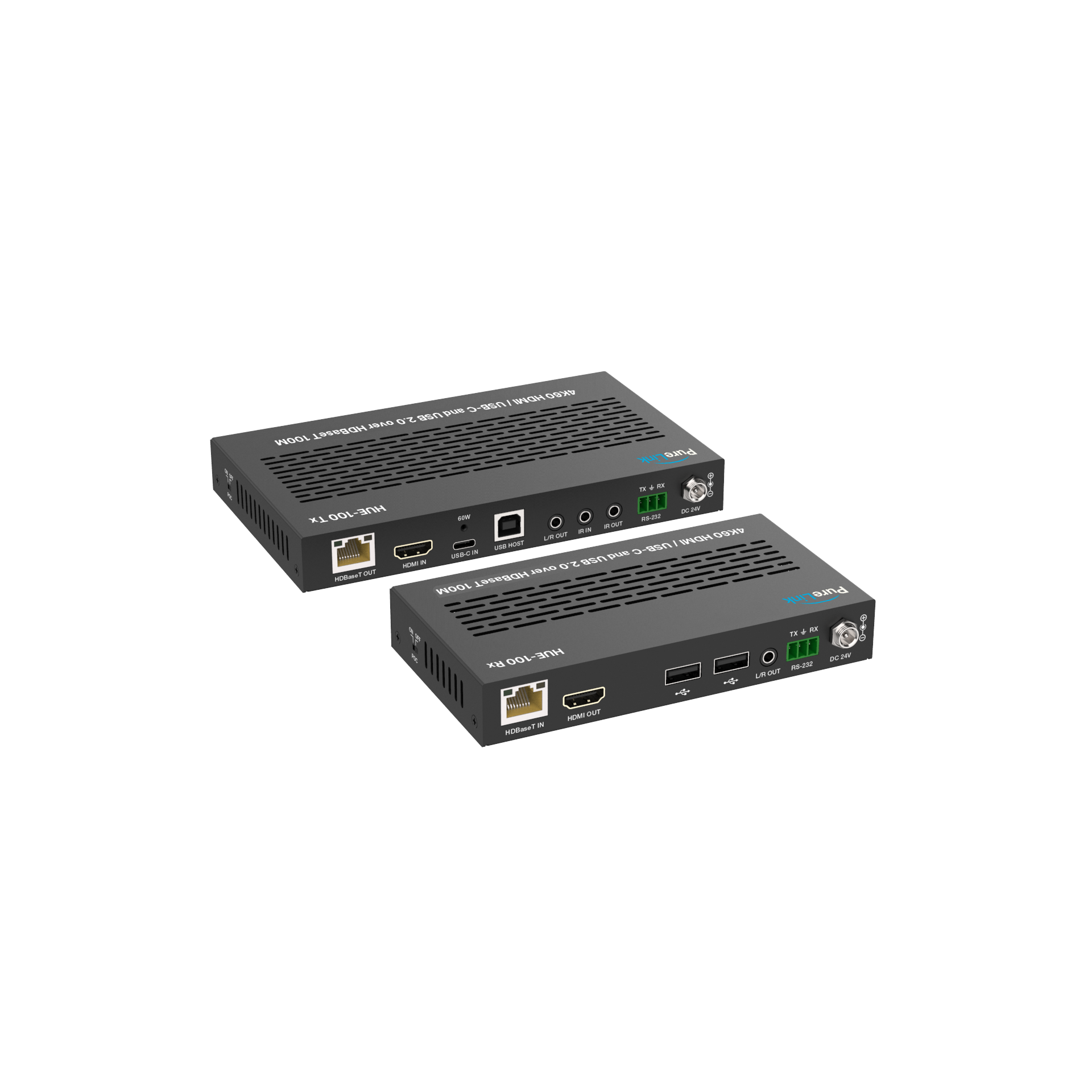

4K HDMI and USB-C Over HDBaseT 3.0 100 Meter Extension System with Bi-Directional PoC
SKU: HUE-100- HDMI and USB-C Inputs
- Manual or Automatic Input Selection
- API Control of:
- Manual / Auto Input Selection
- EDID Management
- De-embedded Audio Mute / Unmute
The HUE-100 HDMI and USB-C HDBaseT 3.0 extension system offers full HDMI 2.0b, HDR/HDR10/HDR10+ (High Dynamic Range) 4K@60Hz 4:4:4 up to 100 meters on CAT6a/7 cable . The HUE-100 can also transport 1080P60 8 bit up to 150 meters over CAT6a/7 cable. Manual or automatic selection of HDMI and USB-C inputs is available on front panel controls and API. User defined EDID and extraction of display EDID are easy operations using the HUE-100 simple API.
The HUE-100 provides Dolby Vision, HLG, multi-channel audio, CEC pass-through, bi-directional RS-232 and IR control, and PoC – all with zero loss and zero noise. The HUE-100 also supports Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio plus LCPM. Additionally, the low profile “slim box” enclosure design makes the HUE-100 ideal for limited space installation environments, such as behind flat panel displays and video walls.
| Supported Distance | up to 130 ft. (40m) at Ultra HD/4K and up to 230 ft. (70m) at 1080p |
| Supported Resolutions | Ultra HD/4K up to 4096 x 2160 @50/60Hz (RGB 4:4:4, YCbCr 4:4:4, 4:2:2, 4:2:0) |
| Compliance | HDMI 2.0, HDCP 2.2 |
| Data Transfer Rate | 18 Gbps |
| RS-232 | (1) RS-232 [3-pin phoenix] |
| IR Extension | (1) x IR input [3.5mm stereo mini-jack]; 1 x IR output [3.5mm stereo mini-jack] |
| Power Consumption | 24W (max) |
| Input Power Requirements | AC100 – 240V 50/60Hz |
| Power Supply | DC 24V/1A (US/EU standard, CE/FCC/UL certified) |
| Operating Temperature | 32° ~ 117° F (0° to 47° C) |
| Storage Temperature | - 4° ~ 140° F (-20° to 60° C) |
| Relative Humidity | 0 ~ 90% non-condensing |
| Product Dimensions | 7.2'' x 3.5'' x 0.7'' (183 x 88 x 18mm) |
| Product Weight | 1.0 lbs (0.45 kg) |
| Product Dimensions | 12.21 x 7.09 x 2.76 in. (310 x 180 x 70 mm) |
| Product Weight | 7.7 lbs (3.5 kg) |
| Warranty | Limited Warranty (3-Years) |
