Key Features
    • HDMI 2.0a / 4K60 4:4:4 8-bit / HDR
    • Extension to 70m (230 ft.) @ 4K60 4:4:4 HDR, 100m (330 ft.) @ 1080p / 36-bit
    • Bi-Directional PoC (Power over Cable)
    • DTS-HD Master Audio / Dolby TrueHD / 7.1 Audio
    • RS-232 / LAN / IR / CEC
    • Wall-mountable
    • Video latency <20ms
    • TAA-compliant
Hardware
Input Signal Type(s)

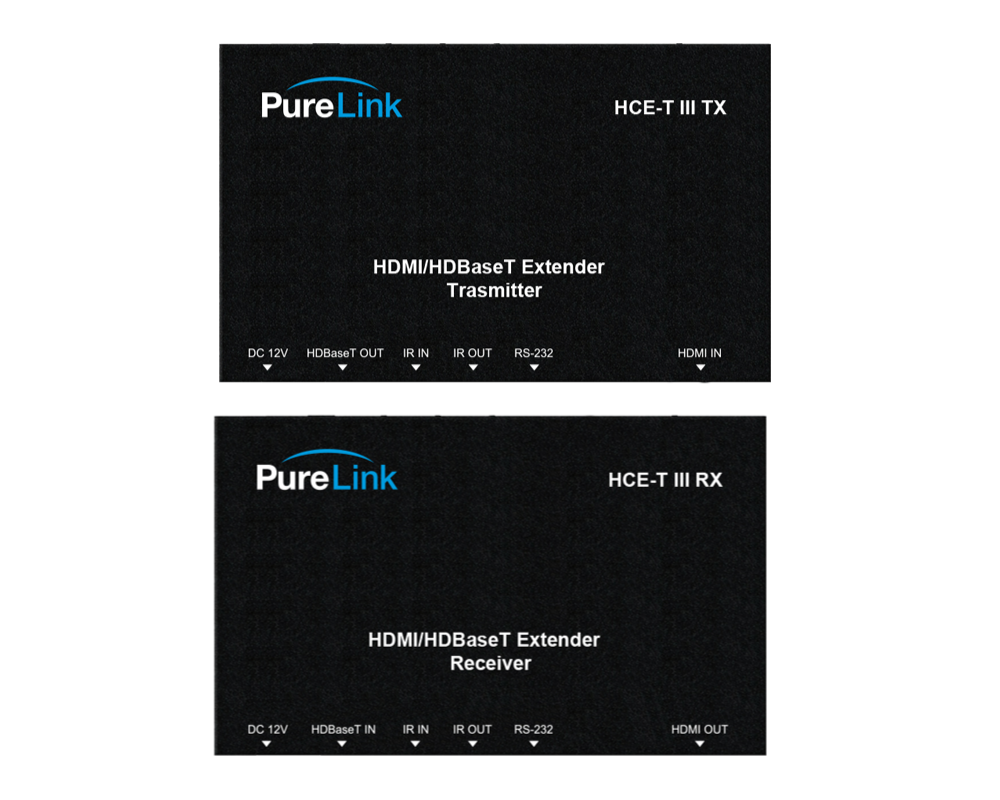

  • TX: 1x HDMI / 1x 3.5mm

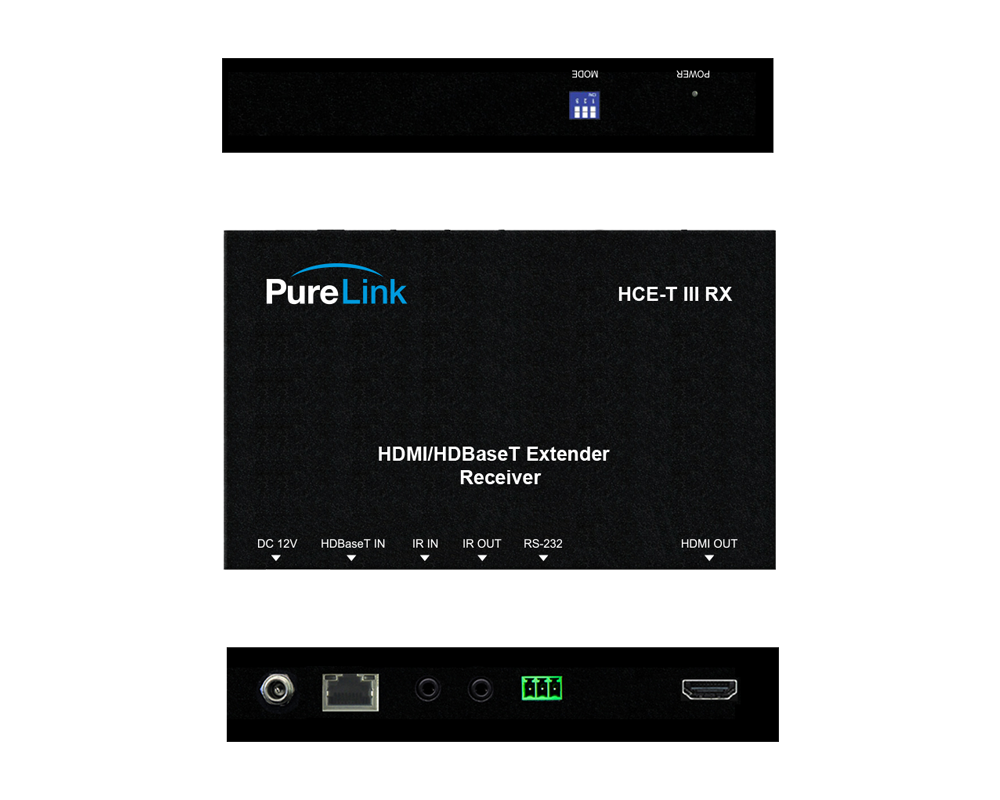

  • RX: 1x RJ-45 / 1x 3.5mm
  • Output Signal Type(s)
  • TX: 1x RJ-45 / 1x 3.5mm / 1x SPDIF
  • RX: 1x HDMI / 1x 3.5mm / 1x SPDIF
  • IN/OUT 1x RS-232 / 1x RJ-232
    Performance
    Video Support HDR [email protected] (4:2:0 10bits) / [email protected] (4:4:4 8bits)
    Compliance HDMI 2.0a
    Video Bandwidth Single-link 600MHz [18Gbps]
    Equalization Auto
    HDMI OVER UTP [email protected] 100m (330ft) [CAT5e]
    INPUT TMDS SIGNAL 1.2 Volts [peak-to-peak]
    PCB STACK-UP 6-layer board [impedance control – differential 100Ω; single 50Ω)
    IR PASS-THRU Bi-directional
    RS-232 support
    PoC SUPPORT Yes
    HDMI SOURCE CONTROL Controllable via IR pass-through from RX to TX with IR extenders
    ESD Protection Human body metal - + 15kV [air-gap discharge] & +8kV [contact discharge]
    Power Consumption 15 Watt
    Power Supply 12V 2A DC
    Operating Temperature 32~104°F (0~40°C)
    Storage Temperature -4~140°F (-20~60°C)
    Relative Humidity 20~90% RH (no condensation)
    MTBF 50,000 hours
    Rack Mounting Option Wall-mounting case with screws
    ROTARY CONTROL SWITCH None
    Connections
    Connector Type(s) HDMI Type A [19-pin female], MIN DIN-9, RJ-45[WE/SS 8P8C(Reverse Mode)], 3.5mm[IR receiver/ IR Blaster]
    Enclosure
    Enclosure Type Metal Enclosure
    Rack Mounting Option Wall-mounting case with screws
    Product Dimensions
  • TX :4.7” x 2.8” x 0.8” (120 x 72 x 20 mm)
  • RX :4.7” x 2.8” x 0.8” (120 x 72 x 20 mm)
  • Product Weight
  • TX : 4.1 oz (117g)
  • RX : 5.1 oz (146g)
  • PRODUCT DIMENSIONS 12.21 x 7.09 x 2.76 in. (310 x 180 x 70 mm)
    Product Weight 7.7 lbs (3.5 kg)
    Warranty
    Warranty Limited Warranty (3-Years)
    HCE-T III_Product Sheet
    1.0 10-29-2020 Download 1.1 MB
