8×8 4K HDMI to HDBaseT Matrix Switcher w/PoC
SKU: HTX II-8800- HDMI 2.0b (18Gbps), HDCP 2.2, HDCP 1.4, and DVI compliant
- (8) HDMI inputs, (6) HDBaseT outputs, and (2) independent HDMI outputs
- Resolutions up to 4K@60HZ (4:4:4) on all HDMI ports
- 4K@60Hz (4:4:4) to 4K@60Hz (4:2:0) conversion for all HDBaseT outputs
- Distances up to 330 ft. (100 m) via CATx
The HDTools™ HTX II-8800 provides independent switching of (8) Ultra HD/4K sources to (6) remote destinations via HDBaseT™ (with HTX II receivers, sold separately) and (2) local destinations via HDMI. The HTX II-8800 also features a built-in independent audio matrix with (16) audio outputs [8 audio breakouts/ 6 HDBaseT™ outputs/ 2 HDMI outputs] and (22) audio inputs [8 HDMI inputs/ 8 ARC audio inputs/ 6 external audio sources) with volume, mute, and delay adjustment.
The HTX II-8800 is HDCP 2.2 compliant and offers PoC support on all HDBaseT outputs.
Hardware.
| Input Signal Type(s) | HDMI |
Performance
| Supported Resolutions | up to 4K@50/60Hz (4:4:4) |
| Supported Audio Formats | PCM 2.0, 32K/44.1K/48K/88.2K/96K/192K,16/20/24bit |
| Compliance | HDMI 2.0/1.4, HDCP 2.2 |
| Data Transfer Rate | 18 Gbps |
| Color Space | RGB/YCbCr 4:4:4, YCbCr 4:2:2 |
| Color Depth | 8-bit 10-bit 12-bit |
| Supported HDMI Audio Formats | LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X |
| RS-232 | Yes |
| IR Extension | Yes |
| LAN | Yes |
| Control Options | Front panel; web UI |
| Power Consumption | 85 Watts (max) |
| Power Supply | 100-240VAC 50/60Hz |
| Power Injection for CATx Extenders | Enabled on all HDBaseT outputs |
| Operating Temperature | 32° ~ 104 F (0° to 40° C) |
| Storage Temperature | -4° ~ 140° F (-20° to 60° C) |
| Relative Humidity | 20 ~ 90% non-condensing |
| MTBF | 50,000 hours |

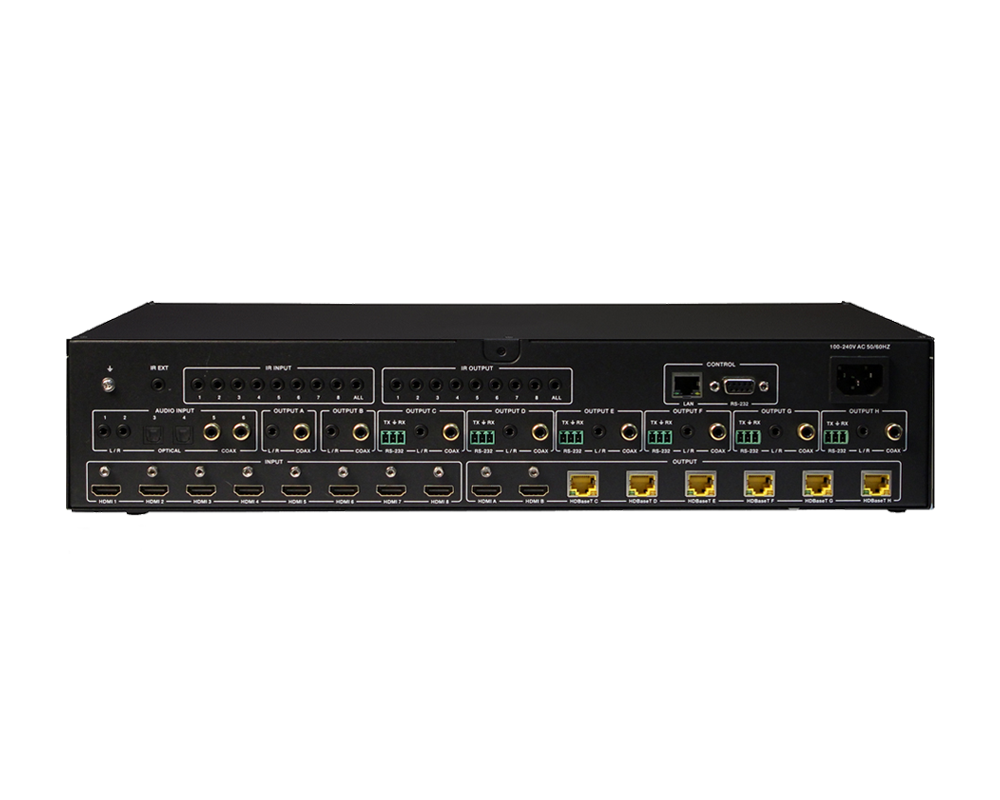

Connections.
| Inputs | (8) HDMI Type A [19-pin female], (10) IR In [3.5mm Stereo mini-jack], (6) RS-232 [Phoenix jack], (1) Ethernet [RJ45], (1) RS-232 [DB9], (2) L/R Audio In [3.5mm Stereo mini-jack], (2) Optical Audio In [S/PDIF], (2) Coaxial Audio In [RCA] |
| Outputs | (2) HDMI Type A [19-pin female], (9) IR Out [3.5mm Stereo mini-jack], (8) L/R Audio Out [3.5mm Stereo mini-jack], (8) Coaxial Audio Out [RCA], (6) HDBaseT Out [RJ45] |
Enclosure
| Enclosure Type | All metal, black powder coat finish |
| Product Dimensions | 19” x 14.7” x 3.49” |
| Product Weight | 14.77 lbs. |
Warranty
| Warranty | Limited Warranty (3-Years) |
