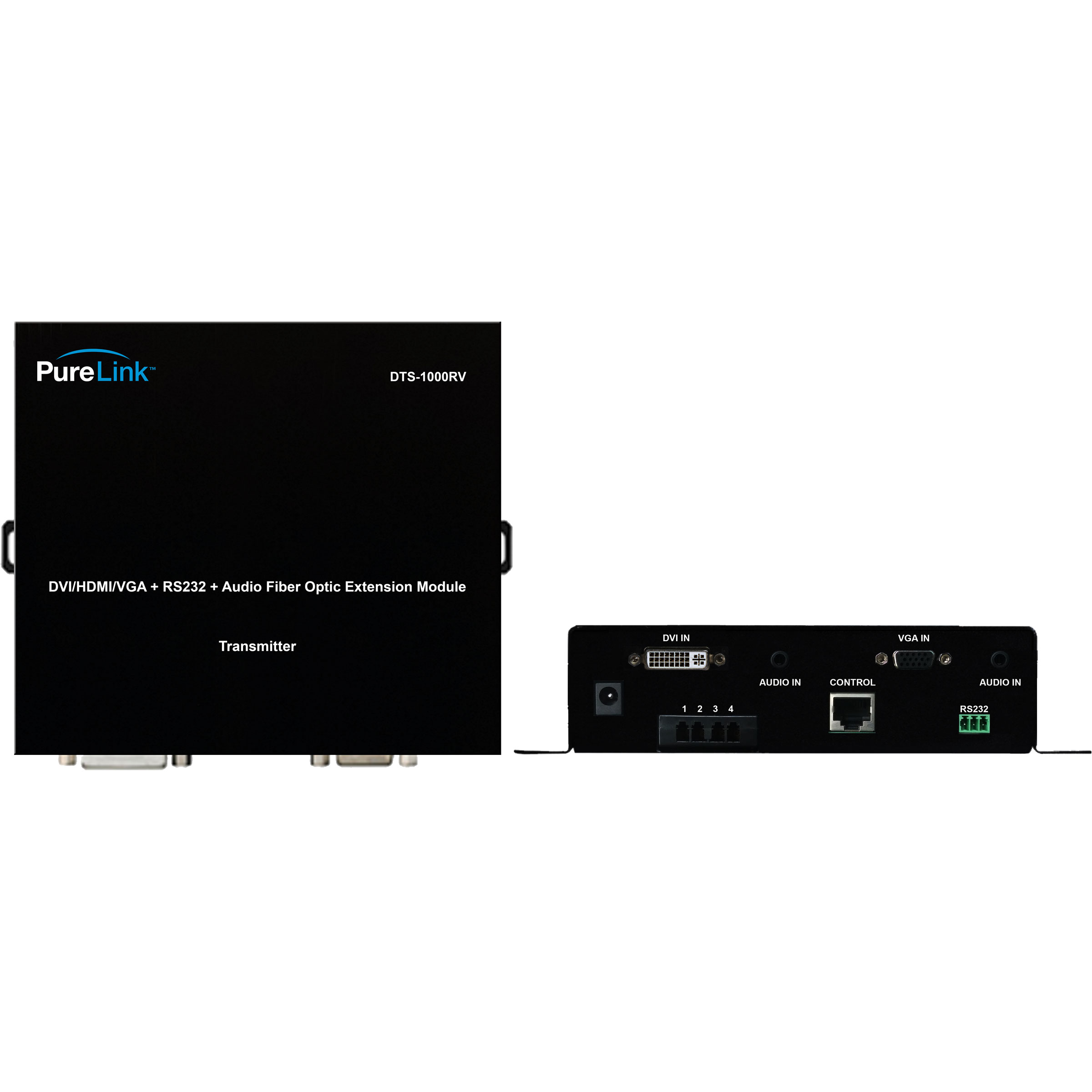

DVI/VGA to 4LC Fiber Extender – Transmitter
SKU: DTS1000RV- DVI/VGA + Audio, RS-232 to 4LC Fiber + (1) CATx transmitter
- Supports resolutions up to 1080p@60Hz
- Supports cable distances up to 1000m
- HDCP compliant
- Signal amplification and noise cancellation technology
The HDTools™ DTS1000RV supports long-distance extension of DVI/VGA, 3.5 stereo audio, and RS232 control signals over multimode fiber. Housed in a robust, compact enclosure, the DTS1000RV and its corresponding receiver (DRS1000RV) can be easily integrated into a wide range of applications requiring long-distance transmission of high quality content.
Hardware
| Audio | 3.5mm stereo audio |
| Input Signal Type(s) | (1) Single Link Female DVI-D; (1) Female VGA, (2) 3.5mm Mini Jack Stereo Audio |
| Output Signal Type(s) | (4) Female LC connectors, (1) RJ-45 |
Performance
| Supported Distance | 1080p (up to 3,000 ft.), 1080i (up to 5,000 ft.) |
| Supported Resolutions | up to 1080p@60Hz |
| Video Bandwidth | 1.65 Gbps per color (DVI-D, single link) / 2.25Gbs per color (HDMI) |
| Compliance | DVI 1.0, HDMI 1.3, HDCP Supported |
| RS-232 | (1) RS-232 [3-pin phoenix] |
| Power Consumption | DC 12V, 4.1A, 8 Watts(Max 13W) |
| Power Supply | 100-240VAC 50/60Hz |
| Operating Temperature | 32° ~ 117° F (0° to 47° C) |
| Storage Temperature | - 40° ~ 158° F (-40° to 70° C) |
| Relative Humidity | 0 ~ 90% non-condensing |
| MTBF | 50,000 hours |
| Rack Mounting Option | Standard 19 inch rack-mountable design |
Enclosure
| Rack Mounting Option | Standard 19 inch rack-mountable design |
| Product Dimensions | 4.3 |
| Product Weight | 1.4 lbs. |
Warranty
| Warranty | Limited Warranty (3-Years) |
