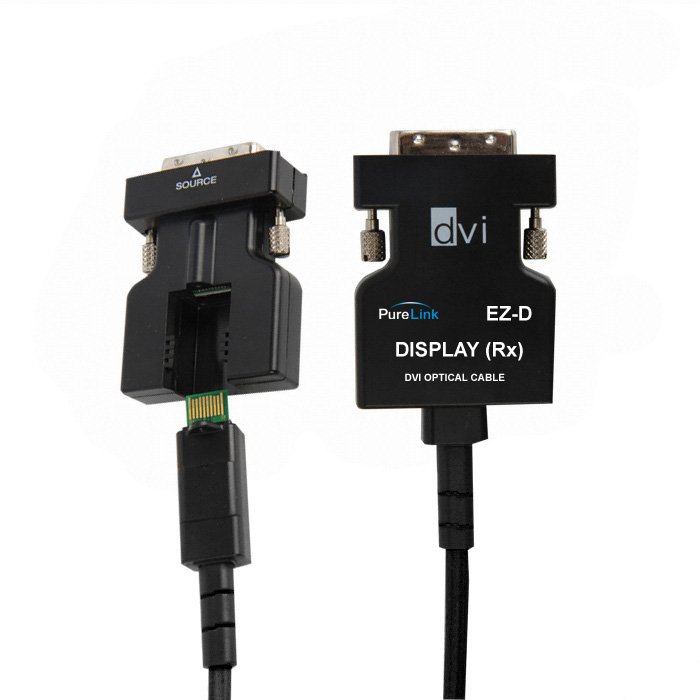

EZ DVI over Detachable Fiber Cable
SKU: EZDThis product has been discontinued. You may be interested in:
EZ HDMI 2.0 over Detachable Fiber Cable- Supports all PC and HDTV resolutions up to 1080p
- Detachable connectors for convenient, no-hassle installation
- Pre-terminated lengths up to 100 meters (330 ft.)
- Incorporates active transceivers inside connectors
- Plug-n-play (no additional power supply required)
Simplicity & Reliability
PureLink’s  DVI body in a compact and reliable form, supporting up to WUXGA (1920 x 1200 @60Hz) and 1080p with 36 bit Deep Color and HDCP compliance up to a distance of 100 meters (328 ft).
EZ-In, EZ-Out
The ultra thin  makes installation easier than offerings from any other brand. The removable connector transmitter body, combined with the thinnest cable available, allows the EZ-D to be effortlessly maneuvered through conduits – something previously impossible with DVI. Furthermore, the plug-n-play functionality requires no external power supply, as the transmitter and receiver bodies draw power from the source and sync respectively.
| EZD SERIES | |
| Integrated Detachable DVI Over Fiber Cable | |
| EZD-010 | EZ DVI over Fiber Cable with TotalWire Technology – 10m |
| EZD-020 | EZ DVI over Fiber Cable with TotalWire Technology – 20m |
| EZD-030 | EZ DVI over Fiber Cable with TotalWire Technology – 30m |
| EZD-040 | EZ DVI over Fiber Cable with TotalWire Technology – 40m |
| EZD-050 | EZ DVI over Fiber Cable with TotalWire Technology – 50m |
| EZD-070 | EZ DVI over Fiber Cable with TotalWire Technology – 70m |
| EZD-100 | EZ DVI over Fiber Cable with TotalWire Technology – 100m |
The TOTALWIRE EZ-D makes installation easier than ever  with its unique, detachable Tx & Rx connector bodies and ultra thin cable. The EZ-D delivers unmatched signal transmission quality over long cable runs (up to 100 meters), without the need for an external power supply or additional extenders.
| Supported Resolutions | WUXGA (1920 x 1200 @60Hz), HDTV 1080p, 36-bit Deep Color |
| Compliance | DVI 1.0, HDCP supported |
| Power Supply | 100-240VAC 50/60Hz |
| Operating Temperature | 0° – 50° C |
| Storage Temperature | - 40° ~ 158° F (-40° to 70° C) |
| Relative Humidity | 5% - 85% RH |
| MTBF | 50,000 hours |
| Rack Mounting Option | Standard 19 inch rack-mountable design |
| Rack Mounting Option | Standard 19 inch rack-mountable design |
| PRODUCT DIMENSIONS | 12.21 x 7.09 x 2.76 in. (310 x 180 x 70 mm) |
| Product Weight | 7.7 lbs (3.5 kg) |
| Warranty | Limited Warranty (3-Years) |
