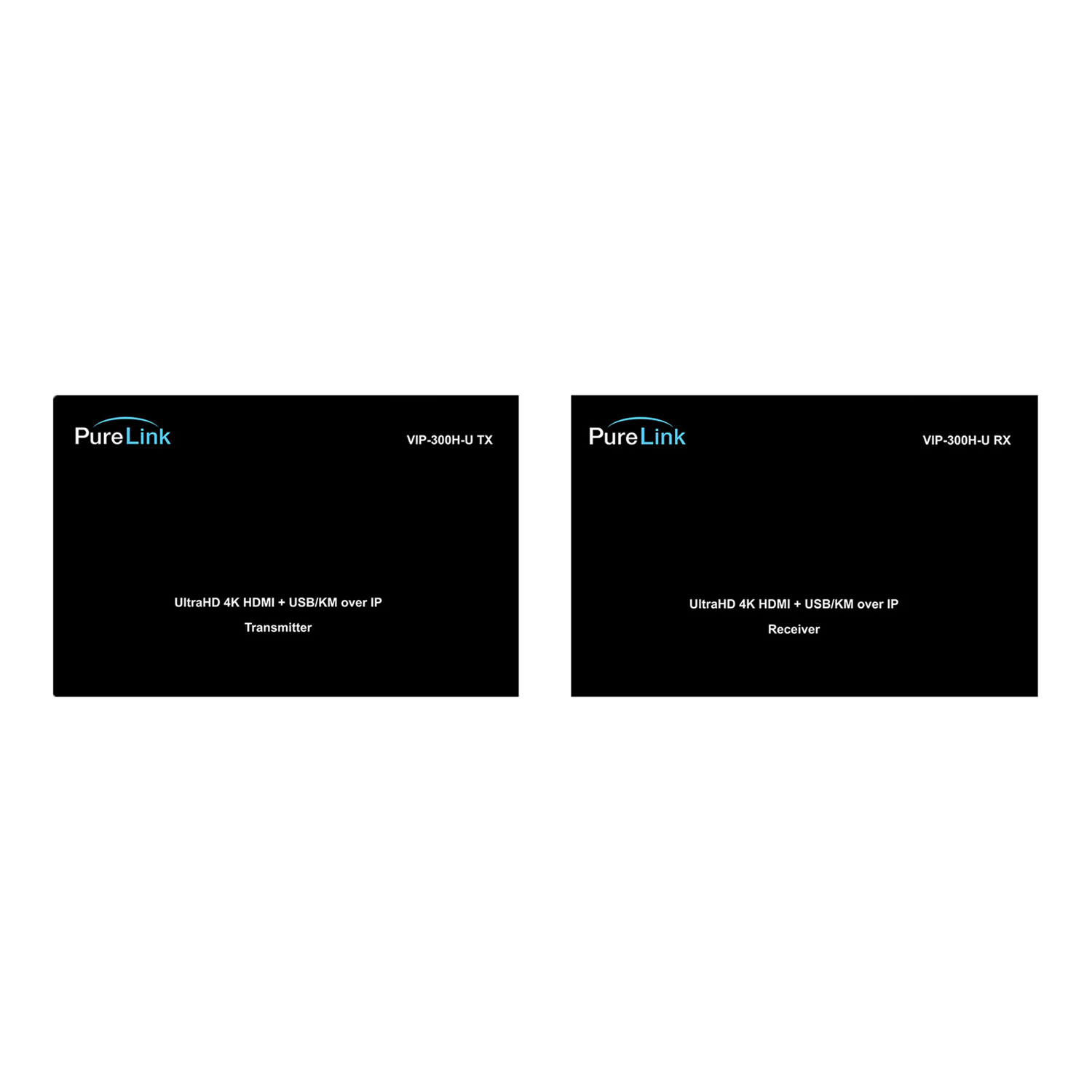

The VIP-300H-U 4K HDMI & USB/KM over IP Extension System provides Ultra HD/4K video, audio, RS-232, IR, and USB signal extension, point to point, with or without a network. The Transmitter can be connected to a Receiver supporting distances up to 390 ft. (120 meters), or through a network switch, effectively doubling the extension distance up to 240 meters. Video over IP extension, when utilized on a network, allows you to convert your extension system at any time to distribution, switching, or matrix routing, a major advantage of Video over IP opposed to other technologies.

Key Features
    • Ultra HD – 4K/30 4:4:4, 4K/60 4:2:0 (converted to 4K30)
    • Use as Fiber or CAT extender (SFP modules optional)
    • Extend up to 120 meters TX direct to RX, or 240 meters TX to network switch to RX
    • PoE (802.3af) powered TX and RX when extending over network
    • Extend 4K30 video, and stereo or multi-channel audio
    • Digital and Analog Audio Insertion/Extraction
    • Extend keyboard, mouse, touchscreen, and more via USB 2.0
    • Extend RS232, and Infrared
    • Utilize built-in API diagnostics of TX, RX, source, and display when extending through network
    • Settable scaler in RX with image rotation options
    • Can be converted with additional Tx/Rx units for distribution, switching, and matrix systems
    • HDCP 2.2 Compliant
Hardware
Output Signal Type(s) Configurable via PureMedia™ universal output cards supporting HDMI, HDBaseT, Fiber, and 3G-SDI
Performance
Supported Distance
  • up to (150m) via CAT – TX direct to RX
  • up to (300m) via CAT – TX to network switch to RX
  • up to 37 miles (60km) via Fiber – TX direct to RX
  • up to 74 miles (120km) via Fiber - TX to network switch to RX
  • Supported Resolutions up to 4K/30 (4:4:4) and 4K/60 (4:2:0) converted to 4K30
    Supported Audio Formats Stereo, Dolby True HD, DTS-HD Master Audio
    Power Supply 5V DC (when extending via Fiber, or no network switch)
    PoE (Power Over Ethernet) 802.3af
    Operating Temperature 32° - 131° F (0° - 55° C)
    Relative Humidity 95% NCH
    Connections
    Input Type(s)
  • TX: (1) HDMI [Type A] w/lock thread
  • RX: (1) CAT [RJ45]; (1) Fiber [SFP]; (2) USB [Type A] - keyboard/mouse only
  • Output Type(s)
  • TX: (1) CAT [RJ45]; (1) Fiber [SFP]; (1) USB [Type B] - keyboard/mouse only

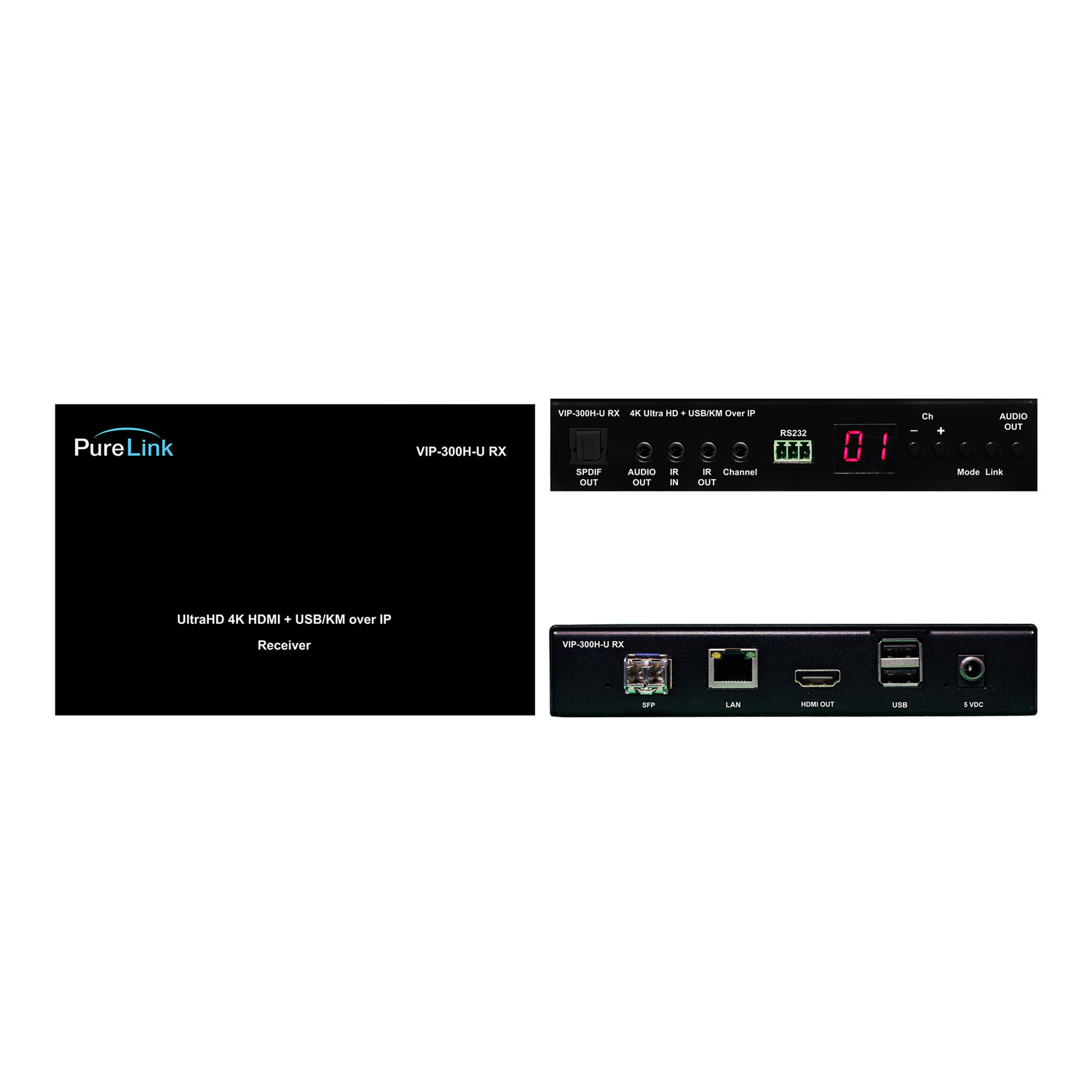

  • RX: (1) HDMI [Ty pe A] w/lock thread
  • Audio Input Type(s)
  • TX: (1) Analog audio [3.5mm stereo], (1) Digital audio SPDIF [Toslink]
  • Audio Output Type(s)
  • RX: (1) Analog audio [3.5mm stereo], (1) Digital audio SPDIF [Toslink]
  • Control Ports
  • TX & RX: (1) RS-232 [3-pin Phoenix], (1) IR [3.5mm]
  • Enclosure
    Product Dimensions
  • TX: 6.69 x 4.53 x 0.98 in. (170 x 115 x 25 mm)
  • RX: 6.69 x 4.53 x 0.98 in. (170 x 115 x 25 mm)
  • Product weight
  • TX: 1.1 lbs.
  • RX: 1.1 lbs.
  • Warranty
    Warranty Limited Warranty (3-Years)
