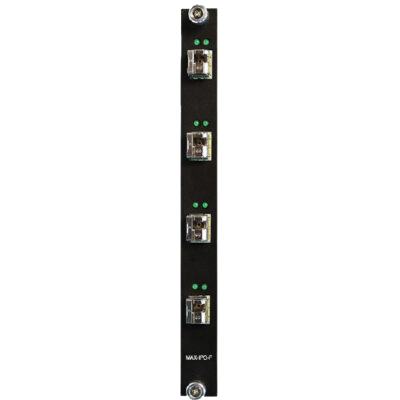

The MAX-IPO-F output card for Media Axis™ provides integration of 10G Video Over IP and standard matrix switching transport, allowing all AV technologies to work together seamlessly.

Media Axis' unique design features and technologies come together to deliver the most adaptable, forward-thinking solution:

Purebred2 copy

PureBred™ Design

A wholly transformative platform that allows baseband signals to be distributed beyond its local wired connections, providing maximum scalability and flexibility

AirLift_logo_1

AirLift™ Cooling System

Lateral air flow/direct cooling of matrix powered by modular blade units each composed of eight fans

omni-flex_logo_1

Omni-Flex™

A fully modular and adaptive design with chassis configurations from 20x20 to 216x216 that combines hot-swappable, field upgradeable components with flexible platform-agnostic functionalities

Motore2.0_1

Motore™ 2.0

Full featured 4K/60 4:4:4 media processing and auto-scaling with frame-rate conversion available at every output

iAxis_logo_1

iAxis™

Detachable, front panel tablet control for wireless/mobile command of the Media Axis' matrix and IP switching capabilities from anywhere at anytime

MAX: , 4K60, 4:4:4, seamless, videowall, multiview, multiviewer, matrix, video switcher, HDBaseT, Fiber, 10G, Video over IP, hybrid switch, VIP, Video over IP , 1G, jpg2000, jpeg2000, mjpeg2000, h.264, h.265, network network switch, 4K, KVM , CAT, Fiber , AV over IP,  QSC module, Crestron module. Creston,Matrix switcher, HDMI,Fiber, HDBaseT, SVoE, Aptovision, Semtech, BlueRiver, AV over IP, Video over IP, Extenders, Encoders, Decoders, 3G-SDI, 12G-SDI, Multiview, Seamless, Video Wall, Media Axis, Cross Platform, 4K30, 4K60
Key Features
    • 4-port 10G IP Fiber  output card for Media Axis™
    • Up to 4K@60Hz (4:4:4)
    • BlueRiver NT+ lossless codec with zero frame latency
    • Combine IP transport with standard matrix switching
    • Allows connectivity for up to 4 MAX-IP-TRX 10G Transceivers
    • BlueRiver NT+ lossless, zero frame latency codec
    • Up to 8×8 Multiview – any signal type of sources to any signal type of display
    • Up to 8×8 Video Wall capability
    • 4K60 up/down scaling with our exclusive Motore tm scaler
    • 4 port slot card fits all MAX frames from 20×20 to 216×216
    • Compatible with 1LC/2LC 10G SFP+ MM or SM module
Technical Specifications
Transport 10G Aptovision BlueRiver lossless codec
Connector Types (4) 8 pin female RJ45 with diagnostic LEDs
Signal Type HDMI 2.0 up to 4K60 4:4:4 HDR Digital Audio Formats Dolby Digital®, Dolby Digital Plus, Dolby® TrueHD, Dolby Atmos®, DTS®, DTS-ES, DTS 96/24, DTS-HD High Res, DTS-HD Master Audio™, LPCM up to 8 channels
Compatible Frames All Media Axis frames
Compatible Extenders MAX-IP-TRX
HDCP Compatible HDCP version 2.2
Supported Twisted Cable Type CAT5/5e, CAT6/6e, CAT6a, CAT7
Supported Twisted Pair Cable Length Up to 330 ft (100m)
