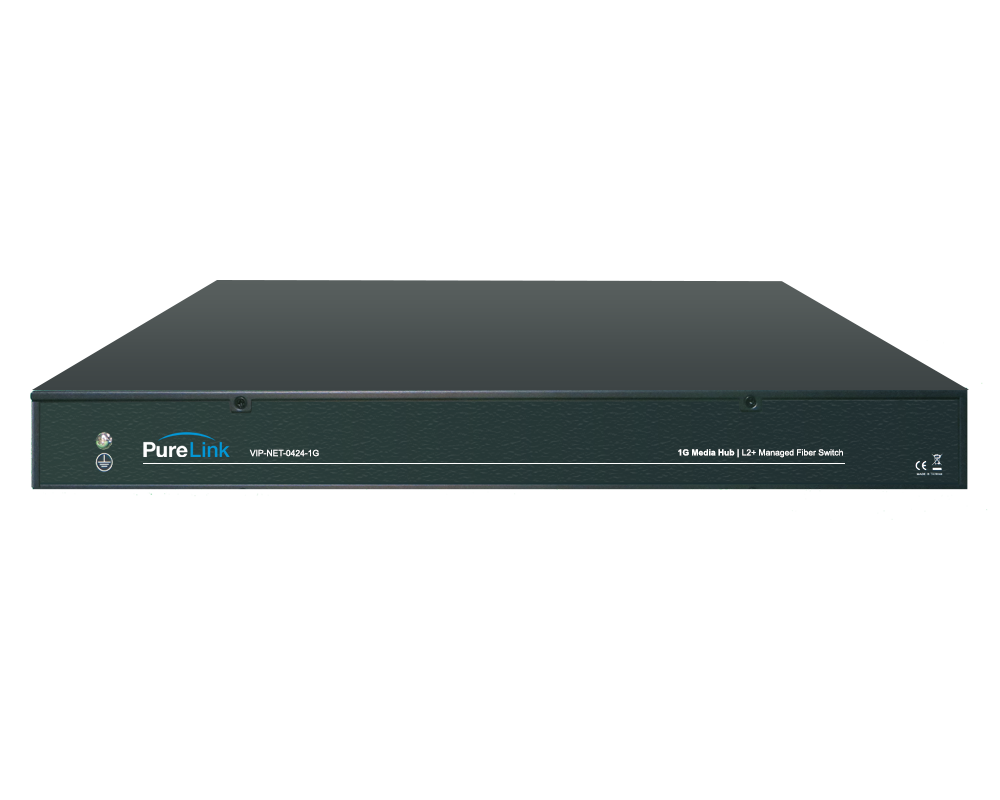

The VIP-NET-0424-1G Media Hub is a next-generation L2+ managed fiber switch purposed-designed for AV over IP applications. The VIP-NET-0424-1G offers a full suite of L2 features including advanced L3 functions such as Static Route that deliver better performance via fiber and copper connections, as well as lower total cost of ownership in Enterprise networks.

The VIP-NET-0424-1G features (20) GbE SFP ports, (4) Combo GbE RJ45/SFP ports, (4) GbE/10G SFP+ ports, and a DB9 Console port with optional AC or DC power.

Key Features
    • Purpose-designed for AV over IP applications; ready for use out of the box
    • 10GbE SFP+ interlinks with LACP
    • Rear-facing connections for improved rack installation
    • Accepts AC or DC source power
    • Rich API and Diagnostics
    • Extensive security features
    • TAA compliant
General Specifications
Switching Capacity 128Gbps
Packet Forwarding Capacity 95.232Mpps
Input Voltage 100V-240V
Operating Temperature -20℃ to 60℃
Relative Humidity 5%–90% (non-condensing)
Product Dimensions 17.4 x 1.7 x 8.3 in.
Product Weight 6.8 lbs.
Warranty
Warranty Limited Warranty (3-Years)
1.0 10-03-2019 Download 345.2 KB
