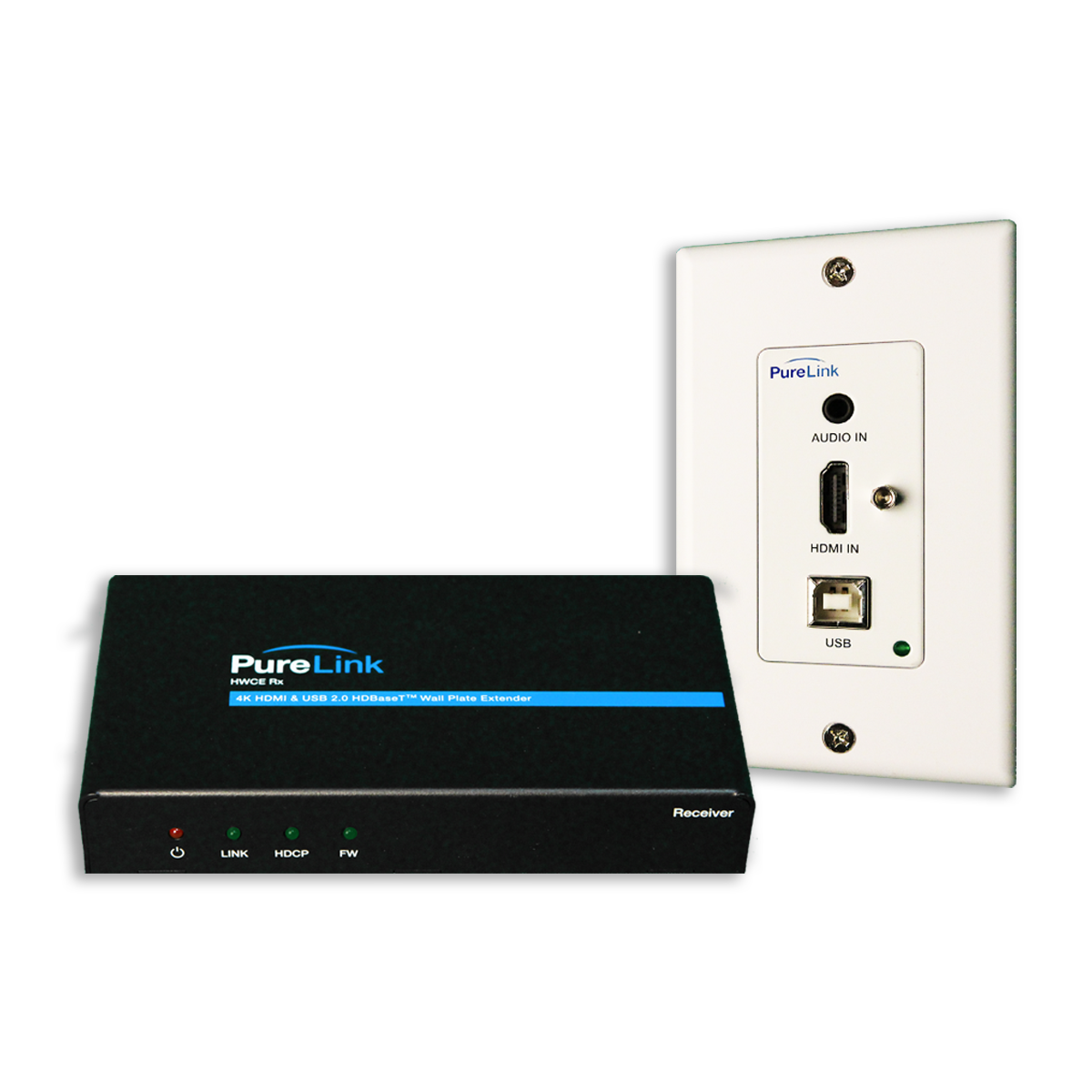

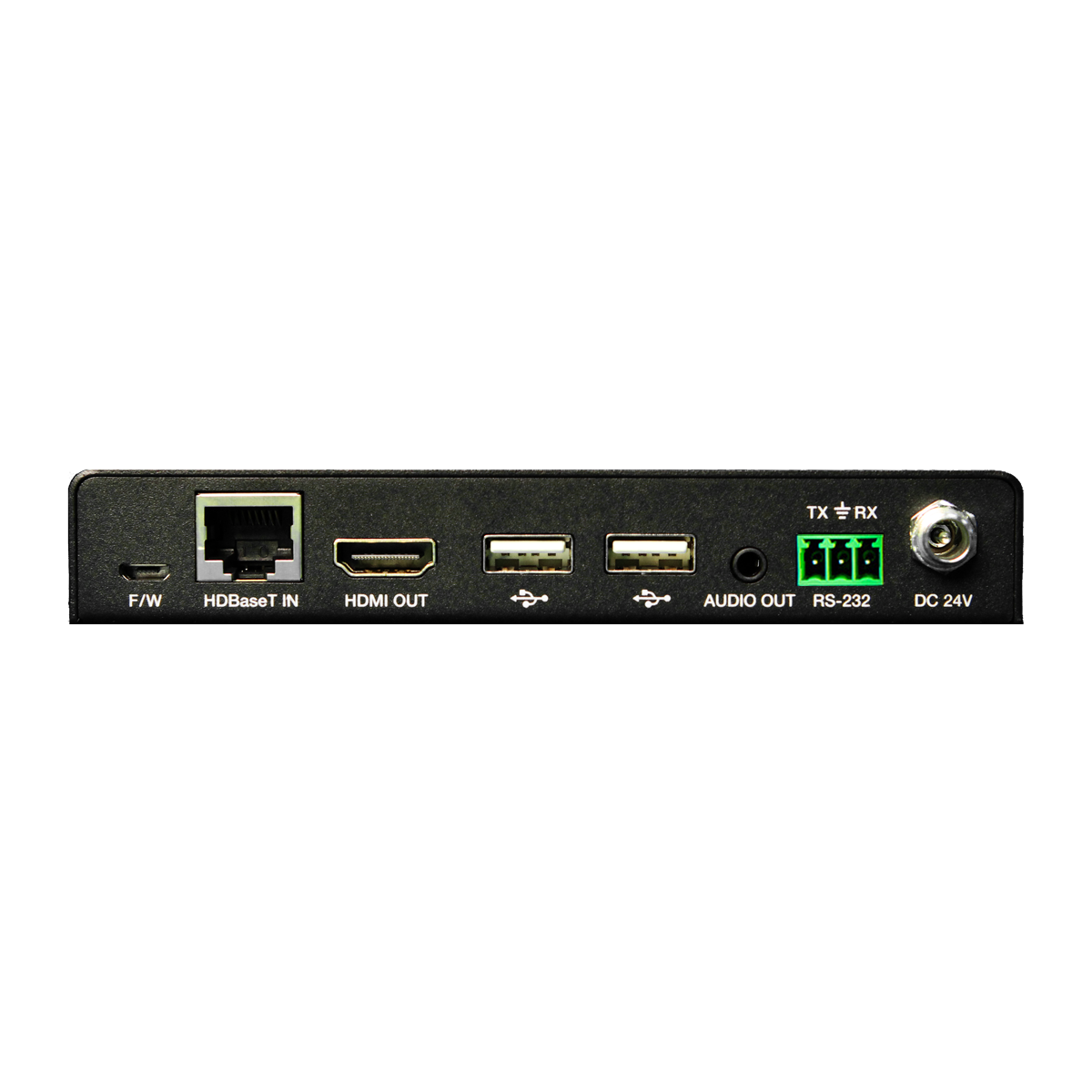

The HDTools™ HWCE Tx/Rx is a single-gang HDMI and USB 2.0 Wall Plate Extension System providing Ultra HD/4K signal transmission over a single CATx cable to distances up to 130 ft. The HWCE can also transmit 3.5mm analog audio independent from the HDMI or USB input source. The HWCE is HDMI 1.4 and HDCP 2.2 compliant and supports CEC, as well as one-way RS-232 pass-through.

Key Features
    • HDMI, 3.5mm audio, and USB 2.0 extension over HDBaseT™
    • Supports resolutions up to 4K@60Hz (4:2:0)/4K@30Hz (4:4:4)
    • Supports HDR (High Dynamic Range) content
    • HDCP 2.2 & HDMI 1.4 compliant
    • Supports distances up to 130 ft. (40m) at Ultra HD/4K and 230 ft. (70m) at 1080p
    • Independent analog audio signal transmission
    • RS-232 & CEC pass-through
    • Remote power from receiver to transmitter

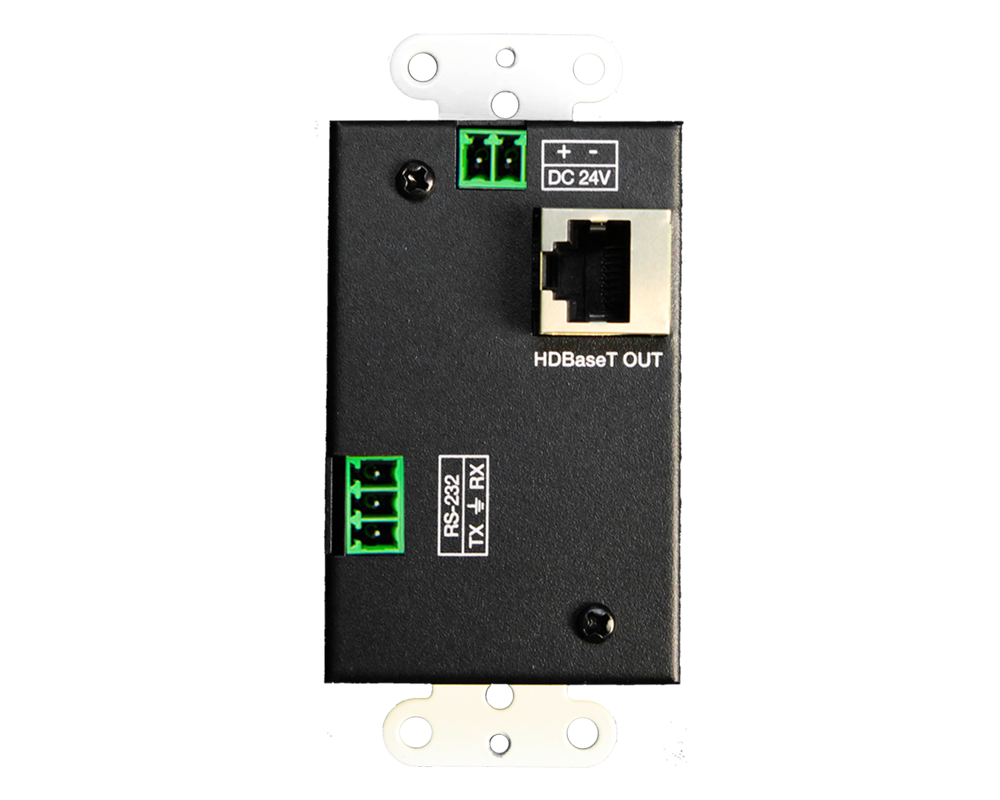

    • Standard US 1-Gang Decora format (Tx)
Performance
Supported Distance up to 130 ft. (40m) at Ultra HD/4K and 230 ft. (70m) at 1080p
Supported Resolutions 4K@50/60Hz (4:2:0), 4K@30Hz (4:4:4), 1080p@120Hz, 1080p 3D@60Hz
Compliance HDMI 1.4, HDCP 2.2, USB 2.0
Data Transfer Rate 18 Gbps
Video Bandwidth 10.2 Gbps
RS-232 (1) RS-232 [3-pin phoenix]
Power Consumption 9 Watts
Power Supply DC 24V/1A (US/EU standards, CE/FCC/UL certified) [2-pin phoenix]
Operating Temperature 32° ~ 117° F (0° to 47° C)
Storage Temperature - 40° ~ 158° F (-40° to 70° C)
Relative Humidity 0 ~ 90% non-condensing
MTBF 50,000 hours
Rack Mounting Option Standard 19 inch rack-mountable design
Enclosure
Rack Mounting Option Standard 19 inch rack-mountable design
Product Dimensions TX: 4.0 x 1.8x 1.2 in. | RX: 5.6 x 2.9 x 0.9 in.
Product Weight TX: 0.36 lbs. | RX: 0.44 lbs.
PRODUCT DIMENSIONS 12.21 x 7.09 x 2.76 in. (310 x 180 x 70 mm)
Product Weight 7.7 lbs (3.5 kg)
Warranty
Warranty Limited Warranty (3-Years)
