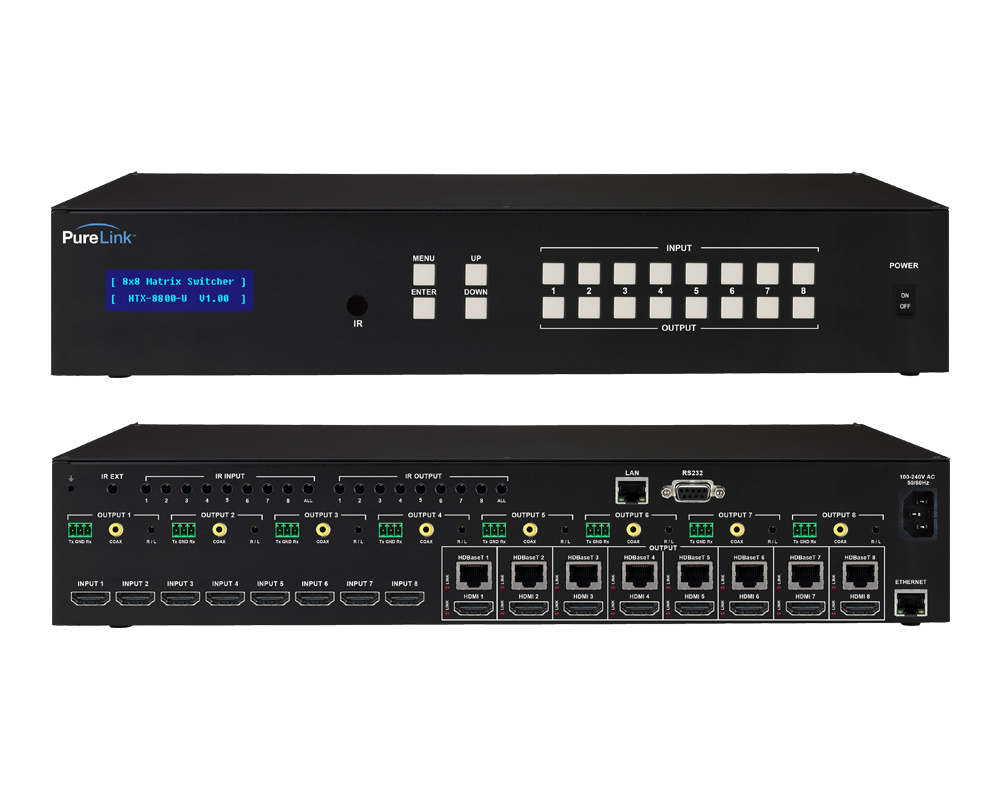

Perfectly suited for a control room, board room, or family room, the HTX-8800-U performs world-class HDMI to HDBaseT™ matrix switching with Ultra HD/4K, HDCP v2.2 and PoE support. The HTX-8800-U provides independent switching of (8) Ultra HD/4K sources to (8) remote destinations via HDBaseT™ (with HTX receivers, sold separately) and (8) local destinations via HDMI. It also provides convenient third-party control system compatibility via TCP/IP, RS-232 or IR, comprehensive EDID management, and a compact 2RU, rack-mountable chassis for easy installation.

Key Features
    • (8) HDMI inputs, (8) HDBaseT™ outputs, and (8) mirrored HDMI outputs
    • HDCP 2.2 compliant
    • Supports resolutions up to 4K@30Hz
    • Supports distances up to to 330 ft. (100 m) via CATx
    • Audio de-embedding for each output via (1) RCA analog stereo or (1) RCA coaxial digital output
    • HDBaseT™ 5-play Technology – Ultra HD/4K video, HD multichannel audio, bi-directional control, Ethernet switching, and PoE
    • Auto EDID management (EDID library and EDID emulation)
    • Full 3D compatibility (up to 1080p)
    • Supports Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio plus LPCM (up to 192kHz)
    • Ideal for multi-zone applications to distribute A/V with control
    • DVI and DisplayPort support via HDMI ports with adapters (sold separately)
    • Includes IR remote for basic matrix switching
    • Front panel LCD display for easy menu navigation and status check
    • Compact 2RU rack-mountable chassis
    • HDMI v1.4b uncompressed video/audio up to 10.2 Gbps
    • Integrated Ethernet switch serves LAN to all connected zones
    • HDBaseT outputs directly drive HTX extender receivers (sold separately)
    • TCP/IP, RS-232, IR and front panel control
Hardware
Cabling HDMI, CAT5/6a
Performance
Supported Distance up to 330 ft (100 m)
Supported Resolutions up to 4K@30Hz
Video Bandwidth 10.2 Gbps
Compliance HDMI 1.4, HDCP 2.2
RS-232 Available
LAN Available
Power Supply 100-240VAC 50/60Hz
Operating Temperature 32° ~ 117° F (0° to 47° C)
Storage Temperature - 40° ~ 158° F (-40° to 70° C)
Relative Humidity 0 ~ 90% non-condensing
MTBF 50,000 hours
Rack Mounting Option Standard 19 inch rack-mountable design
Connections
Input Type(s) (8) HDMI, (10) IR In, (1) RS-232, (1) RJ-45 (Control)
Output Type(s) (8) HDBaseT, (9) IR Out, (8) HDMI, (8) Coaxial Audio Out, (8) L/R Audio Out
Enclosure
Enclosure Type All metal, black powder coat finish
Rack Mounting Option Standard 19 inch rack-mountable design
Product Dimensions 17.3'' x 14.3'' x 3.5
Product Weight 14.8 lbs.
Warranty
Warranty Limited Warranty (3-Years)
