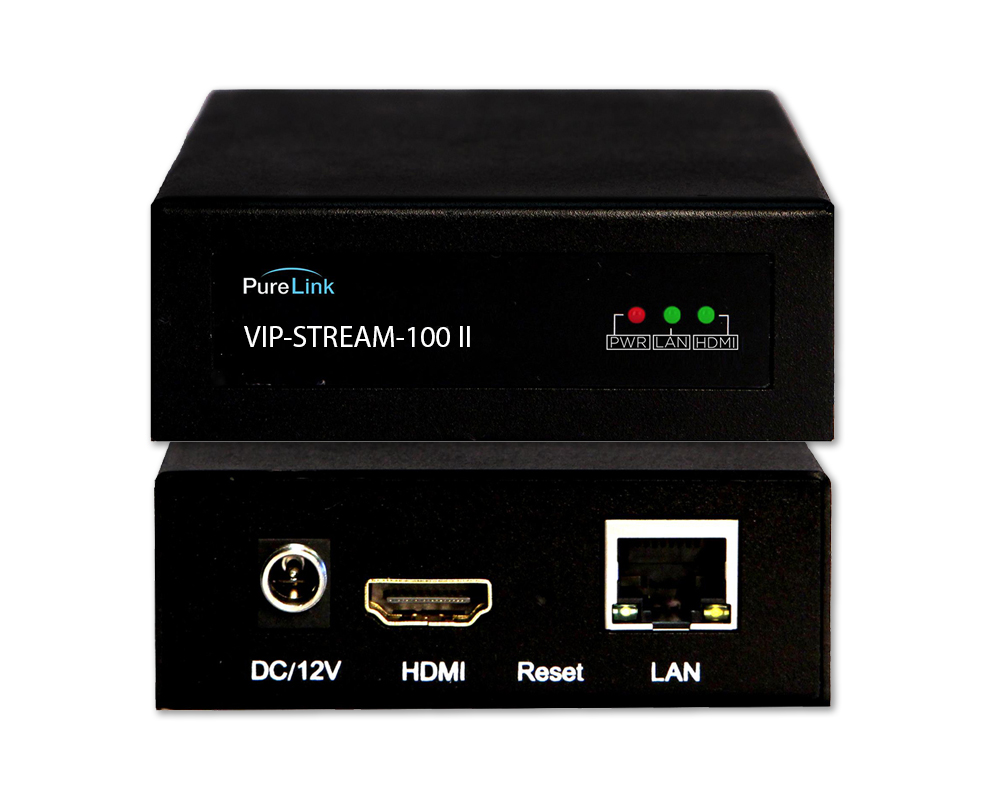

The VIP-STREAM-100 II Full HD HDMI Encoder System with Image Capture provides Full HD video and audio distribution over IP networks using the H.264 video compression standard. The VIP-STREAM-100 II can be used to extend signals up to 330 ft. (100m) from a network switch and distribute A/V sources to any software based decoder on the network.

Key Features
    • Extend/distribute up to Full HD [email protected] video
    • Provides image capture, confidence monitoring of output
    • Supports RTMPS streaming
    • Industry standard H.264 codec for low-bandwidth AV over IP
    • Decode using H.264 compliant software such as VLC
    • Built-in web-page for easy configuration and setup
    • View complete diagnostics on front panel LED display
    • Supports MPEG1 Audio Layer 2
    • CBR/VBR network bit-rate control (16Kbps~16Mbps)
    • HDCP v1.3 compliant
Hardware

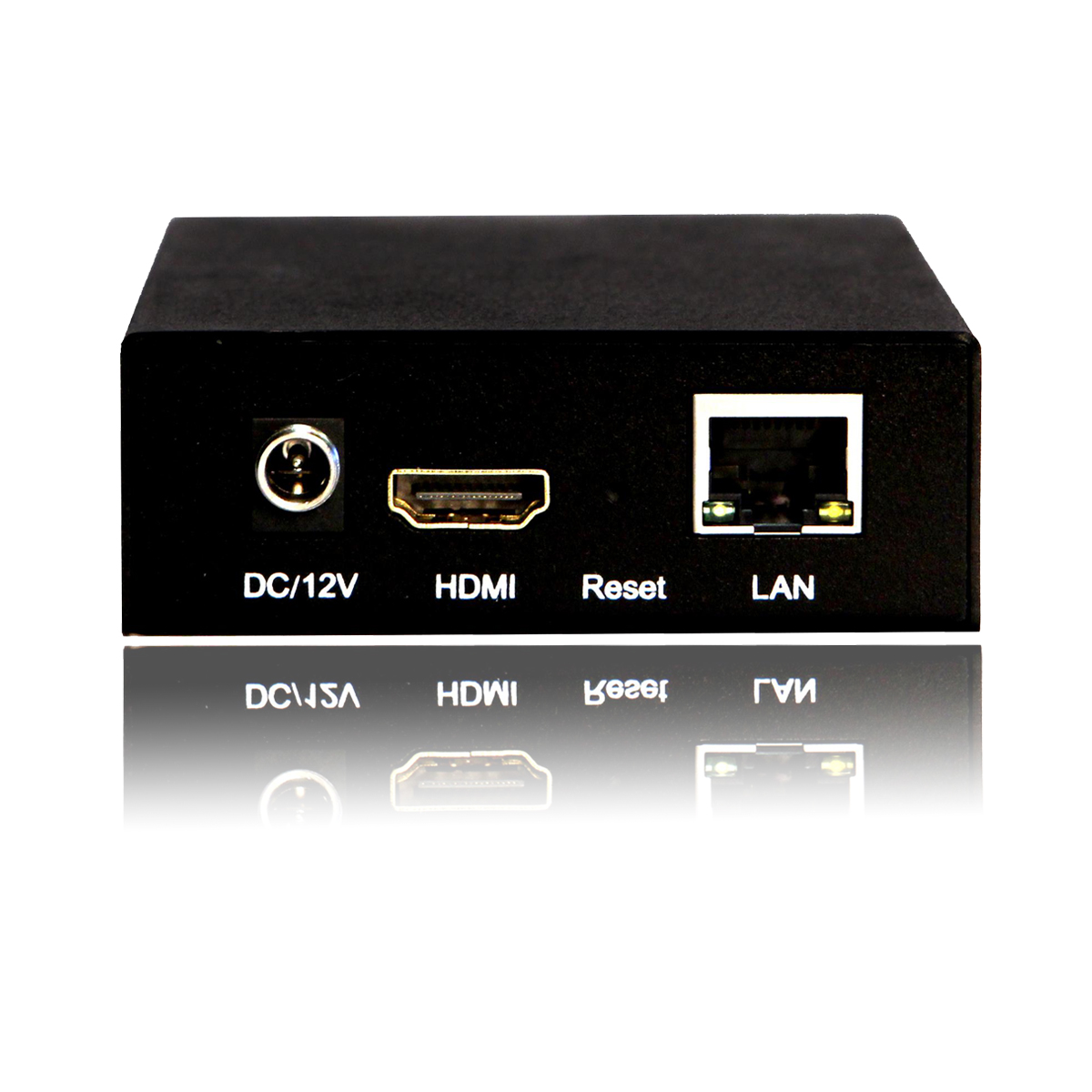

Input Signal Type(s) 1) HDMI Female
Output Signal Type(s) (1) CATx
Performance
Supported Distance 330 ft. (100m)
Supported Resolutions 480i to [email protected], 1920x1200
Power Supply 12V DC
Operating Temperature 32 to 131 F
Storage Temperature -4 to -185 F
Relative Humidity 95% NCH
Enclosure
Product Dimensions 4.0 (L) x 3.0 (W) x 1.1 (H) in.
Product weight 0.34 lbs.
Warranty
Warranty Limited Warranty (3-Years)

FAQ

AV OVER IP – MADE SIMPLE

PureLink’s AV over IP Solutions have always been about simplicity of installation/operation, alongside rich features that allow you to achieve your goals.

  • How Does AV over IP work?

    In simple terms, AV over IP is a technology to transport audio and video over a network.  The encoder, also known as a transmitterIt can be one source to one display, or many sources to many displays.  Along with audio and video, an AV over IP system commonly provides extension/distribution of IR, RS-232, USB, and LAN, allowing KVM applications, control of sources/displays, and extension of the network.

    AV over IP offers many advantages over other technologies:

    • Distribute AV signals over common network systems
    • Transport over category or fiber cable, allowing significant extension distances
    • Easily acquire diagnostic information over the network of the AV over IP system
    • Solve different transport needs with the same equipment:
      • Extension
      • Distribution
      • Switching
      • Matrixing
    • Stream to large audiences such as Facebook, YouTube, etc.
  • What connectivity solutions does AV over IP provide?

    AV over IP encoders and decoders can be configured in many different ways to solve almost any challenge.

    • Extension one to one
    • Distribution one to many
    • Switching many to one
    • Matrixing many to many
    • Streaming  many to huge audiences around the world such as Facebook, YouTube, etc.

    Due to this unique ability of AV over IP technology to create multiple ‘devices’ with encoders and decoders, you have flexibility not found in other technologies.  For example, it would not be possible with HDBaseT to purchase an extender system, then add to it to create a matrix system, like you can with many AV over IP products.

    Contact us now to help you get started on your AV over IP project, or just ask us general questions.  Click on our Live Chat icon in the bottom right of this page, or call us at 201-488-3232, or email us at [email protected]

  • What applications is AV over IP appropriate for?

    AV over IP technology has become the preferred technology in any application or market, because networks are prevalent in all of them, from home entertainment to large building distribution, to cross continent transport.

    • Home entertainment
    • Restaurants, sports bars
    • Bowling alleys
    • Fitness centers
    • Digital Signage distribution
    • Outdoor displays
    • Classroom KVM systems
    • Kiosks
    • Retail
    • Medical
    • Data Visualization
    • Presentation spaces
    • Conferencing / Huddle spaces
    • Corporate
    • Government / Military (see our TAA compliant AV over IP products)
    • And more….

    Contact us now to help you get started on your AV over IP project, or just ask us general questions.  Click on our Live Chat icon in the bottom right of this page, or call us at 201-488-3232, or email us at [email protected]

  • What kind of network switch is required?

    AV over IP requirements for network switches are few and simple, and most network switches come equipped with the functionality needed.  Please see the list below:

    • 1G systems (VIP-100, VIP-200, VIP-300, VIP-T300)
    • Jumbo Frame =>8K
    • IGMP Snooping V2
    • IGMP Querier, preferred in larger systems
    • PoE 802.3af preferred but not required (VIP-100, VIP-300, VIP-T300)
  • How to Buy?

    Contact us now to help you get started on your Av over IP project, or just ask us general questions.  Click on our Live Chat icon in the bottom right of this page, or call us at 201-488-3232, or email us at [email protected]
