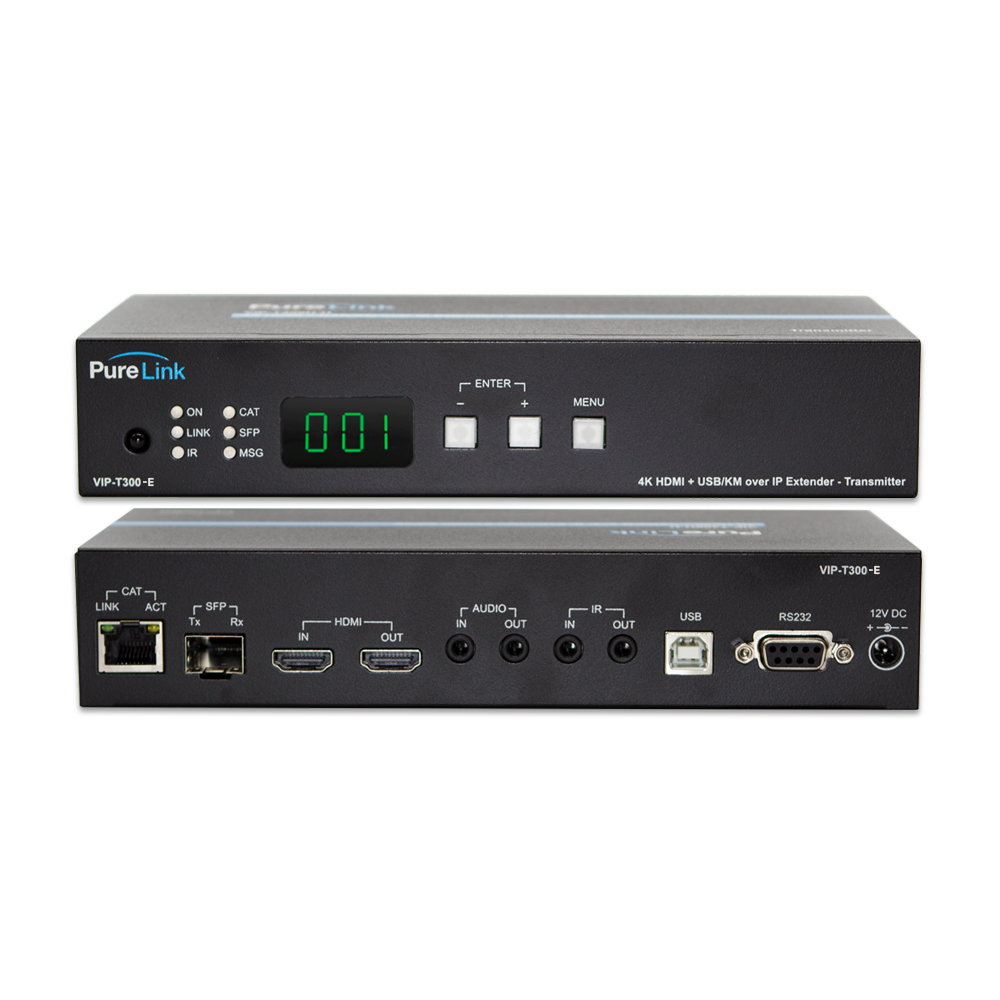

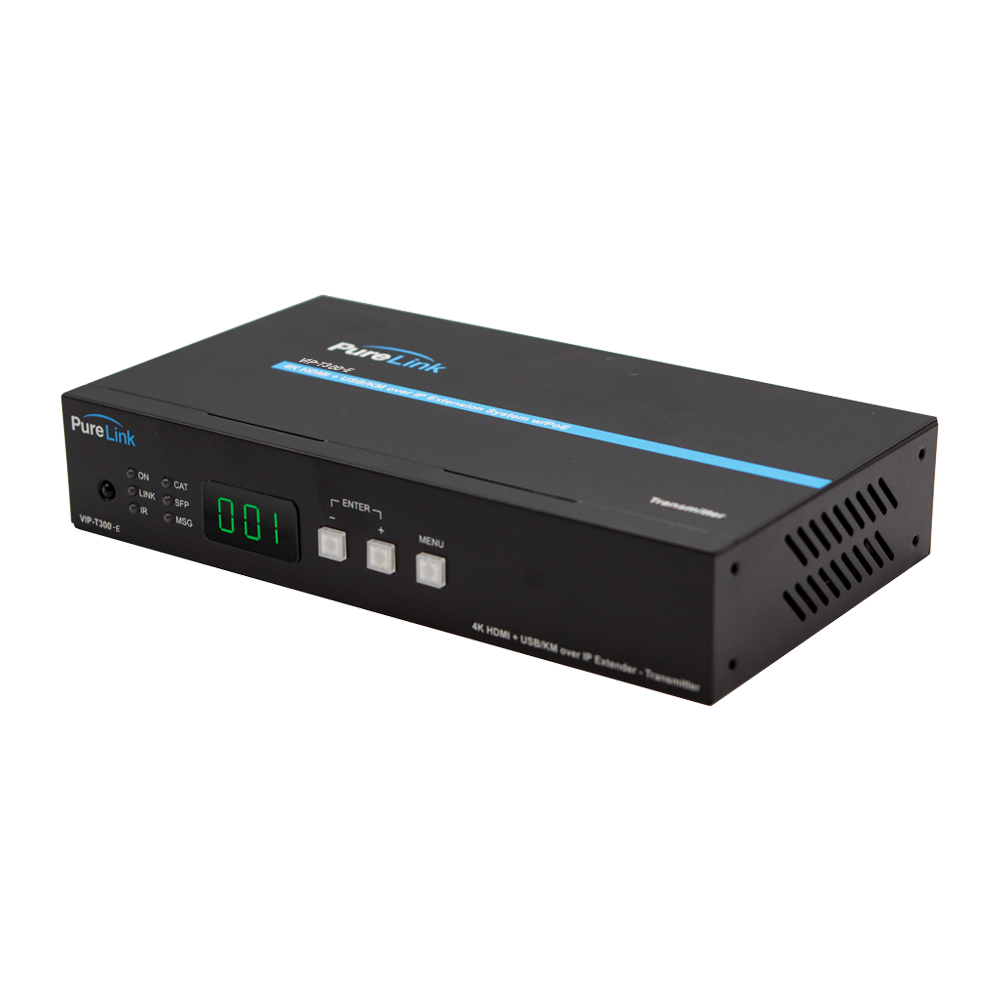

The VIP-T300-E 4K HDMI & USB/KM over IP Encoder provides UltraHD/4K video, audio, RS-232, IR, and USB signal transport over IP networks. The VIP-T300-E can be used as a point-to-point extension system supporting distances up to 300 meters, as well as layered distribution, switching, and matrix switching systems using multiple control options including PureLink’s VPX IP Video Management Software.


Control Plugin:

PureStream Q-SYS plugin for intuitive control of VIP-T300 with configuration, connection settings, device operation, RS-232, and video wall processing.

Key Features
    • Ultra-low latency (<17mS)
    • Median data rate 280 – 320 Mbps;
    • Fiber or CAT transport – 1G port
    • Extend signals up to 300 m. using a network switch
    • HDCP 2.2 compliant
    • Comprehensive diagnostics via API – device discovery, signal data, and EDID
    • Supports instant switching
    • Multiple control interfaces – built-in web interface, front panel buttons,  IR remote control, VPX Management Software, and 3rd party control development via API
    • Built-in video wall processing (up to 8×8)
    • Built-in scaler on the receiver (decoder)
    • Image rotation 0, 90, 180 degrees
    • IR and RS232 extension
    • TCP/IP to RS232 conversion
    • USB 2.0 for keyboard/mouse, camera, or hard drive
    • HDMI loop-out on TX (encoder)
    • PoE 802.3af (under 5W)
    • Supports Dolby, DTS, and LPCM audio
    • Matrix switching systems up to 999 sources and 65K displays
    • TAA compliant
    • Rack-mount option available
Input Signal Type(s) (1) HDMI Type-A
(1) 3.5mm Stereo Phone Jack
(1) USB 2.0 Type B RS-232 (DB9 Female)
Ethernet (RJ45)
Fiber SFP (1G)
Supported Distance 150M (up to 300M using Network Switch)
Supported Resolutions Up to 4K UHD 4:4:4 @ 30HZ
Compliance HDCP 2.2
Supported Audio Formats Up to 7.1 LPCM 192Khz
Dolby True HD
DTS-HD Master Audio
Power Consumption 600mA (Typical)
Power Supply DC 12V 1500mA
PoE (Power Over Ethernet) 802.3af
Product Dimensions 8.2” x 4.8” x 1.5”
Shipping Weight 1.5 lbs.
Warranty Limited Warranty (3-Years)
