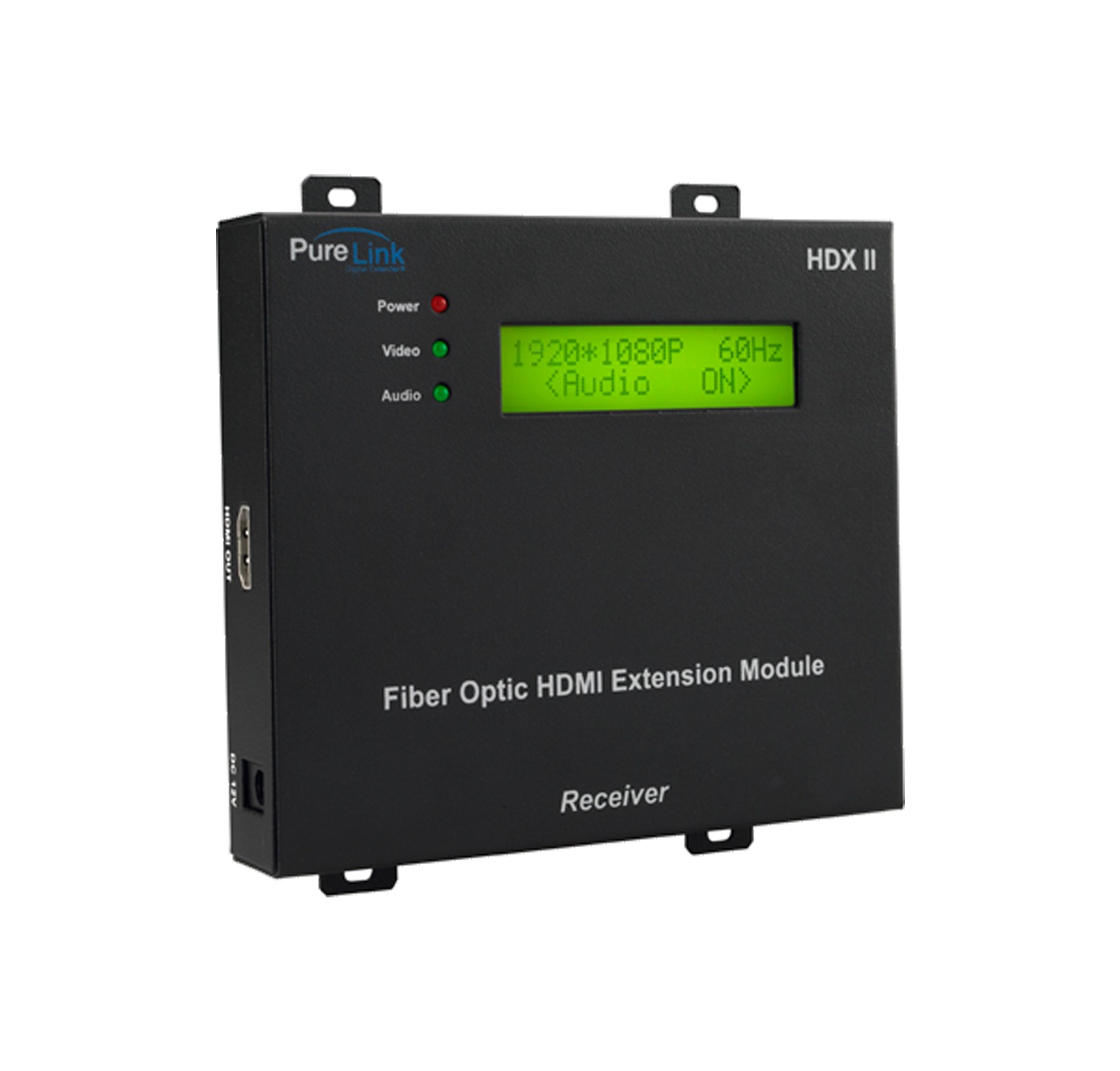

The HDX II Tx/Rx HDMI over Fiber Extension System provides long distance transmission of Full HD/1080p signals to distances up to 5,000 ft. The HDX II features on-screen diagnostics at each end via the built-in LED display, as well as powerful Auto-EDID management allowing reliable signal extension with full HDCP compliance.

Key Features
    • Supports resolutions up to 1080p@60Hz
    • Supports distances up to 5000 ft.
    • HDCP compliant
    • Built-in signal repeater for lossless, long-distance transmission
    • Auto-EDID management
    • Monitor system status at each end via LCD panel
Hardware
Input Signal Type(s) LC Receptacles with 4 cores
Output Signal Type(s) HDMI 19 Pin Female
Performance
Supported Distance VGA ~WUXGA(up to 1920 x 1200 @ 60Hz) , 480i ~ 1080p
Video Bandwidth 10.2 Gbps
Compliance HDMI 1.3, HDCP 1.3
Power Consumption 10W Max
Power Supply DC +12V
Operating Temperature 32° ~ 117° F (0° to 47° C)
Storage Temperature - 40° ~ 158° F (-40° to 70° C)
Relative Humidity 0 ~ 90% non-condensing
MTBF 50,000 hours
Rack Mounting Option -
Enclosure
Rack Mounting Option -
Product Dimensions 5.36x4.65x0.99 inches (136x118x25 mm)
Product Weight 1.1Lbs(0.48Kg)
Warranty
Warranty Limited Warranty (3-Years)
