VGA/DVI to DVI Format Converter with Scaling – Full HD
This product has been discontinued.
- Converts Analog RGB and YPbPr Signals to DVI/HDMI
- Custom Up-conversion and Down-conversion
- Supports VGA to WUXGA resolutions
- Auto EDID management
- HDCP compliant

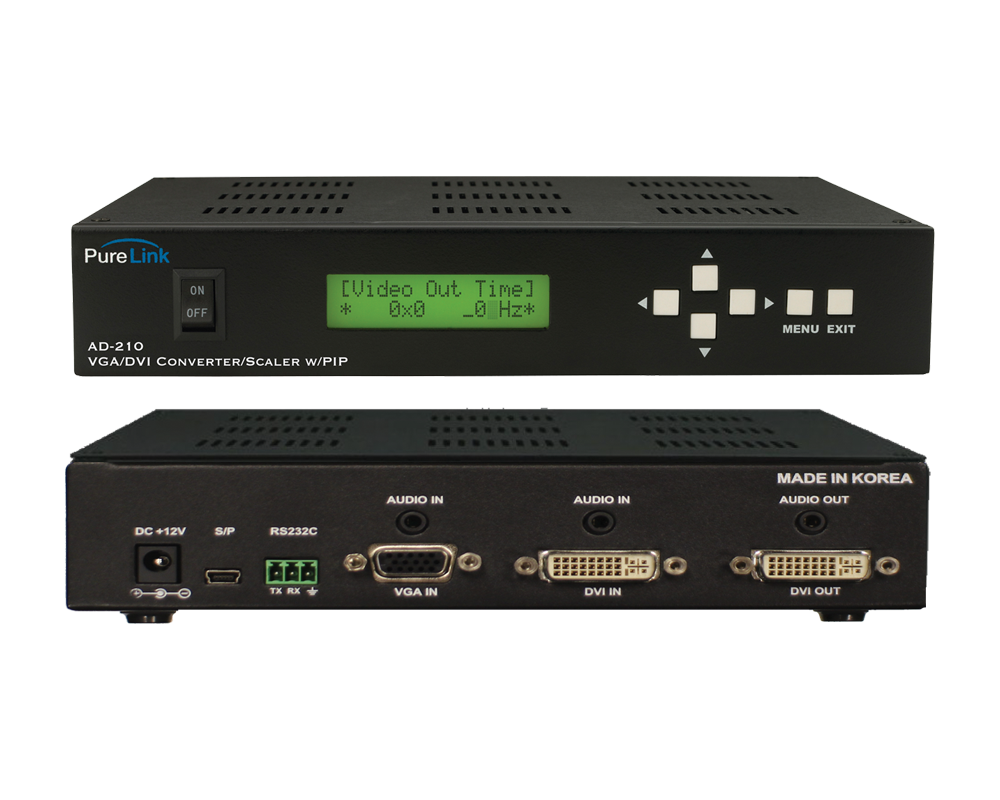

The AD-210 provides high performance analog to DVI signal conversion, as well as up/downscaling of DVI inputs. With support for VGA resolutions up to WUXGA@60/75/85Hz, the AD-210 delivers fast, high bandwidth HD signal transmission and offers seamless integration in legacy systems.
- Converts Analog RGB and YPbPr Signals to DVI/HDMI
- Custom Up-conversion and Down-conversion
- Supports VGA to WUXGA resolutions
- Auto EDID management
- HDCP compliant
- LCD Display for easy configuration
Performance
| Supported Resolutions | <li>30 to 95kHz (Hf), 60 to 85Hz (Vf)</li> <li>VGA - WUXGA (RGB/YPbPr, PC)</li> <li>480p - 1080p (DTV)</li> |
| Power Consumption | 9 Watts |
| Power Supply | DC, 12V |
Connections
| Input Type(s) | Analog RGB, YpbPr, DVI (TMDS) |
| Output Type(s) | DVI (TMDS) |
Enclosure
| Product Dimensions | 7.4 x 6.7 x 1.7 in. |
| Product weight | 2.2 lbs. |
Warranty
| Warranty | Limited Warranty (3-Years) |
