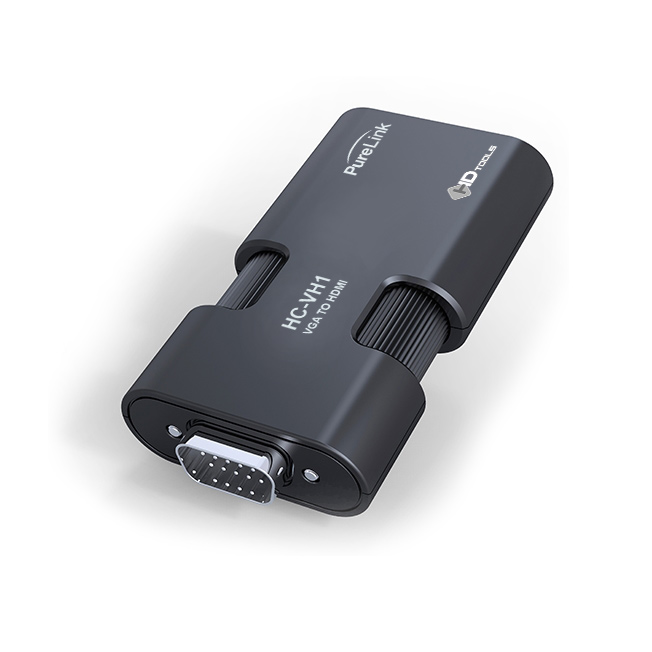

The HDTools™ HC-VH1 converts PC/laptop VGA signals up to Full HD (1920x1080p) to high definition HDMI with stereo audio, providing output resolutions up to Full HD (1920x1080p). The HC-VH1 also features embedding of audio into the HDMI signal, maintaining seamless VGA to HDMI conversion.

Key Features
    • Converts VGA signals to high definition HDMI with stereo audio
    • Supports output resolutions up to [email protected]
    • Embeds audio signals into the HDMI signal
    • Maximum data transfer rate up to 6.75Gbps for quick error-free transmission
    • Can be powered directly from the VGA source
Hardware
Output Signal Type(s) Configurable via PureMedia™ universal output cards supporting HDMI, HDBaseT, Fiber, and 3G-SDI
Performance
Video Bandwidth 1.65 Gbps
Power Consumption 60 watts (max)
Power Supply 12V DC / 2a
Input Video Signal 1.2 volts p-p
Input DDC Signal 5 volts p-p (TTL)
Single Link Rang 1080p/[email protected]
Connections
DVI-D Connector Type A 29 pin
Warranty
Warranty Limited Warranty (3-Years)
1.0 01-31-2019 Download 224.5 KB
1.0 08-05-2020 Download 213.3 KB
